Gaming Monitor
M omentum 3000
EN
User manual
Customer care and warranty
Troubleshooting and FAQs
Register your product and get support at www.philips.com/welcome
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
migliori offerte di Monitor
Philips 27M1N3500LS
o
27M1N3500L
27M1N3500LS
1
21
25
Advertisement
Table of Contents
Related Manuals for Philips Momentum 3000 27M1N3500L
Summary of Contents for Philips Momentum 3000 27M1N3500L

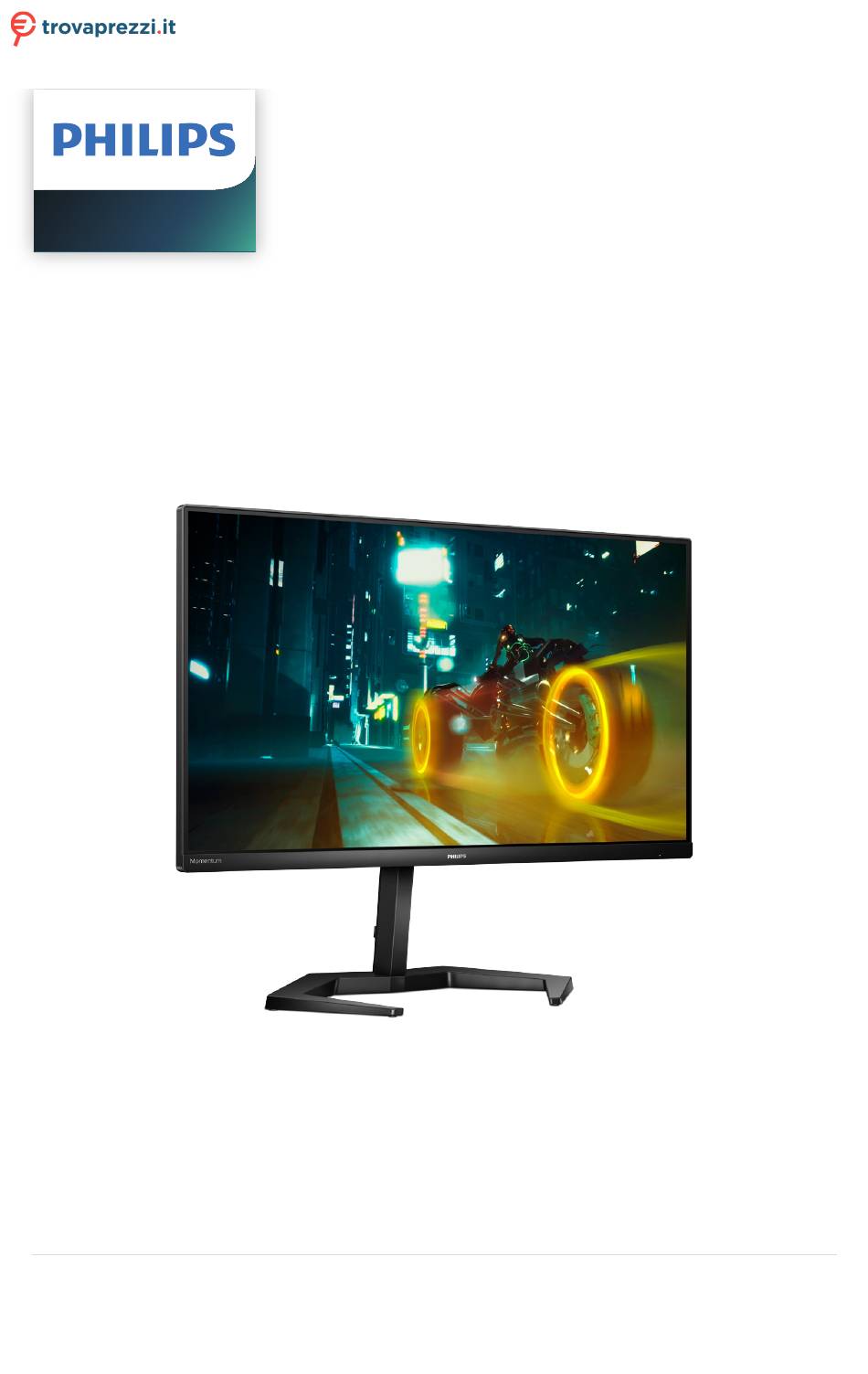

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Philips 27M1N3500LS cerca il tuo prodotto tra le migliori offerte di Monitor Gaming Monitor M omentum 3000 27M1N3500L 27M1N3500LS User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
6.1 Resolution & Preset Modes ..19 7. Power Management ....20 8. Customer care and warranty .. 21 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..... 21 8.2 Customer Care & Warranty ..24 9. Troubleshooting & FAQs ..25 9.1 Troubleshooting ...... -
Page 3: Important
DC power cord for normal operation. 1.1 Safety precautions and • Please use approved power cord maintenance provided by Philips all the time. If your power cord is missing, please Warnings contact with your local service Use of controls, adjustments or center. - Page 4 degrees. If the -5 degree downward • Oil-based cleaning solutions may tilt angle maximum is exceeded, the damage the plastic parts and void monitor damage will not be covered the warranty. under warranty. • Unplug the monitor if you are not • Do not knock or drop the monitor going to use it for an extensive during operation or transportation.
-
Page 5: Notational Descriptions
Important information for Burn-in/ Note Ghost image Consult a service technician if the monitor does not operate normally, or • Always activate a moving screen you are not sure what procedure to take saver program when you leave when the operating instructions given your monitor unattended. -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end- of-life management primarily entails This marking on the product or on participation in national take-back... -
Page 7: Setting Up The Monitor
(1) Gently attach the base to the 27M1N3500L 27M1N3500LS stand. Quick start Register your product and get support at www.philips.com/welcome (2) Use your fingers to tighten the screw located at the bottom of the base. *Earphone-Hang (3) Use a screwdriver to tighten the... - Page 8 Connecting to your PC 27M1N3500LS 27M1N3500L Fast Charger Earphone-Hang USB hub Kensington anti-theft lock USB A-B HDMI 1 input Earphone-Hang HDMI 2 input DisplayPort input Audio out AC power input Connect to PC 1. Connect the power cord to the back Kensington anti-theft lock of the monitor firmly.
-
Page 9: Operating The Monitor
What is On-Screen Display (OSD)? Description of the control buttons On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window. - Page 10 Resolution notification Main menu Sub menu Game Setting Adaptive Sync This monitor is designed for optimal MPRT MPRT Level performance at its native resolution, Crosshair Low Input Lag 2560 x 1440. When the monitor is SmartResponse powered on at a different resolution, an SmartFrame Size (1,2,3,4,5,6,7) Brightness (0~100)
-
Page 11: Remove The Base Assembly For Vesa Mounting
Height adjustment (27M1N3500L) 2.3 Remove the Base Assembly for VESA Mounting Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 1. Place the monitor face down on 130mm soft and smooth surface taking care to avoid scratching or damaging the screen. - Page 12 Note This monitor accepts a 100mm x 100mm VESA-Compliant mounting interface. VESA Mounting Screw M4. Always contact manufacturer for wall-mount installation. 100mm 100mm 0° 90° -5° * Display design may differ from those illustrated. Warning • To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
-
Page 13: Image Optimization
How does it work? SmartImage is an exclusive, leading edge Philips technology that analyzes the content displayed on your screen. Based on a scenario you select, SmartImage dynamically enhances the contrast, color saturation and sharpness • FPS: For playing FPS (First Person... - Page 14 HDR movie. Deliver better over time. Developed for wellbeing, contrast and brightness for more Philips LowBlue Mode setting uses realistic and immerse viewing a smart software technology to experience. reduce harmful shortwave blue • HDR Photo: Enhancing red, green,...
-
Page 15: Smartcontrast
3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds. -
Page 16: Adaptive Sync
4� Adaptive Sync • AMD Radeon R9 285 • AMD Radeon R7 260X • AMD Radeon R7 260 ■ Processor A-Series Desktop and Adaptive Sync Mobility APUs • AMD A10-7890K PC gaming has long been an imperfect • AMD A10-7870K experience because GPUs and monitors update at different rates. -
Page 17: Hdr
5� HDR HDR Settings in Windows10 system. Steps 1. Right click on the desktop, enter to Display settings. 2. Select the display/monitor. 3. Select an HDR-capable display under Rearrange your displays. 4. Select Windows HD Color settings. 5. Adjust Brightness for SDR content. Note Windows10 edition is required;... -
Page 18: Technical Specifications
6� Technical Specifications Picture/Display Monitor Panel Type VA Technology Backlight W-LED Panel Size 27" W (68.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2331 (H) mm x 0.2331 (V) mm Contrast Ratio (typ.) 4000:1 Optimum Resolution 2560 x 1440 @ 144 Hz Viewing Angle 178°... - Page 19 Height adjustment 130 mm (27M1N3500L) Pivot -90 / +90 degree (27M1N3500L) Power AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at 100VAC , 60Hz 115VAC , 60Hz 230VAC, 50Hz Normal Operation 33.4 W (typ.) 33.0 W (typ.) 32.5 W (typ.) Sleep (Standby mode) 0.5 W...
- Page 20 500 to 1060hPa (Non-operation) Environmental and energy ROHS Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color Black Finish Texture Note This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 21: Resolution & Preset Modes
For best output performance, please always ensure that your graphic card Recommended Resolution is capable of achieving the maximum 2560 x 1440 @ 60 Hz resolution and refresh rate of this Philips display. H. freq Resolution V. freq (Hz) (kHz) 31.47 720 x 400 70.00... -
Page 22: Power Management
7� Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 23: Customer Care And Warranty
Pixel Defect Policy single black pixel. Other combinations of lit and dark sub pixels appear as Philips strives to deliver the highest single pixels of other colors. quality products. We use some of the industry's most advanced... - Page 24 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or panel in a Philips flat panel monitor sub pixels that are always dark or 'off' . must have pixel or sub pixel defects That is, a dark dot is a sub-pixel that...
- Page 25 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 26: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 27: Troubleshooting & Faqs
• Disconnect the monitor from mains This page deals with problems that can power source immediately for safety be corrected by a user. If the problem • Contact with Philips customer still persists after you have tried these service representative immediately. solutions, contact Philips customer service representative. -
Page 28: General Faqs
• Shut down your computer, Service contact information listed disconnect your old monitor and in Regulation & Service Information reconnect your Philips LCD monitor. Manual and contact Philips customer service representative. • Turn on your monitor and then turn * Functionality different according to on your PC. - Page 29 Can I connect my LCD monitor to not use other solvents such as any PC, workstation or Mac? ethyl alcohol, ethanol, acetone, Ans.: Yes. All Philips LCD monitors are hexane, etc. fully compatible with standard PCs, Macs and workstations. Can I change the color setting of...
- Page 30 Q10: Are Philips LCD monitors Plug- 1440. For best display, please and- Play? use this resolution. Ans.: Yes, the monitors are Plug-and- Q13: How to unlock/lock my hot key? Play compatible with Windows Ans.: Please press for 10 seconds 10/8.1/8/7, Mac OSX.
- Page 31 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
