Hostess 550 16 Hardware Installation Card

Scope
This Hardware Installation Card discusses the following
topics for the Hostess
550
• Installation overview
• Identifying your controller
• Setting the base I/O address and IRQ switches
• Daisy-chaining IRQs
• Setting communications jumpers
• Installing the controller
• Specifications
• Troubleshooting and placing a support call
The Comtrol web/ftp site contains additional information:
• Signal information for the 100-pin connector on the
controller
• Connector information for your interface.
• Building loopback plugs
• Additional device drivers
• Software installation documentation
Note: Call Technical Support if you require a Hostess
Series and Hostess 550 Series Programming Guide.
Installation Overview
Installation follows these general steps:
1. Set the base I/O address and IRQ switches to unused
values for your machine.
2. Install the controller board.
3. Configure and attach the interface box, if applicable.
Note: See the Interface Reference Card to configure
the interface (if applicable).
4. Attach peripherals to the interface box.
Note: You must provide the serial cables to connect the
peripheral devices to the controller.
5. Install the device driver. You may need to download a
driver and the software installation documentation at:
www.comtrol.com or ftp.comtrol.com
Hostess® 550 16 Hardware Installation Card
Hostess
Hardware Installation Card
.
®
550 16
Identifying Your Controller

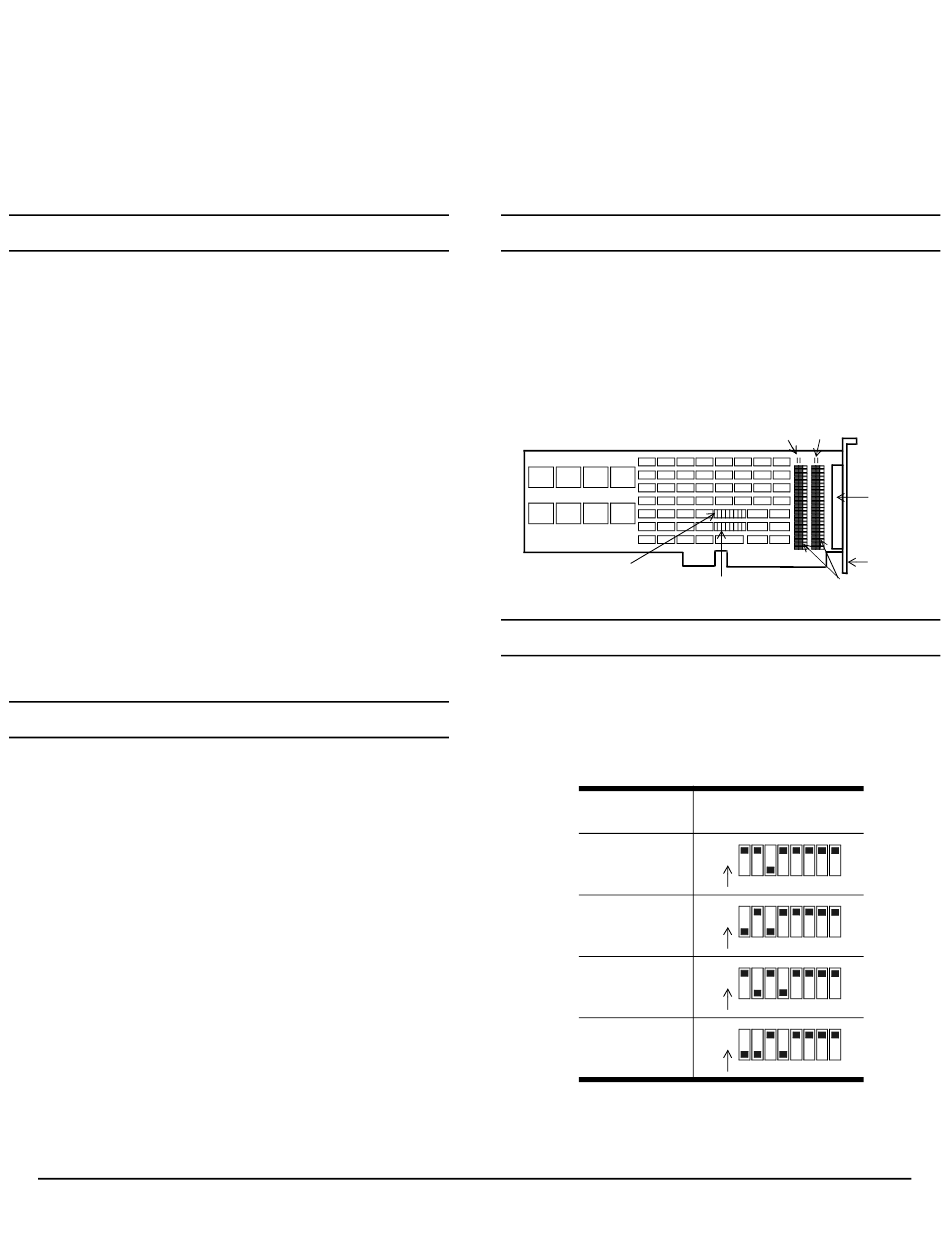

The following figure illustrates the position of the
controller's basic parts, such as:
• The communications jumpers, which are set to RS-232
mode by default. If you plan on using RS-422 mode,
you must move the shorting jumpers.
• The S1 switch, which sets the I/O address. The S2
switch, which sets the interrupt for the controller.
• The Out and In headers for daisy-chaining multiple
controllers.
S1 (ADDRESS)
S2 (INTERRUPT)
Setting the Base I/O Address
Use the following table to set the base
sure that you select unused address in your system. If you
are unsure what settings are available, refer to your
system documentation.
Note: The default I/O address from the factory is 500.
I/O Address
Range
200 - 27F
280 - 2FF
500 - 57F
Default
580 - 5FF
Out In
100-Pin
Connector
Mounting
Bus Connector
Bracket
Communications Jumpers
address. Make
I/O
Switch
S1
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
1 of 4
