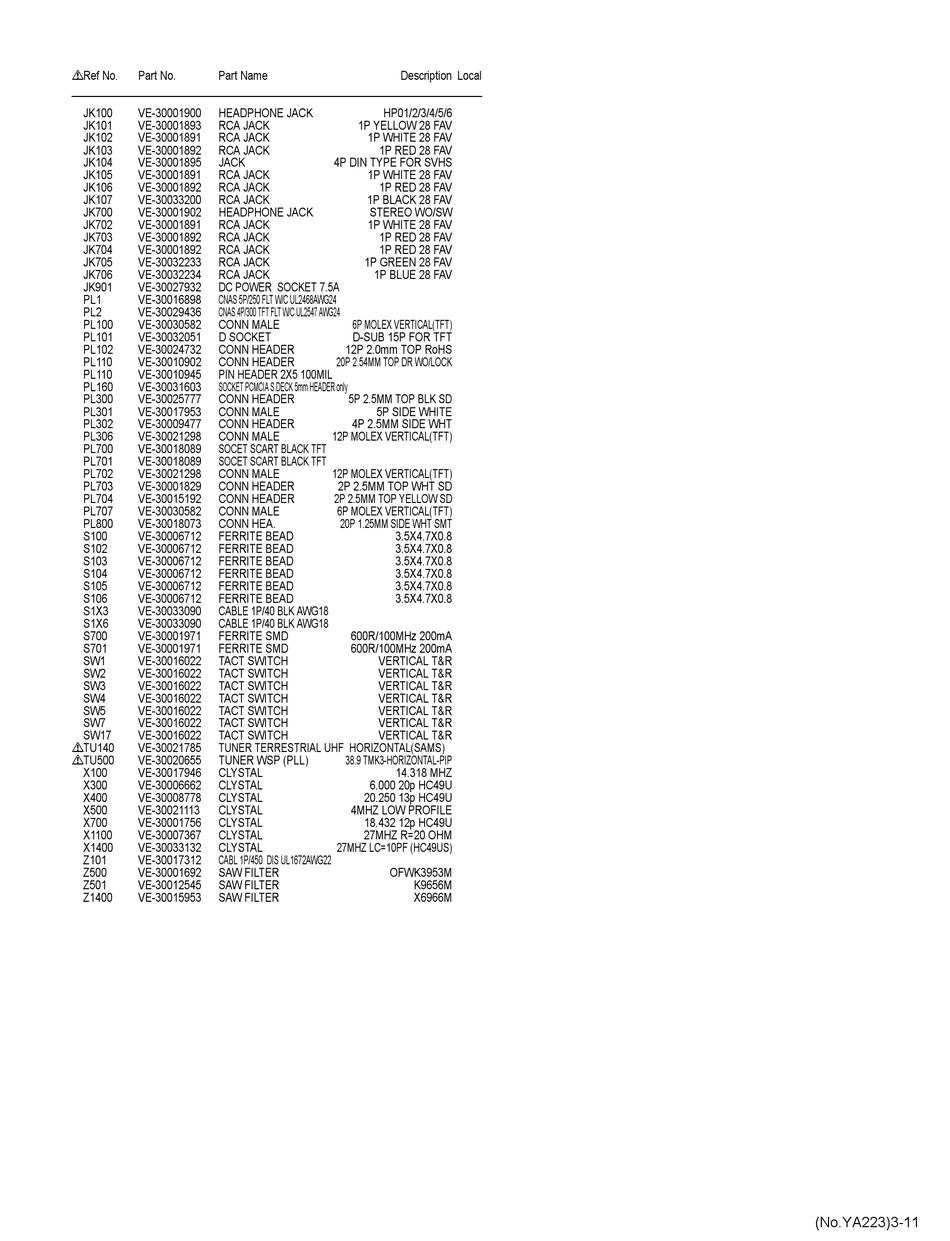

JVC InteriArt LT-17D50BK Service Manual page 25

Ref No. Part No. Part Name
JK100 VE-30001900 HEADPHONE JACK
JK101 VE-30001893 RCA JACK
JK102 VE-30001891 RCA JACK
JK103 VE-30001892 RCA JACK
JK104 VE-30001895 JACK
JK105 VE-30001891 RCA JACK
JK106 VE-30001892 RCA JACK
JK107 VE-30033200 RCA JACK
JK700 VE-30001902 HEADPHONE JACK
JK702 VE-30001891 RCA JACK
JK703 VE-30001892 RCA JACK
JK704 VE-30001892 RCA JACK
JK705 VE-30032233 RCA JACK
JK706 VE-30032234 RCA JACK
JK901 VE-30027932 DC POWER SOCKET 7.5A
PL1 VE-30016898 CNAS 5P/250 FLT W/C UL2468AWG24
PL2 VE-30029436 CNAS 4P/300 TFT FLT W/C UL2547 AWG24
PL100 VE-30030582 CONN MALE
PL101 VE-30032051 D SOCKET
PL102 VE-30024732 CONN HEADER
PL110 VE-30010902 CONN HEADER
PL110 VE-30010945 PIN HEADER 2X5 100MIL
PL160 VE-30031603 SOCKET PCMCIA S.DECK 5mm HEADER only
PL300 VE-30025777 CONN HEADER
PL301 VE-30017953 CONN MALE
PL302 VE-30009477 CONN HEADER
PL306 VE-30021298 CONN MALE
PL700 VE-30018089 SOCET SCART BLACK TFT
PL701 VE-30018089 SOCET SCART BLACK TFT
PL702 VE-30021298 CONN MALE
PL703 VE-30001829 CONN HEADER
PL704 VE-30015192 CONN HEADER
PL707 VE-30030582 CONN MALE
PL800 VE-30018073 CONN HEA.
S100 VE-30006712 FERRITE BEAD
S102 VE-30006712 FERRITE BEAD
S103 VE-30006712 FERRITE BEAD
S104 VE-30006712 FERRITE BEAD
S105 VE-30006712 FERRITE BEAD
S106 VE-30006712 FERRITE BEAD
S1X3 VE-30033090 CABLE 1P/40 BLK AWG18
S1X6 VE-30033090 CABLE 1P/40 BLK AWG18
S700 VE-30001971 FERRITE SMD
S701 VE-30001971 FERRITE SMD
SW1 VE-30016022 TACT SWITCH
SW2 VE-30016022 TACT SWITCH
SW3 VE-30016022 TACT SWITCH
SW4 VE-30016022 TACT SWITCH
SW5 VE-30016022 TACT SWITCH
SW7 VE-30016022 TACT SWITCH
SW17 VE-30016022 TACT SWITCH
TU140 VE-30021785 TUNER TERRESTRIAL UHF HORIZONTAL(SAMS)
VE-30020655 TUNER WSP (PLL)
TU500
X100 VE-30017946 CLYSTAL
X300 VE-30006662 CLYSTAL
X400 VE-30008778 CLYSTAL
X500 VE-30021113 CLYSTAL
X700 VE-30001756 CLYSTAL
X1100 VE-30007367 CLYSTAL
X1400 VE-30033132 CLYSTAL
Z101 VE-30017312 CABL 1P/450 DIS UL1672AWG22
Z500 VE-30001692 SAW FILTER
Z501 VE-30012545 SAW FILTER
Z1400 VE-30015953 SAW FILTER
Description Local
HP01/2/3/4/5/6
1P YELLOW 28 FAV
1P WHITE 28 FAV
1P RED 28 FAV
4P DIN TYPE FOR SVHS
1P WHITE 28 FAV
1P RED 28 FAV
1P BLACK 28 FAV
STEREO WO/SW
1P WHITE 28 FAV
1P RED 28 FAV
1P RED 28 FAV
1P GREEN 28 FAV
1P BLUE 28 FAV
6P MOLEX VERTICAL(TFT)
D-SUB 15P FOR TFT
12P 2.0mm TOP RoHS
20P 2.54MM TOP DR WO/LOCK
5P 2.5MM TOP BLK SD
5P SIDE WHITE
4P 2.5MM SIDE WHT
12P MOLEX VERTICAL(TFT)
12P MOLEX VERTICAL(TFT)
2P 2.5MM TOP WHT SD
2P 2.5MM TOP YELLOW SD
6P MOLEX VERTICAL(TFT)
20P 1.25MM SIDE WHT SMT
3.5X4.7X0.8
3.5X4.7X0.8
3.5X4.7X0.8
3.5X4.7X0.8
3.5X4.7X0.8
3.5X4.7X0.8
600R/100MHz 200mA
600R/100MHz 200mA
VERTICAL T&R
VERTICAL T&R
VERTICAL T&R
VERTICAL T&R
VERTICAL T&R
VERTICAL T&R
VERTICAL T&R
38.9 TMK3-HORIZONTAL-PIP
14.318 MHZ
6.000 20p HC49U
20.250 13p HC49U
4MHZ LOW PROFILE
18.432 12p HC49U
27MHZ R=20 OHM
27MHZ LC=10PF (HC49US)
OFWK3953M
K9656M
X6966M
(No.YA223)3-11
