IBS Happylightshow Manual

For astra j, insignia a, zafira tourer chevrolet cruze, orlando
Hide thumbs

Advertisement

Quick Links

Download this manual

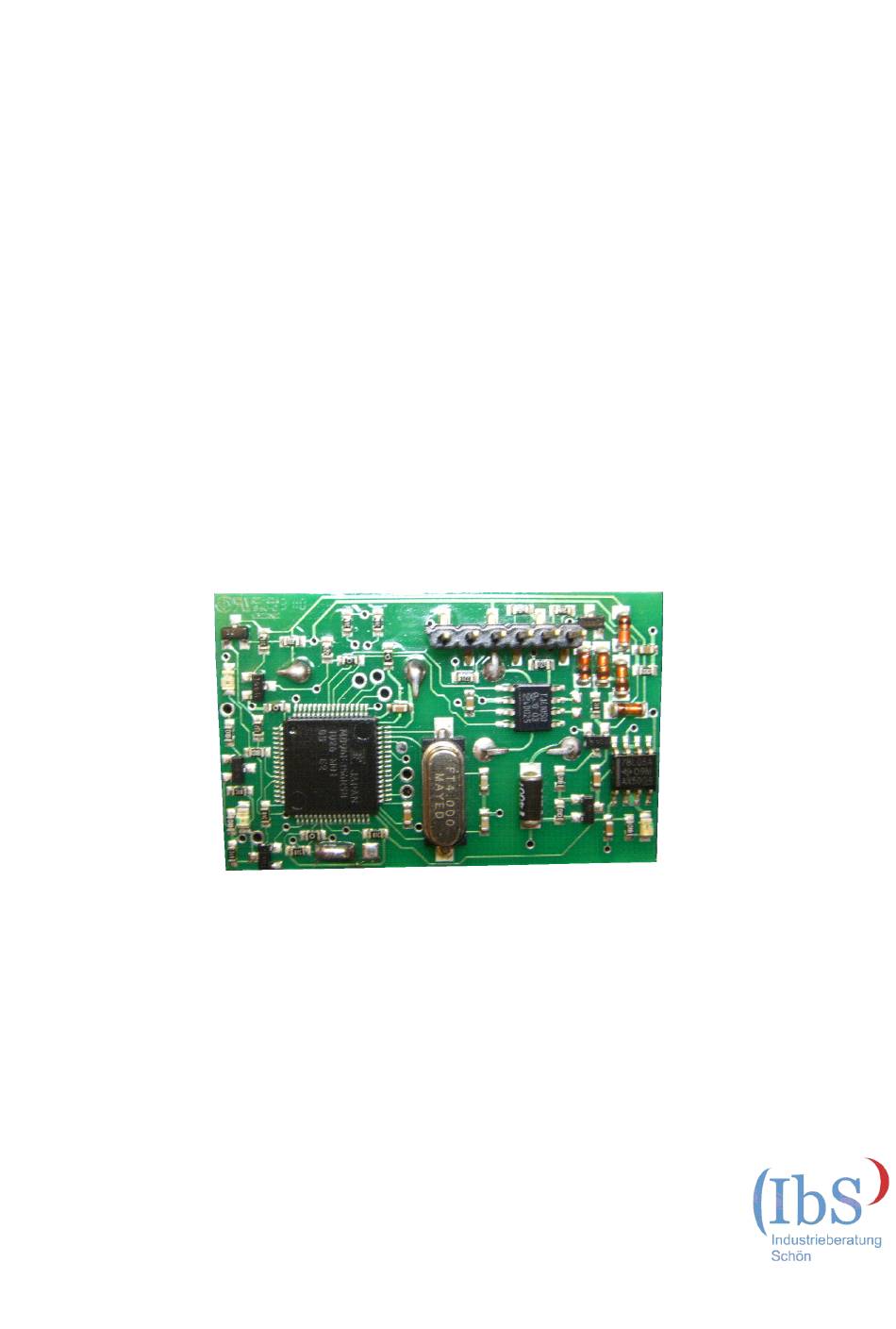

Manual Happylightshow
For Astra J, Insignia A, Zafira Tourer
Chevrolet Cruze, Orlando
Neues Bild hier
GA 4.02 Rev 1.00
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Happylightshow and is the answer not in the manual?

Questions and answers

Summary of Contents for IBS Happylightshow

  • Page 1 Manual Happylightshow For Astra J, Insignia A, Zafira Tourer Chevrolet Cruze, Orlando Neues Bild hier GA 4.02 Rev 1.00...

  • Page 2: Table Of Contents

    Übersicht 1. Mounting and Start-Up 2. Setup Instructions 3. Functional Description 4. Multi-Function-Display 5. Visual Parking Aid 6. Legal Meaning GA 4.02 Rev 1.00...

  • Page 3: Mounting And Start-Up

    1. Mounting and Start-Up The module is plugged onto the diagnostic link connector, Which is locatetd in the legroom of the left front seat. Please be sure, that no pins are bend before you start mounting the module. The 6-pin conjnection plug on the front must be pointing up. When the module is active (Green LED is lighting) the orange LED should blink and the red LEDshould glow.

  • Page 4: Setup Instructions

    2. Setup 1/4 1 Activation of the setup menu requires: Ignition on, Engine off. Activation: Actuate Brake, FlashTopass and Turn Signal Left simultaneously. -> All telltales inside the instrument will light up. 2 Setup the configuartions The speedometer shows the digit (0km/h = Digit 0, 50km/h = Digit 5). The Tachometer shows the value of the dialed digit (1000rpm = 1, 5000rpm = 5).
  • Page 5 2. Setup 2/4 4 Meaning of the digits Digit 0: (model choice) 0 = Insignia 4/5 Door from MY10 1 = Insignia 4/5 Door to MY10 2 = Insignia ST to MY10 3 = Insignia ST from MY10 4 = Astra J / Cruze from MY10,* 5 = Cruze to MY10 Digit 1: (Daytime Running Lights)
  • Page 6 2. Setup 3/4 4 Meaning of the digits Digit 5: (WTTC time) 0 = off 1-6 x 10 seconds ,* 2 Digit 6: (Activation of the WTTC) 0 = off 1 = every command of the radio key 2 = double command of the radio key 3 = WTTC sequence with standard light sensor (Chirp is not supported) Digit 7: (Chirp) 0 = off...
  • Page 7 2. Setup 4/4 4 Meaning of the digits Digit 12: (Speedlock) 0 = off 1 = on Digit 13: (Additional Lighting in reverse gear) 0 = off 1 = Insignia ST on 2 = All other modells on - Activating with doubleclick when Reverse driving Digit 14: (Multi-Function-Display and Default Settings) 0 = MFD not activatable 1 = MFD activatable ³...

  • Page 8: Functional Description

    3.Functional Description 3.1 Adjustable Functions Model Choice (Digit0) Please choose your car model here. Daytime Running Lights (Digit1) You can choose which lights should light in addition to the normal Daytime Lights. WTTC (Digit2-6): The WTTC Function controlls the ambient lighting. The Start Trigger is setup with Digit6.
  • Page 9 3.Functional Description Chirp (Digit7): The horn sounds when the car is opend/closed Hint: Only works when Digit6 is not 3 FlashToPass with fog lights(Digit8): When FlashToPass is activated by the driver, the fog lights will be lighthing Hazardlights with opended trunk(Digit9): When trunk is opened the Hazardlights will be lighting too.
  • Page 10 3.Functional Description TrunkLights Activation (Digit 11 only Insignia Sportstourer ): If the trunk is open the internal tailights will be on. Speedlock (Stelle12): The car will automatically be locked after moving off. It will unlock after ignition will go off, or ‘P‘ is selected by the driver. Hint: The Trunk and the fuel filler wont be released Additional Lighting in reverse gear (Digit13):...
  • Page 11 3.Functional Description 3.2 non adjustable Functions Lightshow: Activation: requires: Ignition on, Engine off. Actuate Brake, FlashTopass and Turn Signal Right simultaneously. To switch to the next light variation push Brake, the speedometer shows the actual variation (180km/h = variation 18) Diesel Particle Filter –...

  • Page 12: Multi-Function-Display

    4.Multi-Function-Display requires: high-content Display and Multifunctional-Steeringwheel 1.Activation: If setup correctlly starting the MFD is done by double pressing mute on the Steeringwheel. 2.Switching between the windows: To shift to the next Windows, Press Vol+/Vol- on the steeringwheel To shift to the previous Windows, Press Vol-/Vol+ on the steeringwheel 3.
  • Page 13 Additional Multi Function Display HappyLightshowModul Opel Astra J, Insignia, Chevrolet Cruze etc. Start mit double Press once volume + and then click on Mute volume – will switch to the next screen to the right. With – and then + you switch to the left screen.

  • Page 14: Visual Parking Aid

    Opel Astra J, Insignia, Chevrolet Cruze etc. Activating: Parameter Digit 15 to 1 Obstacle Obstacle front left in front left in less 0,4m then 0,2m Obstacle rear middle in 0,3 meters GA 4.02 Rev 1.00 Funktion Visualisierung sed Parkassistenten – GA 4.00 Febr. 2012 – www.happylightshow.de...

  • Page 15: Legal Meaning

    5. Legal meaning The devices has no general type approval, thus it is not allowed to use it within the laws of road traffic. By noncompliance the user will be responsible for any loss. GA 4.02 Rev 1.00 15 15...
