arowana Dynadose A75 Operating Manual

Operating manual
Model: Dynadose A75

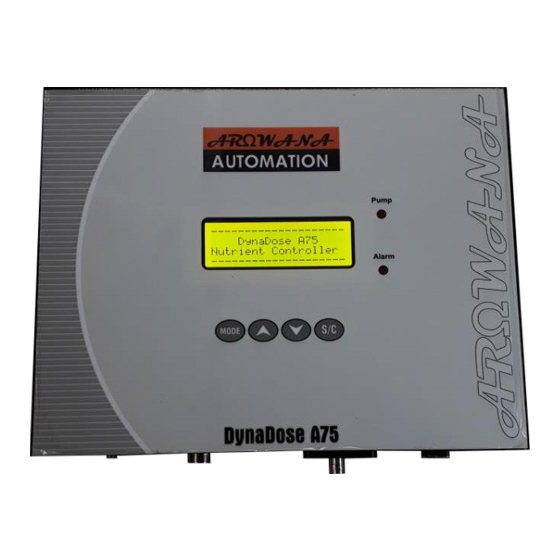

Front Panel and Push-buttons combination

Mode
Button
No Details
1 Input power
2 EC Probe
4 Probe accuracy
3 External pump
5 Threshold ON/OFF 0.15 EC forward diff for ON and Equal to for OFF
6 Data link scan time 10-15 mints with date & time stamp USB drive
Disclaimer: Information provided in this document is proprietary to Arowana automation, and Arowana
automation reserves the right to make any changes to the information in this document or to any products and
services at any time without notice.
UP Down
Button Button
12VDC adapter 1-2Amp
Conductivity cell K=1.01 (cable length 5meters)
+/-0.15 EC
Potential free NO/NC contact
Web: www.arowanatech.in
12VDC
External
Supply
Pump
Signal
Select
Button
Parameter
EC Probe USB
Drive
