INSTALLATION MANUAL
ELECTRIC FURNACE
MODELS: EB*/EU*
Downflow/Upflow
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ELECTRIC FURNACE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 4
Furnace Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Alcove & Closet Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Upflow Closet Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Duct Connector Depth (7990 Series) . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Duct Connector Dimensions (7990 Series) . . . . . . . . . . . . . . . . . . . . . 4
Recommended Floor Cut-out (7990 Series) . . . . . . . . . . . . . . . . . . . . 4
Duct Connector Screw Attachment (7990 Series) . . . . . . . . . . . . . . . . 5
Duct Connector Tab Attachment (7990 Series) . . . . . . . . . . . . . . . . . . 5
Installation of Furnace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Field Wiring Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Duct Connector for Electric Furnaces . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SECTION I: GENERAL
The following list includes important facts and information regarding the
EB/EU furnace and its packaging inclusions:
1.
Furnace is rated at 240 volts, 60 Hz, single phase.
2.
Filters are furnished with EB model, and are the same for all EB
models - 16 x 20 x 1 in top and 20 x 20 x 1 in the louvered door.
3.
Furnace size is the same for all models. See Figure 1.
4.
Four-wire thermostat operation for heating and cooling.
5.
Coil cavity built into furnace (coil shelf accessory required for EB
model).
6.
All furnaces are equipped with an air conditioner blower and is A/C
or Heat Pump ready (coil shelf accessory required for EB model).
7.
Holding strap furnished on top rear of furnace.
8.
The EB furnace is designed for downflow application, and the EU
furnace is designed for upflow application.
9.
This furnace must not be operated without the front panel
installed.
NOTICE
This furnace and its components listed on the A/C and Heat Pump
equipment sticker are listed in combination as a system by Under-
writer's Laboratories for the United States and Canada.
Johnson Controls Unitary Products
For Installation In:
1. Manufactured (Mobile) Homes
2. Recreational Vehicles & Park Models
3. Modular Homes & Buildings
LIST OF SECTIONS
THERMOSTAT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
OPTIONAL AIR CONDITIONING ACCESSORIES . . . . . . . . . . . . . . 9
WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
LIST OF FIGURES
Thermostat Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Thermostat Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
EB/EU10* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EB/EU12* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
EB/EU15* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
EB/EU17* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
EB/EU20* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
EB/EU23* Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
LIST OF TABLES
EB/EU Series Blower Performance . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Physical and Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

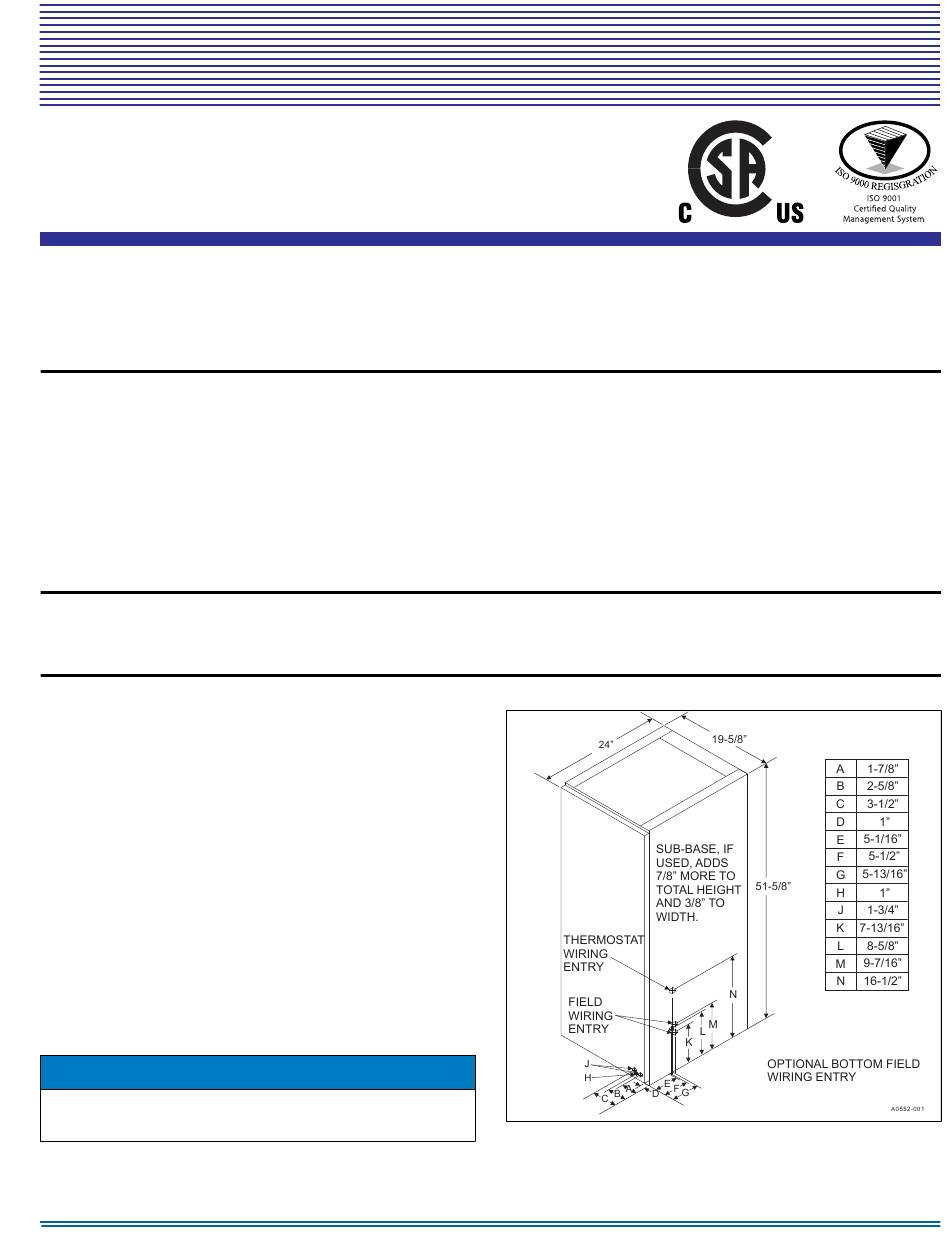

FIGURE 1: Furnace Dimensions
®
5393776-BIM-B-0817
