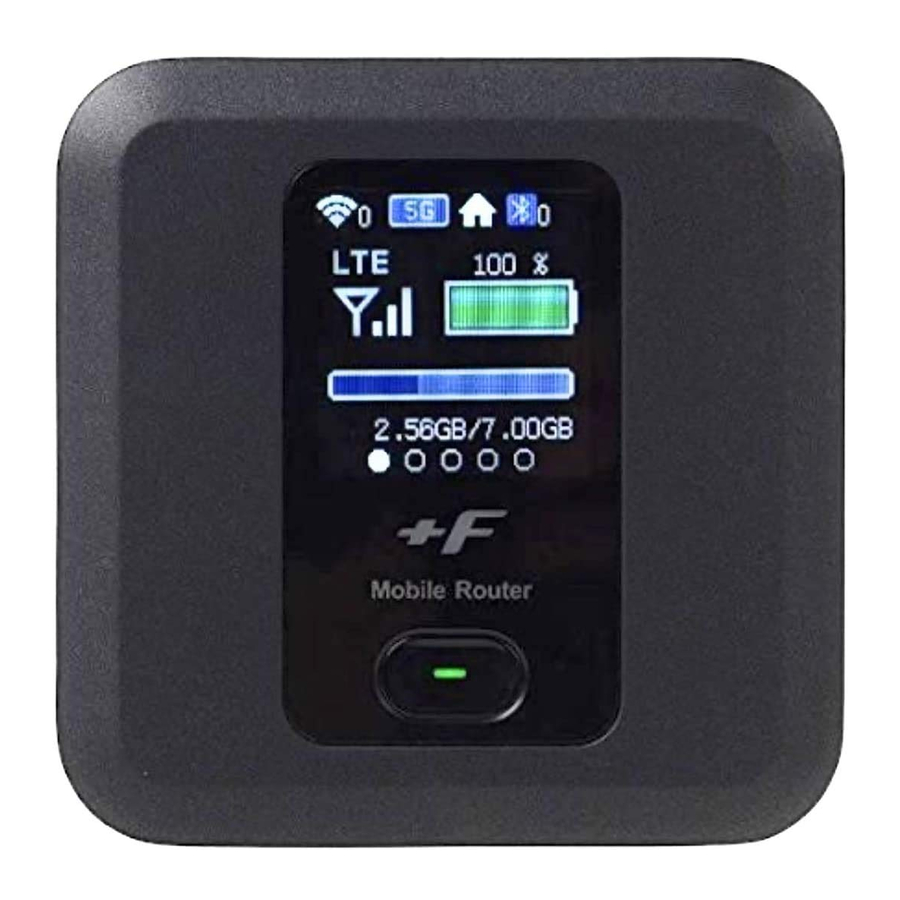

Lucky Wi-Fi +F FS030W - Wireless Router Manual

Parts and Functions

1. Strap Hole
2. Display
3. Power switch

• Power on → Press Power switch for over approximately three seconds.
• Power off → Press Power switch for over approximately three seconds.
• Press power switch when the power on, change the screen.
• It works as "OK" button

4. LED

5. micro USB connector

• Connect to micro USB cable
• Docking with cradle

6. WSP button

• Press WSP button for over approximately three seconds when the power is on, WSP status.

7. Reset button

• Press reset button when the power is on.
• Rebooting→Press reset button for over approximately five seconds to reset settings to defaults.

8. micro SIM card slot
9. battery pack

Power on/off

1. Press power switch for over three seconds when the power is off.
   Lights when turning on the power
2. Press power switch for over three seconds when the power on.
   Lights out when turning off the power

Charging

• Use supplied USB cable
  Insert USB cable into External Device Port and USB cable to a computer.
• Use AC charger
  Insert USB cable into EXternal Device Port, USB cable into USB connector of AC charger, and power plug of AC charger to AC outlet.

Display (Home screen)

Dispaly Wi-Fi router's status

1. Home screen
2. WLAN connecting
3. WLAN QR connecting
4. Profile
5. Bluetooth

SSID and primary key

Setting for primary SSID and password, confirm from "WLAN connecting information."

Connecting Windows PC (Windows 10)

*For security key, please read "SSIDa nd primary key"

1. Activate PC WLAN function
2. In task tray click, "Network settings" appears.
3. Select Wi-Fi name (FS030W_PXXXX) → click "Connect"

4. Enter password → "NEXT"

5. Checking WLAN connected

Connecting PC (Mac)

*For security key, please read "SSID and primary key"

1. In Apple menu, "System Preferences" →"Network"
2. "Wi-Fi" → "Turn Wi-Fi on"
3. In "Network Name" pulldown list, select Wi-Fi router's Wi-Fi name (FS030W_PXXXX)

4. Enter password (Primary key ) in "Password" →Click "Remember this network"

   *WLAN connection counter number on Display increases by one.
5. Checking WLAN connected.
   *If a message "Can't detect preferred Network" appears, take of the checkmark "Confirm before connecting to new network"

Connecting Android Device

*For security key, please read "SSID and primary key"
*Connecting general android device. This section describes setup operations for WPA security settings.

1. Activate Android device →In menu "Setting"→"Wi-Fi"
2. Tap Wi-Fi router's SSID(FS030W_PXXX)

3. Enter Primary Key in "password" correctly

   *WLAN connection counter number on Display increases by one.
4. Checking Wi-Fi LAN connected.
   *Operation steps vary by Android device.
   For details, refer to Android device user guide.

Connecting iPhone / iPod touch / iPad (iOS 10)

*For security key, please read "SSIDand primary key"

1. Activate iOS device "Settings"→"Wi-Fi"
2. Tap Wi-Fi name (FS030W_PXXXX)

3. Enter password (Primary key) →"Join"

   *WLAN connection counter number on Display increases by one.
4. Checking Wi-Fi LAN connected.

Trouble Shooting

*Please confirm before inquiry

Device does not working, Unable to charge, connect

Please restart the router.

Unable to connect Internet Wi-Fi

Please be sure Wi-Fi router function is turned on.
Please be sure, you entered password correctly.

If problem persists, reset Wi-Fi router.

• How to Reset Wi-Fi router

1. Press battery cover to slide as marked , and lift it up to remove it.
2. Press reset button over approximately five seconds when the power is on.


Internet connection fails

If signal reception is poor or fails, move to where signal is strong, then recconect. Also please restart the router and connecting devices.

Communication speed is slow

Using TV, radio or microwave oven may cause interference signal reception of Wi-Fi router. Use them apart from Wi-Fi.

Wi-Fi router is inoperative

Remove Battery →Insert Battery →Power on after a while

Contact

Phone Number: 03-6812-1288 (weekday 10am ~ 6pm)
e-mail: info@luckywifi.net

Only for Domestic

*Customer is responsible for the charge for a telephone call.
*Before contact us, please read "trouble shooting" on the reverse side.
