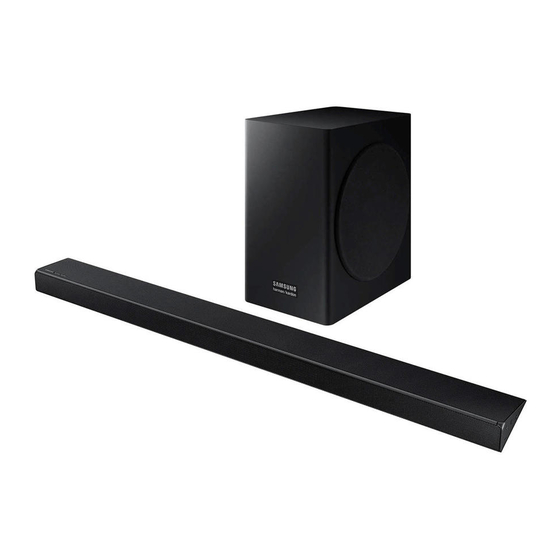

Samsung harman/kardon HW-Q60R User Manual
  1. Manuals
  2. Brands
  3. Samsung Manuals
  4. Speakers
  5. HARMAN/KARDON HW-Q60R
  6. User manual
Samsung harman/kardon HW-Q60R User Manual

Samsung harman/kardon HW-Q60R User Manual

Hide thumbs Also See for harman/kardon HW-Q60R:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
HW-Q60R

Advertisement

Table of Contents
loading

Related Manuals for Samsung harman/kardon HW-Q60R

Summary of Contents for Samsung harman/kardon HW-Q60R

  • Page 1 USER MANUAL HW-Q60R...
  • Page 2 Refer to the table below for an explanation of • Do not expose this apparatus to dripping or symbols which may be on your Samsung product. splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
  • Page 3 FCC Caution : FCC Radiation Exposure Statement : • Any changes or modifications not expressly This equipment complies with FCC radiation approved by the party responsible for exposure limits set forth for an uncontrolled compliance could void the user’s authority to environment.
  • Page 4 10. Protect the power cord from being walked To fully turn off the unit, disconnect the AC on or pinched particularly at plugs, plug from the wall outlet. Unplug the unit if convenience receptacles, and the point you intend to leave it unused for a long where they exit from the apparatus.
  • Page 5 See this manual for safety instructions, product installation, components, connections, and product specifications. FULL MANUAL You can access the FULL MANUAL on Samsung’s on-line customer support center by scanning the QR code on the left. To see the manual on your PC or mobile device, download the manual in document format from Samsung’s website.

  • Page 6: Table Of Contents

    CONTENTS Checking the Components Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- Product Overview Front Panel / Right Side Panel of the Soundbar ------------------------- Bottom Panel of the Soundbar ------------------------- Connecting the Soundbar Connecting Electrical Power ------------------------- Connecting the Soundbar to the Subwoofer -------------------------...
  • Page 7 Connecting a Mobile Device Connecting via Bluetooth ------------------------- Using the Remote Control How to Use the Remote Control ------------------------- Adjusting the Soundbar volume with a TV remote control ------------------------- Installing the Wall Mount Installation Precautions ------------------------- Wallmount Components ------------------------- Installing the Holder Foot Holder Foot Components ------------------------- Troubleshooting...

  • Page 8: Checking The Components

    • The power components are labelled ( 1 , 2 , 3 ). For more information about power connections, see page 4. • To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care. Inserting Batteries before using the Remote Control (AA batteries X 2) Slide the battery cover in the direction of the arrow until it is completely removed.

  • Page 9: Product Overview

    Front Panel / Right Side Panel of the Soundbar Right Side of the Soundbar Position the product so that the Volume Power “Samsung Harman Kardon” logo is located on the top. Display Bottom Panel of the Soundbar HDMI IN USB (5V 0.5A)

  • Page 10: Connecting The Soundbar

    03 CONNECTING THE SOUNDBAR Connecting Electrical Power Use the power components (1, 2, 3) to connect the Subwoofer and Soundbar to an electrical outlet in the following order: 1 Connect the power cord to the Subwoofer. 2 Connect the power output cable to the power adapter, and then to the Soundbar. 3 Connect the power cord to a wall socket.

  • Page 11: Connecting The Soundbar To The Subwoofer

    Soundbar unit is connected properly. Connect again. See the instructions for Connection failed manual connection on page 6. Red and See the contact information for the Blinking Malfunction blue Samsung Service Center in this manual. ENG - 5...

  • Page 12: Manually Connecting The Subwoofer If Automatic Connection Fails

    • The ID SET message appears on the display of the Soundbar for a moment, and then it disappears. • The Soundbar will automatically power on when ID SET is complete. “Samsung Harman Kardon” logo is on the top 5 Sec ID SET 3.

  • Page 13: Connecting An Swa-8500S (Sold Separately) To Your Soundbar

    Connecting an SWA-8500S (Sold Separately) to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S, sold separately) to your Soundbar. 1. Connect the Wireless Receiver Module to 2 Surround Speakers. – The speaker cables are color coded.
  • Page 14 • The ID SET message appears on the display of the Soundbar for a moment, and then it disappears. • The Soundbar will automatically power on when ID SET is complete. “Samsung Harman Kardon” logo is on the top 5 Sec ID SET CAUTION •...

  • Page 15: Connecting To Your Tv

    04 CONNECTING TO YOUR TV Hear TV sound from your Soundbar through wired or wireless connections. • When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control. – This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.

  • Page 16: Connecting A Tv Using An Hdmi Cable

    Auto Power Link Auto Power Link automatically turns on the Soundbar when the TV is turned on. 1. Connect the Soundbar and a TV with a digital optical cable as described in Step 1 on the previous page. 2. Press the Left button on the remote control (the blue spot in the illustration to the right) for 5 seconds to turn Auto Power Link on or off.

  • Page 17: Method 2. Connecting Wirelessly

    4. You can now hear TV sound from the Soundbar. If the device fails to connect • If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar Q6R-Series”) appears in the list, delete it. • Then repeat steps 1 through 3.
  • Page 18 Disconnecting the Soundbar from the TV Press the (Source) button on the right side panel or on the remote control and switch to any mode but “BT”. • Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.) •...

  • Page 19: Connecting An External Device

    05 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired or wireless network to play the external device’s sound through the Soundbar. Connecting using an Optical or Analog Audio (AUX) Cable Right Side of the Soundbar BD / DVD player / Set-top box / Game console - AUDIO - USB (5V 0.5A)

  • Page 20: Connecting Using An Hdmi Cable

    Connecting using an HDMI Cable Bottom of the Soundbar HDMI OUT HDMI IN External Device HDMI Cable (not supplied) HDMI OUT (TV-ARC) HDMI Cable HDMI IN (not supplied) (ARC) Right Side of the Soundbar HDMI 1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device.

  • Page 21: Connecting A Usb Storage Device

    2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar. • The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Center or Samsung Customer Care.

  • Page 22: Connecting A Mobile Device

    Soundbar for more than 5 seconds to display “BT PAIRING”. 2. On your device, select “[AV] Samsung Soundbar Q6R-Series” from the list that appears. • When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → “BT”...

  • Page 23: Using The Remote Control

    08 USING THE REMOTE CONTROL How to Use the Remote Control Turns the Soundbar on and off. Power Press to select a source connected to the Soundbar. PAIR Source Press the (Mute) button to mute the sound. Press it again to unmute the sound. PAIR PAIR Mute...
  • Page 24 Anynet+ and Auto Power Link are turned on and turned off by the Right and Left buttons respectively. – Anynet+ : If the Soundbar is connected to a Samsung TV through an HDMI cable, you can control your Soundbar with a Samsung TV remote control.
  • Page 25 You can select TREBLE, BASS, or AUDIO SYNC PAIR • To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons. SOUND MODE Sound Control •...

  • Page 26: Adjusting The Soundbar Volume With A Tv Remote Control

    The default mode for this function is – Each time you push the WOOFER button control by a Samsung TV remote. If your TV is not up and hold it for 5 seconds, the mode a Samsung TV, follow the directions below to switches in the following order: change the settings of this function.

  • Page 27: Installing The Wall Mount

    09 INSTALLING THE Wallmount Components WALL MOUNT Wall Mount Guide (AH81-09822A) Installation Precautions • Install on a vertical wall only. • Do not install in a place with high Holder-Screw Screw temperature or humidity. (AH81-09824A) (AH81-09825A) • Verify whether the wall is strong enough to support the product’s weight.
  • Page 28 2. Align the Wall Mount Guide’s Center Line 5. Push a screw (not supplied) through each with the center of your TV (if you are Holder-Screw, and then screw each screw mounting the Soundbar below your TV), and firmly into a support screw hole. then fix the Wall Mount Guide to the wall using tape.

  • Page 29: Installing The Holder Foot

    10 INSTALLING THE 7. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the HOLDER FOOT Bracket-Wall Mounts on the Holder-Screws on the wall. Holder Foot Components Holder Foot Holder-Support 8. Slide the Soundbar down as shown below so (AH81-09722A) (AH81-09721A) that the Bracket-Wall Mounts rest securely...
  • Page 30 Raising the Soundbar 0.6 inches (15 mm) 1. Use the 2 supplied Screws to fix the two Holder-Feet to the wall mount assembly on the bottom panel of the Soundbar. Raising the Soundbar 0.8 inches (20 mm) 1. Attach the two Holder-Feet to the two Holder-Supports, as shown in the figure below.

  • Page 31: Troubleshooting

    Refer to the table below if this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864). The unit will not turn on.

  • Page 32: License

    12 LICENSE 13 OPEN SOURCE LICENSE NOTICE To send inquiries and requests regarding open sources, contact Samsung via Email Manufactured under license from Dolby (oss.request@samsung.com). Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby 14 IMPORTANT Laboratories.

  • Page 33: Specifications And Guide

    Rated Output power 160W NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. • Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call 1-800-SAMSUNG.
  • Page 34 LIMITED WARRANTY TO ORIGINAL PURCHASER This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited...
  • Page 35 Tel : 1-973-808-6375 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT WRITE Samsung Electronics America, Inc. 1-800-SAMSUNG IN THE US www.samsung.com/us/support 85 Challenger Road (726-7864) Ridgefi eld Park, NJ 07660 © 2019 Samsung Electronics Co., Ltd. All rights reserved. NSPBI00303A-00...
