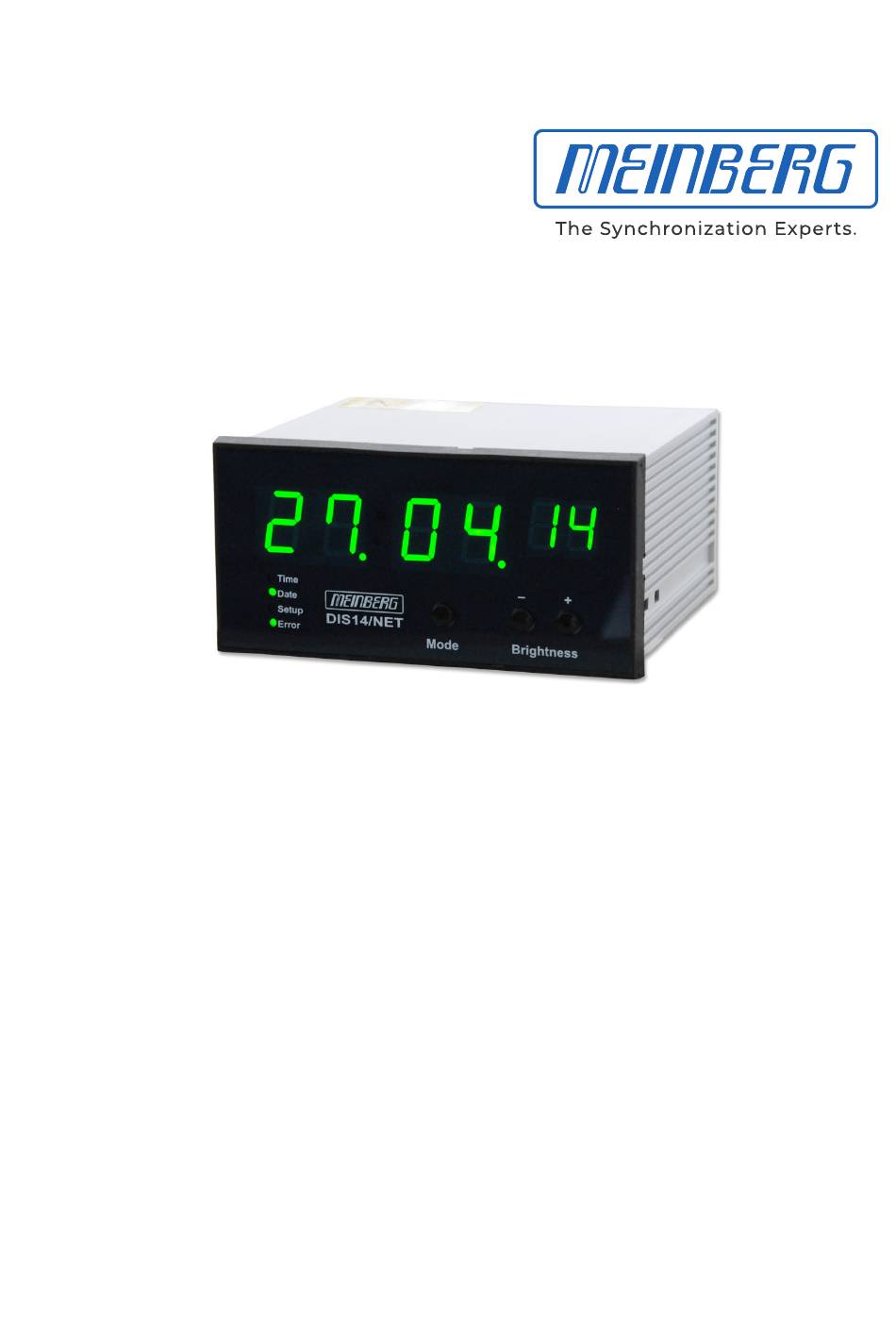

- Page 1 MANUAL DIS14/NET NTP Time and Date Display 4th May 2021 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
........4 Features of the DIS14/NET Microprocessor System . - Page 4 ..........6.3.1 Format of the Meinberg Standard Time String ......
-
Page 5: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 6: Safety Hints
Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations. -
Page 7: Used Symbols
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. DIS14/NET Date: 4th May 2021... - Page 8 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 4th May 2021 DIS14/NET...
-
Page 9: Security During Installation
For safety reasons, the device with the highest mass should be installed in the lowest position of the rack. Other devices must be placed from the bottom to the top. The device must be protected against mechanical stress such as vibration or shock. DIS14/NET Date: 4th May 2021... - Page 10 fluids or foreign objects enter), the current flow can be interrupted. Questions about the house installation, need to be clarified with your house administration. The power supply should be connected with a short, low-inductance line. Date: 4th May 2021 DIS14/NET...
- Page 11 DIS14/NET Date: 4th May 2021...
-
Page 12: Safety During Operation
Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation according to the documentation of the corresponding user documentation. Date: 4th May 2021 DIS14/NET... -
Page 13: Safety During Maintenance
Risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type recommended by the manufacturer. When disposing used batteries, observe the local regulations for the disposal of hazardous waste. DIS14/NET Date: 4th May 2021... -
Page 14: Cleaning And Care
Liquid can destroy the electronics of the device! Liquid penetrates into the housing of the device and can cause a short circuit of the electronics. Only clean with a soft, dry cloth. Never use solvents or cleaners. Date: 4th May 2021 DIS14/NET... -
Page 15: Prevention Of Esd Damage
ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. DIS14/NET Date: 4th May 2021... -
Page 16: Return Of Electrical And Electronic Equipment
Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use. -
Page 17: Time And Date Display With Ntp Synchronized Reference
NTP enables the comparison of the hardware times and the adjustment of the own clock. A time precision of 128 ms, often better than 50 ms, is possible. DIS14/NET Date: 4th May 2021... -
Page 18: Features Of The Dis14/Net

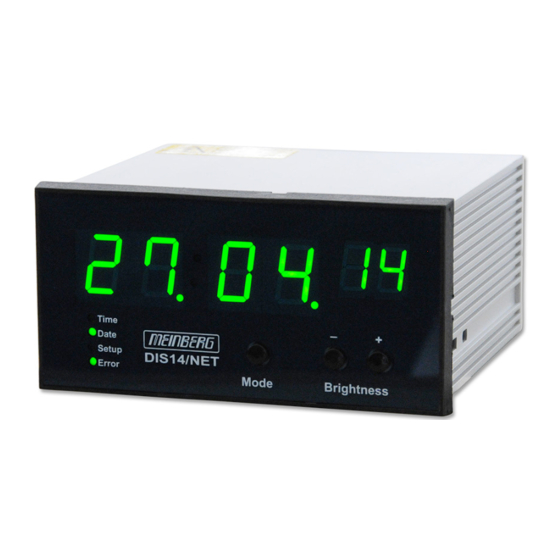

4 Features of the DIS14/NET The DIS14/NET is a stand-alone free running clock with integrated power supply that is synchronized via network connection using NTP. The 6-digit LED display shows the time (hours and minutes, with or without seconds) or the date (day, month and year or day-of-week). The display brightness is variable with two push buttons. -
Page 19: Display
4 Features of the DIS14/NET 4.4 Display The 6-digit LED display shows the time in two different formats, either with or without seconds, or the date is displayed in two formats, either with the current year or with the day-of-week. Furthermore, in case of a problem a numeric error code is shown instead of the time or date. -
Page 20: Installation
After network connection has been established and the DIS14 has successfully synchronized, the display shows the time of the reached NTP server, the configured time zone is taken into consideration. This is indicated by the above mentioned "Error" LED switched off (depending on the NTP request time). Date: 4th May 2021 DIS14/NET... -
Page 21: Setup Menu
(LED "Setup" is switched on). This menu allows the configuration of the features pro- vided by the DIS14/NET. All available sub menus are selected by the Mode push button while both Brightness push buttons (+ and -) are used to set the value or to select the available options. -
Page 22: Time Zone [Tz.]
(on r.). Selection is made with + or -, exit and enter into the next submenu with Mode. 5.2.8 Time String Out COM 0/COM 1 - [S.0] or [S.1] The generated time string can be selected in this sub menu. The available time string formats are: Meinberg Standard Uni Erlangen (without position-datas!!) ATIS... -
Page 23: Time Zone Out Com 0/Com 1 - [Z.0] Or [Z.1]
5.2.11 IP Address [IP.] The IP address of the DIS14/NET is shown in four seperate numbers (0 ... 255). The first number is displayed until button + is pressed to show the second number and so on. Changing the IP address is not an object in this menu, this is done via network connection as described in chapter "Server Configuartion". -
Page 24: Serial Number [Sn.]
5.2.14 Serial Number [SN.] The 16-digit serial number of the DIS14/NET can be displayed in this menu. The first 4 digits are displayed first, when + is pressed once, the next 4 digits are displayed and so on. The serial number can also be found on the barcode sticker on the rear panel of the housing. -
Page 25: Firmware Updates
DIS14 itself. The default hostname of the DIS14 is Cxxxxxx, where xxxxxx is the last 6 digits of the MAC address. The MAC address of the internal netcard (Hw-Addr) is labeled beside the rear RJ45 connector. DIS14/NET Date: 4th May 2021... -
Page 26: Arp Method
IP address to the one designated in this step. telnet 191.12.3.77 1 3. Step Finally, open a Telnet connection to port 9999 and set all required parameters in the configuration menu of the DIS14. telnet 191.12.3.77 9999 Date: 4th May 2021 DIS14/NET... -
Page 27: Extended Configuration Via Telnet
Telnet client. All you need to know is the IP address of the DIS14 module and the correct access password. The default password is meinberg. You need to connect to port 9999 of the module, so please start a telnet session with the IP address of the unit and port 9999 (Example for invoking a telnet client: "C:/>... -
Page 28: Menu Option 0: Server Configuration
So you would have to enter a 8. A netmask of 255.255.0.0 is represented by a 16, in order to define a netmask of 255.0.0.0 you would have to enter 24. Class A: 24 bits e.g. 255.000.000.000 Class B: 16 bits e.g. 255.255.000.000 Class C: 8 bits e.g. 255.255.255.000 Date: 4th May 2021 DIS14/NET... -
Page 29: Menu Option 1: Security Configuration
Setting the Telnet configuration password prevents unauthorized access of the setup menu via a Telnet connection to port 9999. Default password is meinberg. To change this password enter this menu by pressing 1 and return. After the password is changed it has to be acknowledged by reentering it. -
Page 30: Menu Option 4: Reserved
All parameters are saved in the nonvolatile memory of the module and afterwards the unit restarts in order to put the changes into effect. After 10 – 30 seconds the DIS14 module has finished rebooting and can be used again. Date: 4th May 2021 DIS14/NET... -
Page 31: Synchronisation Via Serial Interface
Beispiele für die Reihenschaltung / Samples for the serial connection The RS-422 current loop interface allows to span distance up to 1200 meters between the systems. Using the RS232 driver the distance between two systems is limited to 15 meters. DIS14/NET Date: 4th May 2021... -
Page 32: Snmp Reference
All Meinberg units can be found under the „1.3.6.1.4.1.5597“ branch., the 5597 represents the unique, world- wide used enterprise ID of Meinberg, All variables concerning Meinberg equipment can be found under/behind this node. All Variables representing the status of Meinberg DIS14 can be found by following the branch „1.3.6.1.4.1.5597.20“... -
Page 33: List Of Literature
Electrical Engineering Department Report 90-6-1, University of Delaware, June 1989 Kardel, Frank, "Gesetzliche Zeit in Rechnernetzen", Funkuhren, Zeitsignale und Normalfrequenzen, Hrsg. W. Hilberg, Verlag Sprache und Technik, Groß-Bieberau 1993 Kardel, Frank, "Verteilte Zeiten", ix Multiuser-Multitasking-Magazin, Heft 2/93, Verlag Heinz Heise, Hannover 1993 DIS14/NET Date: 4th May 2021... -
Page 34: Technical Specifications
20-60 V DC, 250 mA or 9-36 V DC, 500 mA Fuse: T 0.2 A / 250 V or T 1 A, see inscription on rear panel Ambient Temperature: 0 ... 50 C Humidity: max. 85 % Date: 4th May 2021 DIS14/NET... -
Page 35: Rear Panel Connectors
6.1.1 Pin Assignment of the D-SUB Connectors COM0 / COM1 n.c. RS-232: TxD RS-232: RxD n.c. n.c. RS-422: A (COM0: T-, COM1: R-) RS-422: B (COM0: T+, COM1: R+) n.c. 6.2 Rear View LTRX XPORT MAC Addr. xxxxxxxxxxxx DIS14/NET - with Network Port (LAN-XPT) DIS14/NET Date: 4th May 2021... -
Page 36: Time Strings
6.3 Time Strings 6.3.1 Format of the Meinberg Standard Time String The Meinberg Standard Time String is a sequence of 32 ASCII characters starting with the STX (start-of-text) character and ending with the ETX (end-of-text) character. The format is: <STX>D:dd.mm.yy;T:w;U:hh.mm.ss;uvxy<ETX>... -
Page 37: Format Of The Uni Erlangen String (Ntp)
‘A’ announcement of leap second insertion ‘ ‘ (space, 20h) nothing announced leap second insertion ‘L’ leap second is actually inserted (active only in 60th sec.) ‘ ‘ (space, 20h) no leap second is inserted DIS14/NET Date: 4th May 2021... - Page 38 ‘E’ east of Greenwich ‘W’ west of Greenwich hhhh altitude above WGS84 ellipsoid in meters leading signs are replaced by a space character (20h) —————————————————————————————————– <ETX> End-Of-Text, ASCII Code 03h Date: 4th May 2021 DIS14/NET...
-
Page 39: Format Of The Atis Standard Time String
(1..7, 1 = 31h = Monday) checksum in hex, built from all characters including GID, ABS, TSQ, CC, ST, ... <CR> Carriage Return, ASCII code 0Dh (The standard interface configuration for this string type is 2400 baud, 7E1) DIS14/NET Date: 4th May 2021... -
Page 40: Format Of The Sysplex-1 Time String
(00..23) minutes (00..59) seconds (00..59, or 60 while leap second) Quality indicator (space) Time Sync (GPS lock) (?) no Time Sync (GPS fail) <CR> Carriage-return (ASCII code 0Dh) <LF> Line-Feed (ASCII code 0Ah) Date: 4th May 2021 DIS14/NET... -
Page 41: Format Of The Sat Time String
‘!’ announcement of start or end of daylight saving time ‘ ‘ (space, 20h) nothing announced <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah <ETX> End-Of-Text, ASCII Code 03h DIS14/NET Date: 4th May 2021... -
Page 42: Format Of The Spa Time String
(00..59) seconds (00..59, or 60 while leap second) fff milliseconds (000..999) Checksum. EXCLUSIVE-OR result of the previous characters, displayed as a HEX byte (2 ASCII characters 0..9 or A..F) <CR> Carriage Return ASCII Code 0Dh Date: 4th May 2021 DIS14/NET... -
Page 43: Format Of The Computime Time String
(01..07, 01 = monday) hh:mm:ss the current time: hours (00..23) minutes (00..59) seconds (00..59, or 60 while leap second) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah DIS14/NET Date: 4th May 2021... -
Page 44: Format Of The Nmea 0183 String (Rmc)
(01..31) month (01..12) year of the century (00..99) magnetic variation checksum (EXOR over all characters except ‘$’ and ‘*’) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah Date: 4th May 2021 DIS14/NET... -
Page 45: Rohs And Weee
Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. DIS14/NET... -
Page 46: Declaration Of Conformity
8 Declaration of Conformity Konformitätserklärung Doc ID: DIS14/NET-2021-05-04 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product Produktbezeichnung DIS14/NET Product Designation auf das sich diese Erklärung bezieht, mit den folgenden Normen und Richtlinien übereinstimmt:...
