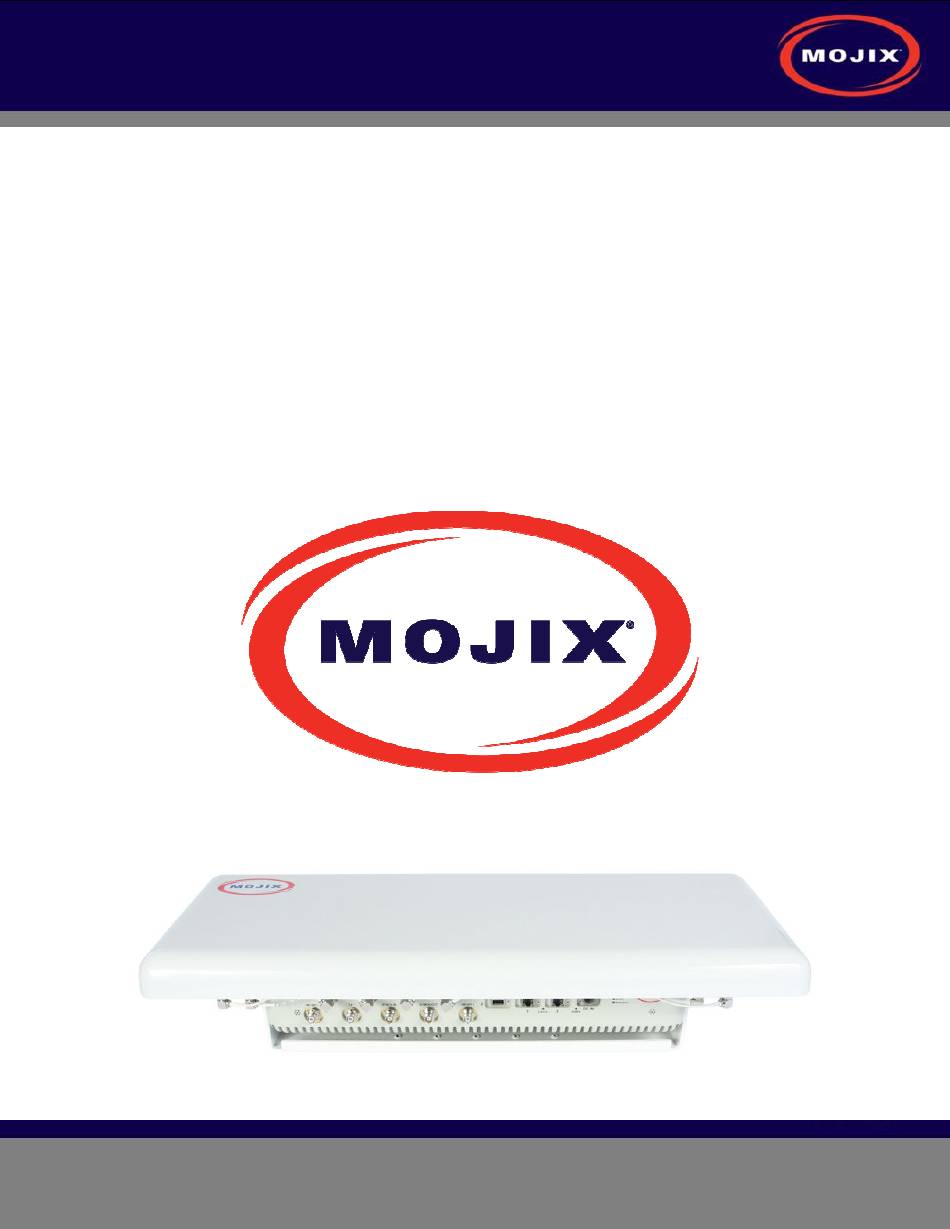

- Page 1 STAR™ 3000 / eNode3000 User Manual STAR3000 / 4PORT ENODE ENM-3004-B SYSTEM USER MANUAL RELEASE 2.0.4 Mojix Incorporated www.mojix.com (877) 886-6549...
- Page 2 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page ii www.mojix.com (877) 886-6549...
- Page 3 VNC or internet browser, and added new Change the User Name and/or Password procedure. 2.2.X-2.03 05/17/2013 Mitchell Hirsch: Added eNode-eXpander Addressing Scheme to section 7 eXpander Installation. 2.2.X-2.04 06/04/2013 Paul Barriga: Added eMux LED indicator descriptions Mojix Incorporated Page iii www.mojix.com (877) 886-6549...
- Page 4 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page iv www.mojix.com (877) 886-6549...
- Page 5 U.S. and international copyright laws. The compilation (meaning the collection, arrangement, and assembly) of all content within this document is the exclusive property of Mojix and is also protected by U.S. and international copyright laws. The content within this document may be used as a resource.
- Page 6 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page vi www.mojix.com (877) 886-6549...
-
Page 7: Table Of Contents
STAR 3000 SYSTEM OVERVIEW ........................5 2.1 S ............................5 YSTEM OMPONENTS 2.1.1 Mojix eNodes: Distributed Transmitters ....................5 2.1.2 STAR Receiver: Centralized Read and Control Point ................... 5 2.1.3 Master Controller ............................5 2.2 STAR: P ........................... 6 HYSICAL NTERFACES 2.3 C... - Page 8 STAR™ 3000 / eNode3000 User Manual 10.3.3 Change the User Name and/or Password ....................44 11 MCON CONFIGURATION ..........................46 12 APPENDIX A: FCC NOTICE, STAR 3000 AND ENODE..................48 13 APPENDIX B: FCC NOTICE, EMUX ........................50 Mojix Incorporated Page viii www.mojix.com (877) 886-6549...
- Page 9 ......................42 IGURE UTHENTICATION EQUIRED IALOG 36: STAR 3000 W UI N ......................43 IGURE ETWORK ETUP 37: STAR W UI N ....................43 IGURE ETWORK ONFIGURATION 38: S .......................... 44 IGURE YSTEM ONFIGURATION Mojix Incorporated Page ix www.mojix.com (877) 886-6549...
- Page 10 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page x www.mojix.com (877) 886-6549...
- Page 11 7: GPIO O ........................... 25 ABLE PERATING PECIFICATION 8: GPIO I ..........................28 ABLE NPUT ERMINAL LOCK 9: MCON S ..........................30 ABLE ERVER PECIFICATION 10: MCON V ......................31 ABLE IRTUAL ACHINE PECIFICATION Mojix Incorporated Page xi www.mojix.com (877) 886-6549...
- Page 12 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page xii www.mojix.com (877) 886-6549...
-
Page 13: Welcome To The Star System
STAR™ 3000 / eNode3000 User Manual 1 Welcome to the STAR System The Mojix STAR 3000 system is a single network element at the enterprise edge. Based on Mojix's innovative distributed architecture, a single system consists of one or more STAR units managing up to 512 low-cost Mojix eNode transmitters. -
Page 14: Terminology
Each individually controlled interrogation space is created by the deployment of single or multiple eNodes and is dynamically sized by the STAR system, which controls each node’s power output. Mojix Incorporated Page 2 www.mojix.com (877) 886-6549... -
Page 15: Table 1: List Of Star 3000 System Terms
(MCON) receives motion detection notification events triggered by the eNode. The STAR Master Controller is a dedicated Linux server, a Mojix software program called Deployment Controller, and a mySQL relational database that is used to store STAR System information and tag data. The Master... - Page 16 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page 4 www.mojix.com (877) 886-6549...
-
Page 17: Star 3000 System Overview
The STAR Receiver utilizes classical, fully active, phased array antennas for enabling visibility into the space dimension. The smart array approach adopted by Mojix is fully based on digital processing techniques – thereby providing very high resolution for estimation of direction of arrival of the signal of interest (SOI) which enables the system to provide accurate location information on the tag position. -
Page 18: Star: Physical Interfaces
1 TX Output TNC Sync: Output synchronization signal to another STAR • 2 Ethernet Interfaces: Control from MCON, Status Monitoring and Tag Read Packets • 2 USB Interfaces (future use) • 1 DC Power Connector • Mojix Incorporated Page 6 www.mojix.com (877) 886-6549... -
Page 19: Cabled System Topology
2. eMux: splitter and amplifier for the RF signal 3. eNode: controls up to 4 antennas to excite tags 4. Master Controller (MCON): application appliance 5. (Optional) Sensor network to detect activity in specific areas Mojix Incorporated Page 7 www.mojix.com (877) 886-6549... -
Page 20: Wireless Star System Topology
Figure 4: Wireless STAR System Topology System Components 1. STAR and power supply, including the command link antenna 2. Wireless 4-port eNode, including the command link antenna 3. Sensor port 4. eNode transmit antennas 5. MCON Mojix Incorporated Page 8 www.mojix.com (877) 886-6549... -
Page 21: Star Receiver Installation
VESA bracket (examples shown below), which is designed to hold 4 times the weight of the STAR unit, should be separately mounted to either a mast or a flat surface. The last step is to attach the STAR bracket to the VESA bracket. Mojix Incorporated Page 9 www.mojix.com... -
Page 22: Figure 5: Vesa Interface
STAR™ 3000 / eNode3000 User Manual Figure 5: VESA Interface Mount Bracket Side View Figure 6: VESA Interface Mount Bracket Rear View Mojix Incorporated Page 10 www.mojix.com (877) 886-6549... -
Page 23: Figure 7: Vesa Interface
STAR™ 3000 / eNode3000 User Manual Figure 7: VESA Interface Mount Bracket End Profile View Mojix Incorporated Page 11 www.mojix.com (877) 886-6549... -
Page 24: Star Power Supply Installation
3. If the wall thickness is at least 1/2" wood (plywood, for example), nails can also be used. Cables must be properly dressed and supported. Both AC and DC cables should be routed with a service loop and must be supported at least once within 18” of the power supply unit. Cables Mojix Incorporated Page 12 www.mojix.com... - Page 25 (a) the conduit is not hanging on the cables, (b) the service loop exists, and (c) there is at least one support/tie-down on the cables between conduit and power supply. This page is intentionally left blank. Mojix Incorporated Page 13 www.mojix.com (877) 886-6549...
-
Page 26: Enode Installation
STAR™ 3000 / eNode3000 User Manual 5 eNode Installation The Mojix eNodes (exciter Nodes) are the building blocks of the Mojix STAR system – defining multiple RFID coverage areas and interrogation zones configured to support each unique business process. Mojix provides a full range of eNode models, from wired to wireless, that are certified in multiple regions and across multiple frequency bands. -
Page 27: Table 2: Enode Connector Specification
Power, Calibrate, Transmit Mounting Configuration: Built-in mounting ears Tag Waveform and Protocols: EPC Class 1 Gen 2 Compliant ISO 18000-6 Compliant Insertion Loss for Daisy Chaining: 0.8 dB Table 3: eNode Operating Specification Mojix Incorporated Page 15 www.mojix.com (877) 886-6549... -
Page 28: Emux Installation
The insertion loss from long lengths of coaxial cables and eNodes is too high. • The wired eNode system layout requires splitting the wiring to multiple wiring branches. • Mojix Incorporated Page 16 www.mojix.com (877) 886-6549... -
Page 29: About Insertion Loss
RF connections as well as the power supply connection. Figure 11: eMux Interfaces The connector and operating specifications are summarized in the tables below. eMux Connector Function Connector Type RF input connector TNC connector RF output connector – 1 TNC connector Mojix Incorporated Page 17 www.mojix.com (877) 886-6549... -
Page 30: Table 4: Emux Connector Specification
EN 301 489-3, EN 302 208-2 Maximum RF Output Power: 22 dBm Maximum Gain: 30 dB Physical Interfaces: Input: 1 TNC female Output: 4 TNC female DC Input: 5-Pin Circular Indicators: Power, Status Mojix Incorporated Page 18 www.mojix.com (877) 886-6549... -
Page 31: Table 5: Emux Operating Specification
STAR™ 3000 / eNode3000 User Manual Specification Type Description Mounting Configuration: Built-in mounting ears Table 5: eMux Operating Specification This page is intentionally left blank. Mojix Incorporated Page 19 www.mojix.com (877) 886-6549... -
Page 32: Expander Installation
0.5 lbs (0.23 kg) Mounting Configuration: Includes 2 brackets Frequency: 850 to 950 MHz Operating Temperature: -30°C to +60°C Storage Temperature: -40°C to +85°C Regulatory: FCC Part 15 (in process), IEC 60950 (in process) Mojix Incorporated Page 20 www.mojix.com (877) 886-6549... -
Page 33: Enode-Expander Addressing Scheme
STAR™ 3000 / eNode3000 User Manual Environmental: IP65 rated Table 6: eXpander Operating Specification 7.1 eNode-eXpander Addressing Scheme 7.1.1 New eNode ID (Present) Figure 13: eNode Port Options 7.1.2 eNode-eXpander Addressing Scheme Mojix Incorporated Page 21 www.mojix.com (877) 886-6549... -
Page 34: Enode To Expander Exciter Id Encoding
STAR™ 3000 / eNode3000 User Manual Figure 14: eNode ID Address Update 7.1.3 eNode to eXpander Exciter ID Encoding Figure 15: eNode ID to eXpander Exciter ID Encoding Mojix Incorporated Page 22 www.mojix.com (877) 886-6549... - Page 35 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page 23 www.mojix.com (877) 886-6549...
-
Page 36: Gpio Installation
The GPIO unit is powered by an interfacing cable from the eNode. The GPIO unit (as shown in the figure below) has a unique ID which is added to the configuration of the Mojix MCON software. Each sensor connected to the GPIO unit has a position ID within the GPIO and this ID is mapped to the eNode in the MCON software. -
Page 37: Product Overview
Figure 17: GPIO Unit Terminal Blocks Each configuration group, made up of one terminal block and one jumper block, allow the configuration of the two sensor circuits and two actuator circuits as required. Mojix Incorporated Page 25 www.mojix.com (877) 886-6549... -
Page 38: Figure 18: Gpio Unit Jumper
The eNode uses an RS-485 type connection to both power and command the GPIO unit. The following figure illustrates how this connection is made. Figure 19: GPIO/eNode Physical Interface Installers will need the following set of tools to perform a proper GPIO installation: Mojix Incorporated Page 26 www.mojix.com (877) 886-6549... - Page 39 Medium-size Phillips screw driver for the cover of the GPIO • Small-size Phillips screw driver for the GPIO terminal block connectors • Wire cutter to shorten connectors and/or connector cables (if necessary) • Mojix Incorporated Page 27 www.mojix.com (877) 886-6549...
-
Page 40: Gpio Cabling
+ 3V Black Shield Table 8: GPIO Input Terminal Block For directions on how to connect sensors and actuators to the GPIO unit, please refer to the GPIO User Guide which is provided separately. Mojix Incorporated Page 28 www.mojix.com (877) 886-6549... -
Page 41: Master Controller Installation
STAR™ 3000 / eNode3000 User Manual 9 Master Controller Installation The Mojix Master Controller (MCON) is an application server capable of running on a number of platforms to support the Mojix STAR system. The MCON is built on a scalable architecture that allows seamless coordination and aggregation of an entire network of distributed STAR systems across one or multiple facilities. -
Page 42: Table 9: Mcon Server Specification
Table 9: MCON Server Specification Alternatively, the MCON is also offered as a virtual machine that satisfies the same configuration as the two hardware platforms. These specifications are detailed in the following table. Mojix Incorporated Page 30 www.mojix.com (877) 886-6549... -
Page 43: Redundancy Summary
9.1 Redundancy Summary The Mojix solution includes a robust redundancy capability within the hardware components of the Master Controller (MCON) as well as for automatic failover redundancy of an entire MCON system to another. These redundancy options are only offered on the Enterprise Class Server hardware. -
Page 44: Figure 23: Redundantp
Once the MCON hardware is mounted and secured, and prior to issuing power to the unit, connect a network cable to the eth0 port as identified in the figure below. The next step is to power on the unit. Figure 24: Identification of Network Interfaces Mojix Incorporated Page 32 www.mojix.com (877) 886-6549... -
Page 45: System Network Setup
Once connected, click on the Configuration pull-down menu and select Network. The following figure shows the Network configuration page. The user can choose between DHCP or a static IP address. Once changes are made, click on the Save button. Changes occur within 30 seconds. Mojix Incorporated Page 33 www.mojix.com (877) 886-6549... -
Page 46: Figure 25: Mcon Network
STAR™ 3000 / eNode3000 User Manual Figure 25: MCON Network Configuration Mojix Incorporated Page 34 www.mojix.com (877) 886-6549... -
Page 47: Star Network Setup
Refer to section 3.6.1 Configure the Security Setting in the user interface guide document: USERGUIDE-MCON-WebInterface for detailed instructions. Figure 26: MCON Security Level Configuration 2. Open an ssh session to the MCON using putty. Mojix Incorporated Page 35 www.mojix.com (877) 886-6549... -
Page 48: Figure 27: Mcon Session In
4. The following steps are needed to be performed only if Firefox is required to be run. If not, proceed to step 5 below. (a) Log on as “edison”. (b) In Firefox, click on the View pull-down menu, select Toolbars, and then select Navigation Toolbar to enable the navigation toolbar (example shown below). Mojix Incorporated Page 36 www.mojix.com (877) 886-6549... -
Page 49: Figure 28: Mcon Session In
Figure 28: MCON Session in VNC (Enable the Navigation Toolbar) (c) Open a new tab and then navigate to the following internet address: http://get.adobe.com/flashplayer/ The Adobe Flash Player download page appears (example shown below). Mojix Incorporated Page 37 www.mojix.com (877) 886-6549... -
Page 50: Figure 29: Adobe Flashp
STAR™ 3000 / eNode3000 User Manual Figure 29: Adobe Flash Player Download Web Page (Part 1 of 2) Click on the Select version to download drop-down menu and select YUM for Linux (YUM). Mojix Incorporated Page 38 www.mojix.com (877) 886-6549... -
Page 51: Figure 30: Adobe Flashp
STAR™ 3000 / eNode3000 User Manual Click the button (example shown below). Figure 30: Adobe Flash Player Download Web Page (Part 2 of 2) The Adobe Flash Player download dialog box appears (example shown below). Mojix Incorporated Page 39 www.mojix.com (877) 886-6549... -
Page 52: Figure 31: Adobe Flashp
/home/edison directory. Click the button. (d) Open a terminal session on the MCON desktop (example shown below) and type the following: sudo yum localinstall –nogpgcheck –disablerepo=* adobe-release-x86_64<type the tab key to autocomplete> Mojix Incorporated Page 40 www.mojix.com (877) 886-6549... -
Page 53: Figure 33: Mcon Desktop
8. You should now have a Firefox browser session connected to the STAR (example shown below). Figure 34: MCON Desktop (Firefox Session) 9. Log in as admin (with no password) and proceed to configure the network settings of the STAR. Mojix Incorporated Page 41 www.mojix.com... -
Page 54: Using An Internet Browser
4. Enter the provided user name and password. The following default credentials can be used to authenticate the connection: User: admin Password: admin Refer to section 10.3.1 Change the Username and Password for procedures on how to change the default username and password. 5. Click the button. Mojix Incorporated Page 42 www.mojix.com (877) 886-6549... -
Page 55: Figure 36: Star 3000 Web
Figure 36: STAR 3000 Web UI Network Setup Page 7. Click on the Configuration Interface hyperlink. The System Configuration page appears (example shown below). Figure 37: STAR Web UI Network Configuration Page 8. Select the desired IP settings for Ethernet 1. Mojix Incorporated Page 43 www.mojix.com (877) 886-6549... -
Page 56: Change The User Name And/Or Password
1. Navigate to the Web UI Passwords section of the System Configuration page (example shown below). Figure 38: System Configuration Page 2. Enter the desired user name in the Administrator Username field. 3. Enter the desired password in the Administrator Password field. 4. Click the button. Mojix Incorporated Page 44 www.mojix.com (877) 886-6549... - Page 57 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page 45 www.mojix.com (877) 886-6549...
-
Page 58: Mcon Configuration
STAR™ 3000 / eNode3000 User Manual 11 MCON Configuration Please refer to the user interface guide document: USERGUIDE-MCON-WebInterface for detailed instructions. Mojix Incorporated Page 46 www.mojix.com (877) 886-6549... - Page 59 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page 47 www.mojix.com (877) 886-6549...
-
Page 60: Appendix A: Fcc Notice, Star 3000 And Enode
TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. Mojix Incorporated Page 48 www.mojix.com... - Page 61 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page 49 www.mojix.com (877) 886-6549...
-
Page 62: Appendix B: Fcc Notice, Emux
The user is cautioned that changes and modifications made to the equipment without approval of the manufacturer could void the user's authority to operate this equipment. Mojix Incorporated Page 50 www.mojix.com (877) 886-6549... - Page 63 STAR™ 3000 / eNode3000 User Manual This page is intentionally left blank. Mojix Incorporated Page 51 www.mojix.com (877) 886-6549...
