Castell KSS User Manual

KSS
S20-FSB-F-CC4-110A
Operation
The Castell KSS Solenoid Controlled Switch is typically used for machine isolation in applications where a machine has to fin-
ish a cycle prior to isolation.

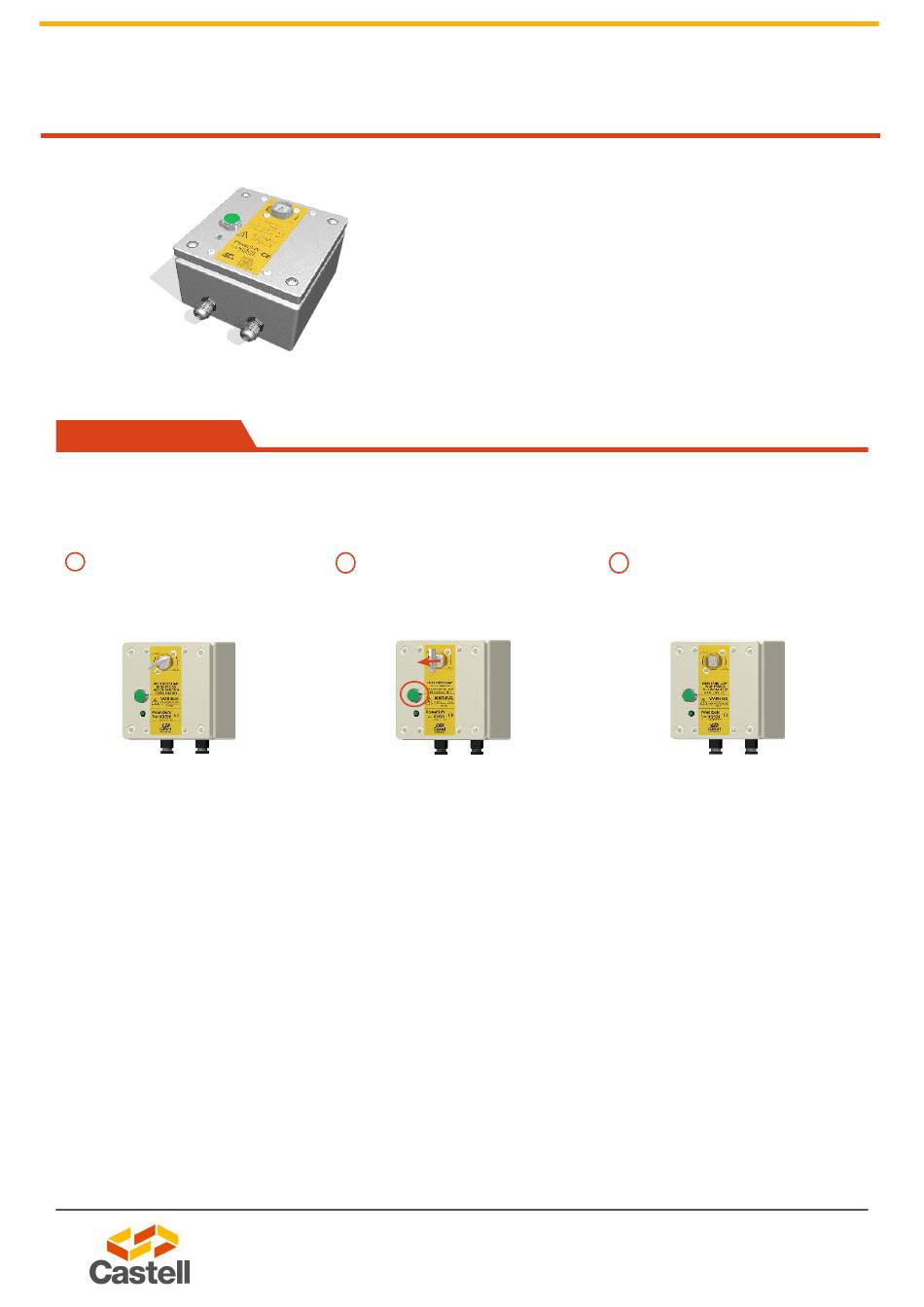

KSS Solenoid Controlled Switch
Key is trapped while power is on,
1
solenoid is de-energised.
1. While the power is on and a machine is running, the key is trapped in the Solenoid Controlled Switch.
2. To release the key, an external signal must be received to energise the solenoid. With the solenoid energised,
the LED will illuminate to confirm that the key can be removed ensuring the power is off.
3. The key can now be removed and taken to open the door lock and gain access to the machine area.
The KSS is available for different switching loads as KSS20 and KSS32 (20 amps power isolation respectively. See order infor-
mation on page 7 for more details).
The KSS is available with different solenoid voltages as AC: 24, 110 or 240 V or DC: 12, 24, 110, 240 V (see order information on
page 7 for more details).
The KSS comes with 4 or 6 contacts as standard with contacts arrangements as 2NO/2NC, 4NC or 3NO/3NC or 6NC.
The KSS is available as a back of panel mount (BOB) and as a surface mount version with an enclosure (FOB).
Solenoid Controlled Switch
User Manual - Original Language Version
An external signal is received
2
and LED is illuminated. Push the
button to energise the solenoid
and remove the key.
Pneutrol International Limited
UK Office
5 Caulside Drive, Antrim, BT41 2DU
United Kingdom
TEL: +44 (0) 28 9448 1800
www.pneutrol.com/industrialspares
The KSS is a heavy-duty solenoid controlled key driven electrical
switch interlock ideal for the controlled isolation or switching
of low current. This product is used where a process can send
a signal to release a key, e.g. a robot has to finish a cycle prior
to isolation. Upon removal of the key, the KSS switch contacts
change to isolate the process. This type of isolator should
be used for short term, off load isolation. The unit is ready
for mounting into an existing panel or for surface mounting
within its own IP65 rated lockable steel enclosure. The KSS
is manufactured from either brass or stainless steel making it
suitable for use in standard or harsh corrosive environments.
3
sales@pneutrol.com
European Office
Unit 6, Saint Anthony's Business Park, Ballymount Road, D22 VW95
Ireland
TEL: +353 (0) 1 4373653
www.pneutrol.com/industrialspares
Solenoid is energised, switch is
locked out and key is free.
