Summary of Contents for Pure Lighting rl Series
- Page 1 Operation Manual Directional Speakers RL 110 Series...
- Page 2 Important Safety Information THIS UNIT MUST BE EARTHED! CAUTION! Service and repair work must only be carried out by qualified personnel. Do not open the case as there is Fuse 0,5 A slow a risk of electric shock. There are no controls or components inside the device that require you to open the case.
-
Page 3: Table Of Contents
Directional Speakers – RL 110 Series RL 110 | RL 110 A | RL 110 A-MP3 | RL 110 AX | RL 110 AX-MP3 | RL 110 PerZonic® Content Models ................... 4 Accessories ..................4 Positioning and Assembly ............... 5 Dimensions RL 110 Series .............. -
Page 4: Models

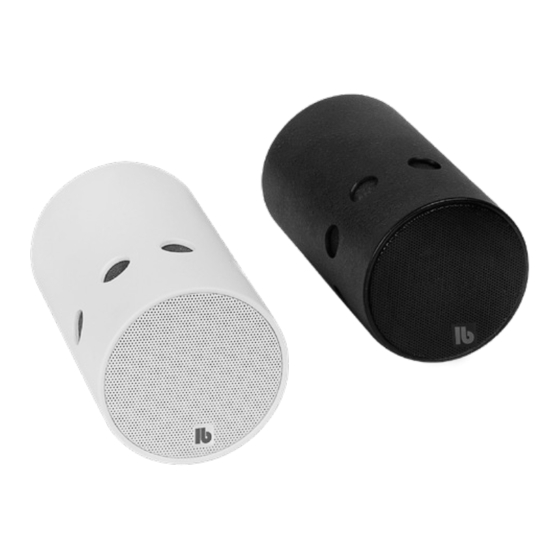

Model Version RAL 9016 Full-range directional speaker RL 110 White RL 110 Black RAL 9005 Passive, 8 ohms RAL 9016 100 V version, RL 110 T White RAL 9005 Power 2.5/5/10 watts RL 110 T Black RL 110 A White RAL 9016 Active directional speaker RAL 9005... -
Page 5: Positioning And Assembly
Positioning and Assembly of the Speakers The directional speakers are usually mounted at a short distance from visitors in the listening zone. The models in the RL 110 series can either be hung from ceilings using a steel wire (e. g. the SR 300) or attached to walls or ceilings using the WH 110 bracket. -
Page 6: Dimensions Rl 110 Series
Dimensions RL Series Front Side RL 110 RL 110 Thread M4 with Thread M4 with eye bolt for ceiling eye bolt for ceiling suspension suspension RL 110 Back Side RL 110 A Back Side RL 110 A-MP3 Back Side RL 110 A MP3... -
Page 7: Technical Data / Back View
Directional Speaker RL 110 The model RL 110 is a passive Speaker with an 8 ohms • Directional speaker with supercardioid pattern impedance. • 80° nominal dispersion • 3” full-range driver The model RL 110 T is a version with 2.5/5/10 watts •... -
Page 8: Rl 110 A / Rl 110 A-Mp3
RL 110 A / RL 110 A-MP3 Active Directional Speaker The directional speaker RL 110 A is an active speaker with 20 watts power and automatic switch-on. A stereo-cinch input, Dip-switches for AUTO ON/STEADY ON and 150 Hz HP (high-pass filter), volume control, LED POWER ON and a connection for the external power supply are located on the rear. -
Page 9: Controls And Functions
Controls and Functions RL 110 A 1 VOLUME Volume control 2 POWER ON 1 VOLUME 4.1 DIP-Switch – The LED lights up, when the 80 HZ/150 HZ HP speaker is switched on. 2 LED 4.2 DIP-Switch – 3 DC IN 15 V POWER ON AUTO ON / STEADY ON Connect the enclosed plug-switch... -
Page 10: Technical Data / Block Diagram
RL 110 AX Active Directional Speaker with Motion Sensor The integrated amplifier has 20 watts power and an The RL 110 AX model features an integrated motion sensor. automatic switch-on (AUTO ON/OFF). A stereo-cinch input, It switches on automatically as soon as a person approa- ches it from the front, playing a sound file from an external Dip-switches for AUTO ON/STEADY ON and 150 Hz HP source. -
Page 11: Controls And Functions
Controls and Functions 4.1 DIP-Switch – 1 VOLUME HP 80 Hz / 150 Hz 4.2 DIP-Switch – 2 LED POWER ON AUTO ON / STEADY ON 5 LINE IN (MONO SUM) 6 MODE 3 DC IN 15 V 6.1 PLAY FILE ONCE 6.2 EXTEND PLAY 6.3 ONLY SPEAKER SWITCHED 6.4 CONTINUOUS... -
Page 12: Rl 110 Ax-Mp3
Active Directional Speaker with integrated Motion Sensor RL 110 AX-MP3 and MP3 Player The integrated amplifier has 20 watts power and an automa- The RL 110 AX-MP3 model features an integrated motion sensor. It switches on automatically as soon as a person tic switch-on (auto ON/OFF). -
Page 13: Controls And Functions
Controls and Functions 4.1 DIP-Switch – 1 VOLUME HP 80 Hz / 150 Hz 4.2 DIP-Switch – 2 LED POWER ON AUTO ON / STEADY ON 5 LINE IN (MONO SUM) 6 MODE 3 DC IN 15 V 6.1 PLAY FILE ONCE 6.2 EXTEND PLAY 6.3 ONLY SPEAKER SWITCHED 6.4 CONTINUOUS... -
Page 14: Rl 110 Perzonic
Active Directional Speaker with automatic Volume Control RL 110 PerZonic® The actively controlled directional speaker RL 110 perZonic • Active directional speaker with automatic volume is a patented speaker system that has been developed for control according to the ambient noise the targeted acoustic irradiation of confined listening areas •... -
Page 15: Controls And Functions
Controls and Functions 1 VOLUME 5 CALIBRATION 2 LED POWER ON 6 REGULATION 10 MICROPHONE 4 LINE IN 3 DC IN 15 V 8 RELEASE 7 ATTACK 9 CAL. OUT 1 VOLUME To ensure you can set the optimum sensitivity 8 RELEASE Volume control level for volume regulation, you can adjust... - Page 16 Further technical informations can be found in the datasheets and on our website: www.lb-lautsprecher.de/en/Directional-Speakers LB Lautsprecher und Beschallungstechnik GmbH info@lb-lautsprecher.de www.lb-lautsprecher.de Rear Page: Exhibition, Stiftung Haus der Geschichte der www.feiner-hoeren.de Bundesrepublik Deutschland @LB_Audio_Components Cover: ZKM Karlsruhe, id3d-berlin themengestaltung 2010 Tel +49 89 1893109-0 · Fax -29 8/2023 Kapellenstr.
