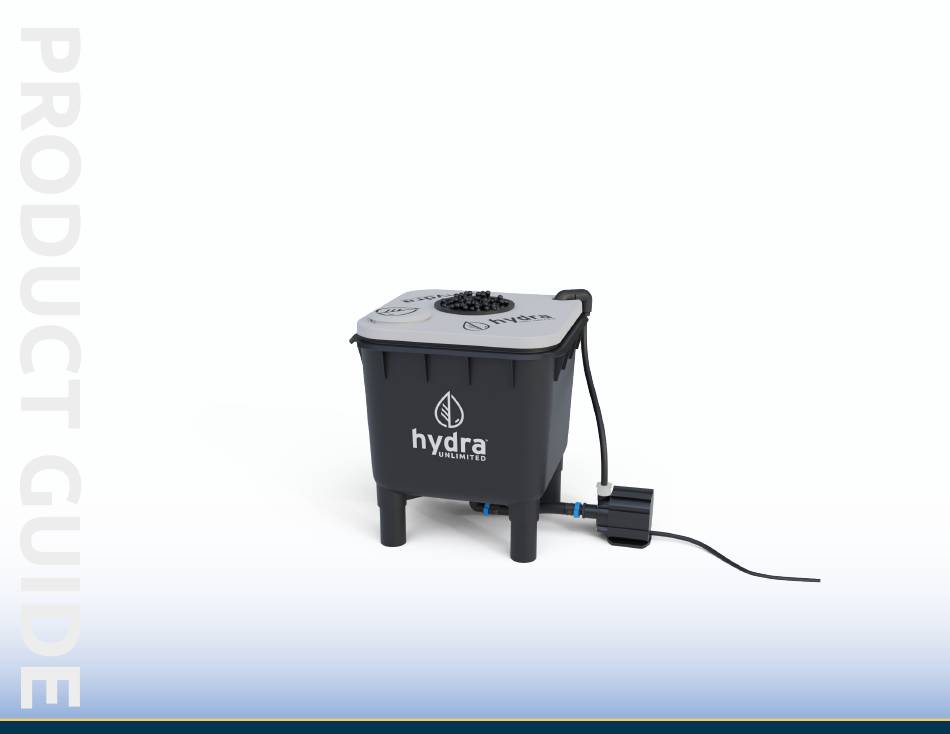

- Page 1 HydraMax ® Product Installation Guide 1 Bucket System HD-LIT-013 05/23...
-
Page 2: System At A Glance
HydraMax 1-Bucket System at a Glance Inspection Port Cover 5.5” Net Pot Inspection Port Circulator 8-Gallon Bucket Spring Clamp Circulator Tubing Bucket Legs Tubing Adapter Pump Drain Fitting Qwik-Lok Hose Qwik-Lok Adapter... -
Page 3: Pump Assembly
HydraMax 1-Bucket Pump Assembly Circulator Start by applying Teflon tape to the pump adapters, then assemble the parts as illustrated. Spring Clamp Before pushing the tubing over the barbs of the pump and circulator, place spring clamps on both ends of the tubing. Finally, slide the spring clamps over the barbs to secure the tubing in place. -
Page 4: Bucket Assembly
HydraMax 1-Bucket Bucket Assembly Insert the drain fitting with gasket from inside the bucket and tighten the nut below. Insert each leg into the bucket and then press or tap the bucket onto a level surface to ensure that each leg... -
Page 5: Final Assembly
HydraMax 1-Bucket Final Assembly Attach the Qwik-Lok hose to the Remember to slide a spring clamp drain fitting and slide the locking onto the hose before pushing the ring into the locked position. Attach hose over the barb. Then, slide the the other end of the hose to the spring clamp over the barb. - Page 6 HydraMax 1-Bucket Latched Position Qwik-Lok Operation To connect a Qwik-Lok hose, with the blue ring in the “latched” position, simply push the hose onto the fitting. Locked Position Once connected, slide the blue ring to the “locked” position. Open Position...
