Summary of Contents for Diamond Multimedia G200

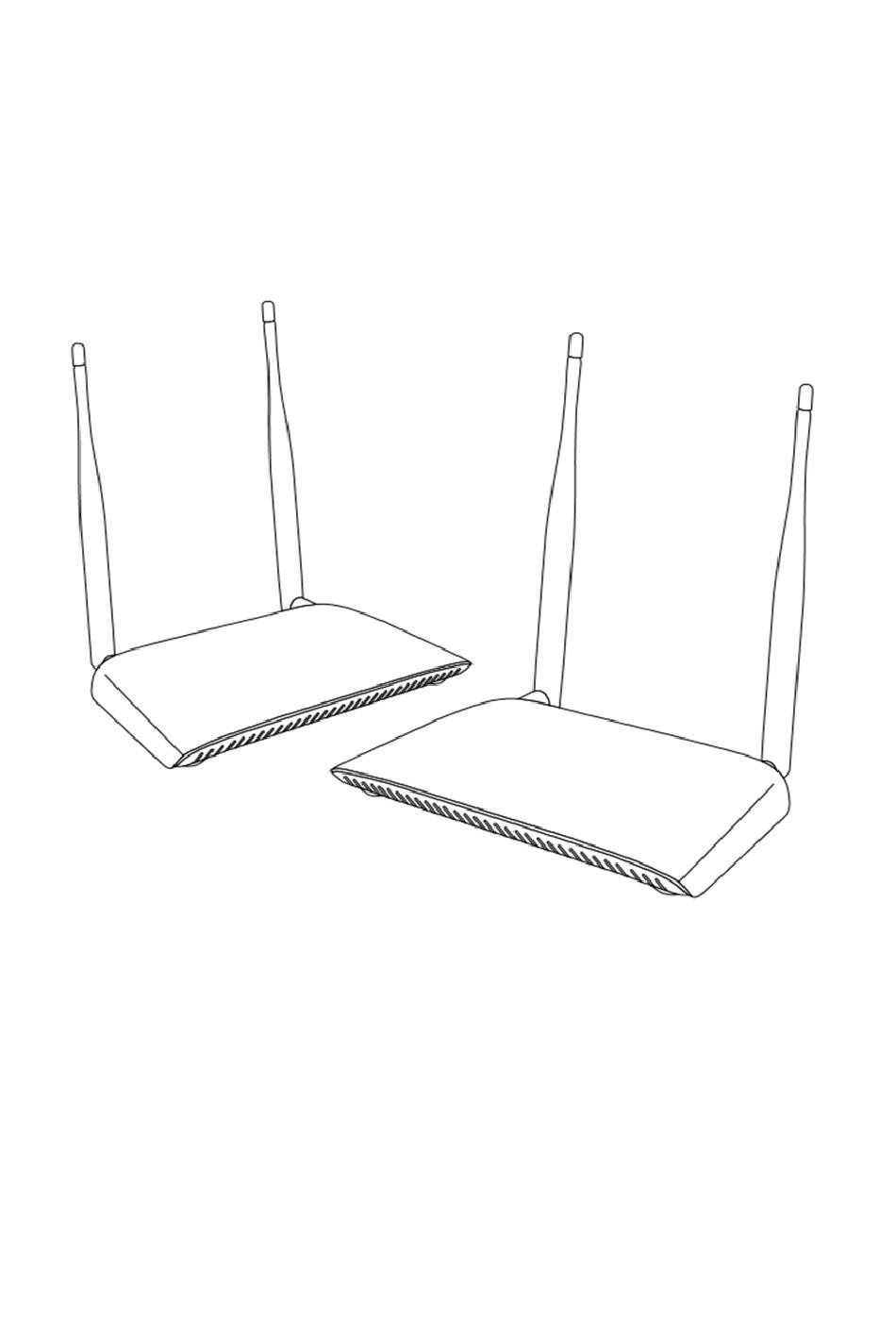

- Page 1 G200 Wireless AV Sender User Guide Please read this User Manual carefully to ensure proper use of this product...
-
Page 2: Important Safety Instructions
Safety Information Safety is Important To ensure your safety and the safety of others, please ensure you read the Safety Information before you operate this product. * Position the cables so that they cannot be walked on or pinched by other items placed on or against them. -
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ............1 Table of Contents ................2 What’s included................... 3 Overview ................... 4 Panel Illustration ................5-6 Connection instruction and Installation ........... 7-11 Technical Specification ..............12 Trouble Shooting ................ 13-14 Contact ....................14... -
Page 4: What's Included
WHAT'S INCLUDED G200(TX/RX) AC/DC Adapter x2 HDMI Cable x2 IR Emitter Cable(ForTX) IR Receiver Cable(For RX) Manual... -
Page 5: Overview
OVERVIEW G200TX (TRANSMITTER) G200RX (RECEIVER) G200 wireless AV sender is a private protocol-based end-to-end solution for interactive, multi-room wireless display andhome video distribution, which allows end users to play any video remotely on another screen with no discernable lag even if the deviceis located in a different room. -
Page 6: Panel Illustration
PANEL ILLUSTRATION G200TX front panel LED Indicators (from right to left) Green Orange Green Orange Blue Blue & Red light (Power indicator):redlight means power is off or abnormal, blue light meanspower is on & HDMI video source is detected. Orange (middle): Blinking means TX/RX are unpaired, stable orange light on when paired. Green (WiFi indicator): Light on when WiFi works, flickering when data transferring. - Page 7 G200RX front panel LED Indicators (from right to left) Green Orange Green Orange Blue Blue & Red light (Power indicator):redlight means power is off or abnormal, blue light meanspower is on & HDMI video source is detected. Orange (middle): Blinking means TX/RX are unpaired, stable orange light on when paired. Green (WiFi indicator): Light on when WiFi works, flickering when data transferring.
-
Page 8: Connection Instruction And Installation
CONNECTION INSTRUCTION Install G200TX Step1: Connect the power adapter (5V, 2.5A) to TX and wall socket, press power switchto "ON", the power LED light will turn on red. Step 2: Connect video source (Receiver, DVD player,PC..) to TX(HDMI In) by HDMI cable which comes with the package Step3: Connect TX (HDMI out) to TV through HDMI cable. - Page 9 Install G200RX Step1:Connect the power adapter (5V, 2.5A) to RX and wall socket, press power switch to "ON", the power LED light will turn on red. Step 2: ConnectRX (HDMI Out) to TV by HDMI cable which comes with the package Step 3: Wait around 50 seconds, the video will be sent from TX to RX.
- Page 10 How to control the device in a different room by using mouse/keyboard 1. Connect the PC/Android TV Boxto TX by using a micoUSB—USB Type A cable. 2. Connect the RX USB jack with a mouse or game controller (USB nano receiver) 3.
- Page 11 Please follow the steps below for connection: 1. Please download and install “TXplayer” app in Google Play Store (Android) or App store (iOS) to smartphone. You may use the QR code below for downloading: 2. After power on TX about 40 seconds, this device will work as a WiFi access point. Do not turn on RX.
- Page 12 Press the icon on the up left corner, it will split the screen, so you could put the phone into your VR glasses. You may press the icon several times to adjust the height of screen to fit in your VR glasses. The VR headset icon in the up left corner will disappear after long press, and will appear again ifyou touch the up left corner of your phone.
-
Page 13: Technical Specification
TECHNICAL SPECIFICATIONS Features of G200TX: Features Description Video Input 1080i/1080p/720p/576p/480p,up to 1080p at Format 60fps,suggest to choose the best resolution that TV can supported to guarantee best display effect Video 1080p at 30fps or 720p at 60fps or other resolutions Compression depends on input Format... -
Page 14: Trouble Shooting
TROUBLE SHOOTING Q1: No Video/Bad Video or Incorrect Video/Video Stuck A1: This device will take about 45 seconds booting time after plug in the main power if all connects are OK, then you should see the signal on the TV on both TX and RX. A2: Please make sure the HDMI in/out are connected correctly, if above connects are OK, then make sure you are using the HDMI cable inside the gift box, which provide noise reduction and shielding and no noise will affect the wireless transmission (be sure to... -
Page 15: Contact
Q4: Can’t get mirror picture on smart phone. If you are using G200TX alone with a smartphone, first please check G200TX is booted correctly byfollowing above steps,then scan the WiFi list on your smart phone, check if WiFi SSID “TX” exists, if yes,please make sure your smart phone is connected to it successfully and obtained the IP address. - Page 16 FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
