OmniCure LX500 Quick Start Manual

OmniCure® LX500
Warning – Refer to Safety Precautions Booklet 035-00636R for all safety precautions prior to use.
User Guide 035-00628R
INSTALLATION PROCEDURES
General Installation
1. Connect the UV LED Head cable to the rear of the Controller.
2. Determine the desired UV LED Head location and position specific to application.
3. Determine the working location of the controller; and ensure any possible
obstructions have been removed.
4. Install the supplied installation clamp to the existing fixture using either the 3 metric
or imperials threaded screw holes. The two end faces of the installation bracket are
identified for metric and imperial thread sizes.
5. Install the UV LED Head into the installation clamp and secure its location/position by
tightening the hex screw. Refer to Section 5.5 (User Manual 035-00628R)

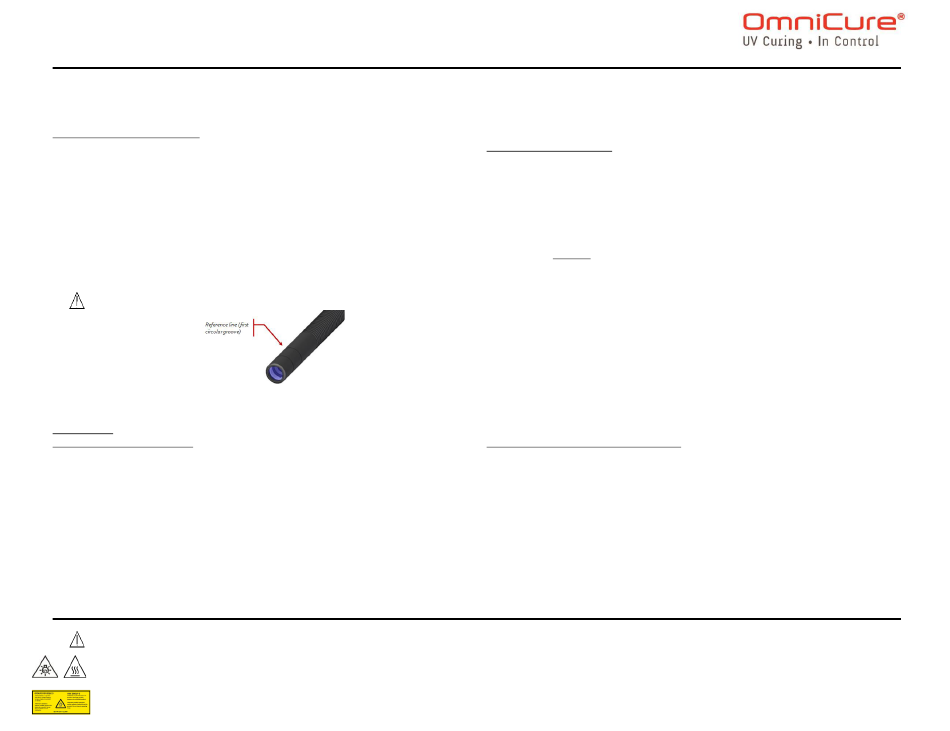

Caution to avoid damage to the UV LED Heads mounting clamps should be
positioned above
6. Attach the appropriate lens and remove the protective cap. To remove the cap, pull
the cap-hat — do not rotate the LED head or cap.
OPERATION
Powering Up/Powering Down
1. Ensure that the UV LED Head is securely mounted in the desired orientation, the UV LED
Head is connected to the back of the Controller, and the PLC remote door lock jumper is
properly installed.
2. Plug in the OmniCure LX500 AC adaptor into a properly grounded electrical outlet
3. Turn the Controller power switch to on "I" (refer to Figure 1).
4. The LCD screen will turn on and the Excelitas Technologies logo and the software
version number will appear. (A warning message may appear indicating that the Head is not
in the same position when last turned on. Press Select to clear the warning message or power
off and correct the connections).
5. When the title screen for the LX500 disappears and the Main Control Panel is displayed,
the system is ready for use.
Warning – Refer to User Manual for all safety precautions prior to use.
Caution, Hot Surface: Due to elevated operating temperatures; avoid contact of the LED head(s) when energized. It is strongly advised to use the clamp type heat sink provided with
the LED Head(s)
Caution eye damage may result from directly viewing ultraviolet light – Protective eye shielding and clothing must be used at all times
RISK GROUP 3 Caution Label: IEC 62471-2: 2009 (Located on side cover of LX500-2 / L500-4- controller chassis)
Quick Start Guide
the reference line.
Main Control Panel Screen
•
The Main Control Panel screen will display the controller configuration( 2 or 4
channel)
•
When a head is plugged into a channel, the timer and intensity will be displayed. Only
timer and intensity are programmable in the Main Control Panel (Empty channels are
disabled)
•
Use the arrow keys on the front panel to highlight the field you wish to change.
The text in the highlighted field will turn red.
•
Press the "select" button on the front panel to select the field you wish to change.
Selected fields will begin to flash.
• Use the up and down arrow keys to change the value of the field. Holding down
an arrow key will increase how fast the value changes.
(Note: If the timer is displaying 0.0 seconds then the unit is in "count up" mode and the
UV LED head will remain on for as long as the enable signal is present.)
•
Intensity is displayed as a % for un-calibrated heads and in W/cm
heads. Refer to Section 8.5 in User Manual (035-00628R) for more details.
•
Closed loop feedback (CLF) will be engaged for intensities below 80%. When "CLF" is
on, an icon will appear beside the intensity bar for that channel.
•
For all other screen indicators, alarms or faults please refer to User Manual 035-
00628R for more details
Running an Exposure from the Controller
1. Set the timer and/or intensity on the Main Control Panel, or use the StepCure screen to
set up multiple step exposure parameters. Refer to Section 6.3, "Defining Exposure
Parameters".
2. Press Start/Stop on the front panel of the Controller to trigger an exposure.
All LEDs are in either count up or countdown mode:
•If the arrow in the status bar is pointing up, the unit is in count up mode. Each UV LED
Head will be on until you press Start/Stop again or one of the other input control signals is
toggled.
•If the arrow in the status bar is pointing down, the unit is in countdown mode. Each UV
LED Head will be on for the duration of the set timer for that channel on the Main Control
Panel screen.
SIDE 1
2 for calibrated
035-00631R Rev.3
