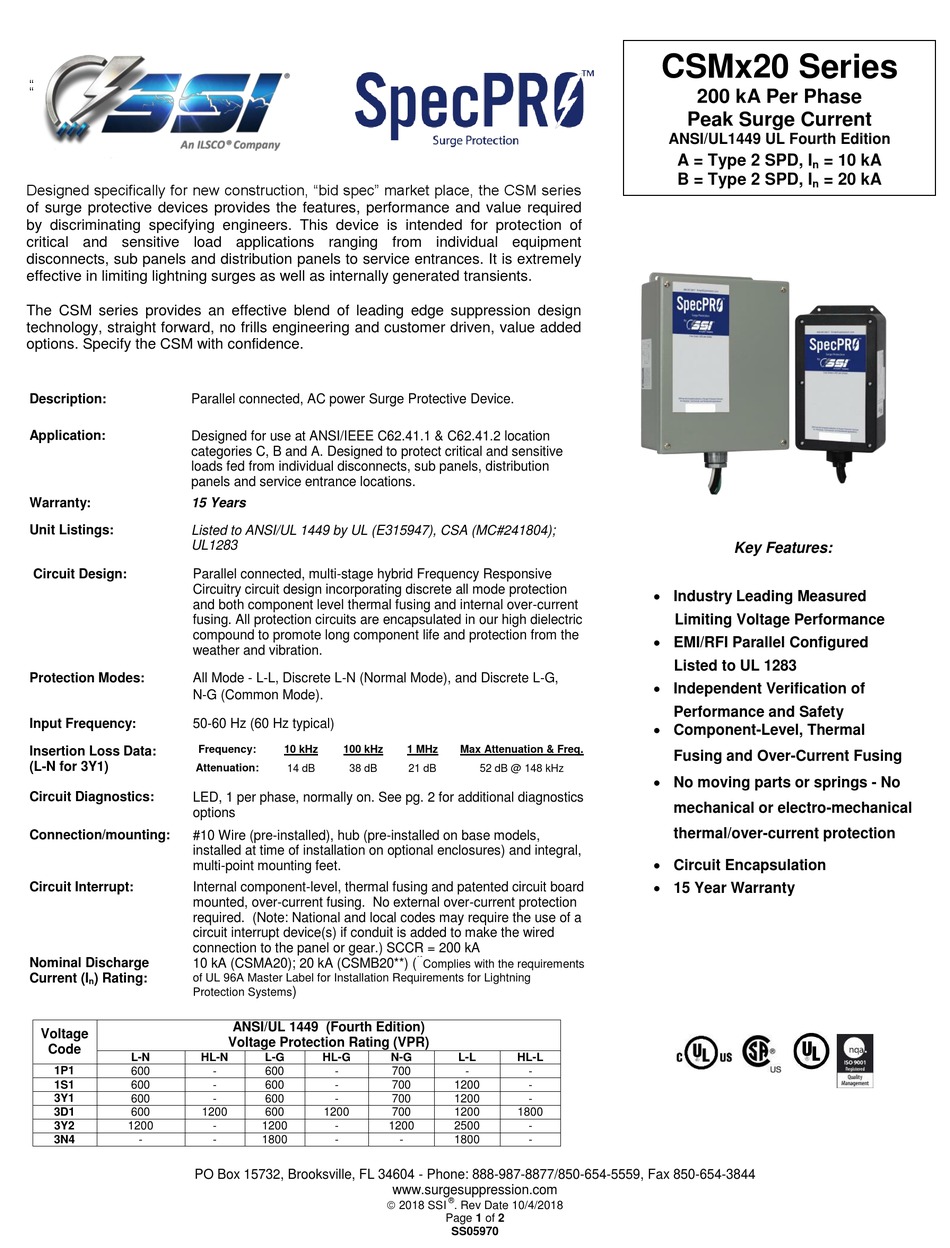

Ilsco SSI SpecPRO CSM 20 Series Quick Start Manual

"
"
Designed specifically for new construction, "bid spec" market place, the CSM series
of surge protective devices provides the features, performance and value required
by discriminating specifying engineers. This device is intended for protection of
critical and sensitive load applications ranging from individual equipment
disconnects, sub panels and distribution panels to service entrances. It is extremely
effective in limiting lightning surges as well as internally generated transients.
The CSM series provides an effective blend of leading edge suppression design
technology, straight forward, no frills engineering and customer driven, value added
options. Specify the CSM with confidence.
Description: Parallel connected, AC power Surge Protective Device.
Application: Designed for use at ANSI/IEEE C62.41.1 & C62.41.2 location
categories C, B and A. Designed to protect critical and sensitive
loads fed from individual disconnects, sub panels, distribution
panels and service entrance locations.
Warranty: 15 Years
Unit Listings: Listed to ANSI/UL 1449 by UL (E315947), CSA (MC#241804);
UL1283
Circuit Design: Parallel connected, multi-stage hybrid Frequency Responsive
Circuitry circuit design incorporating discrete all mode protection
and both component level thermal fusing and internal over-current
fusing. All protection circuits are encapsulated in our high dielectric
compound to promote long component life and protection from the
weather and vibration.
Protection Modes: All Mode - L-L, Discrete L-N (Normal Mode), and Discrete L-G,
N-G (Common Mode).
Input Frequency:
50-60 Hz (60 Hz typical)
Frequency:
Insertion Loss Data:
(L-N for 3Y1)
Attenuation:
Circuit Diagnostics: LED, 1 per phase, normally on. See pg. 2 for additional diagnostics
options
Connection/mounting: #10 Wire (pre-installed), hub (pre-installed on base models,
installed at time of installation on optional enclosures) and integral,
multi-point mounting feet.
Circuit Interrupt: Internal component-level, thermal fusing and patented circuit board
mounted, over-current fusing. No external over-current protection
required. (Note: National and local codes may require the use of a
circuit interrupt device(s) if conduit is added to make the wired
connection to the panel or gear.) SCCR = 200 kA
Nominal Discharge 10 kA (CSMA20); 20 kA (CSMB20**) (
Current (I ) Rating: of UL 96A Master Label for Installation Requirements for Lightning
n
Protection Systems
Voltage
Code
L-N HL-N
1P1 600
1S1 600
3Y1
600
3D1 600 1200
3Y2 1200
3N4
-
PO Box 15732, Brooksville, FL 34604 - Phone: 888-987-8877/850-654-5559, Fax 850-654-3844
10 kHz 100 kHz
14 dB 38 dB
)
ANSI/UL 1449 (Fourth Edition)
Voltage Protection Rating (VPR)
L-G HL-G N-G
- 600 -
- 600 -
- 600 -
600 1200
- 1200 - 1200
- 1800 -
 2018 SSI
1 MHz Max Attenuation & Freq.
21 dB 52 dB @ 148 kHz
**
Complies with the requirements
L-L HL-L
700 - -
700 1200 -
700 1200 -
700 1200 1800
2500 -
- 1800 -
www.surgesuppression.com
®
. Rev Date 10/4/2018
Page 1 of 2
SS05970
CSMx20 Series
200 kA Per Phase
Peak Surge Current
ANSI/UL1449 UL Fourth Edition
A = Type 2 SPD, I = 10 kA
n
B = Type 2 SPD, I = 20 kA
n
Key Features:
 Industry Leading Measured
Limiting Voltage Performance
 EMI/RFI Parallel Configured
Listed to UL 1283
 Independent Verification of
Performance and Safety
 Component-Level, Thermal
Fusing and Over-Current Fusing
 No moving parts or springs - No
mechanical or electro-mechanical
thermal/over-current protection
 Circuit Encapsulation
 15 Year Warranty
