Summary of Contents for ETNA VW842N

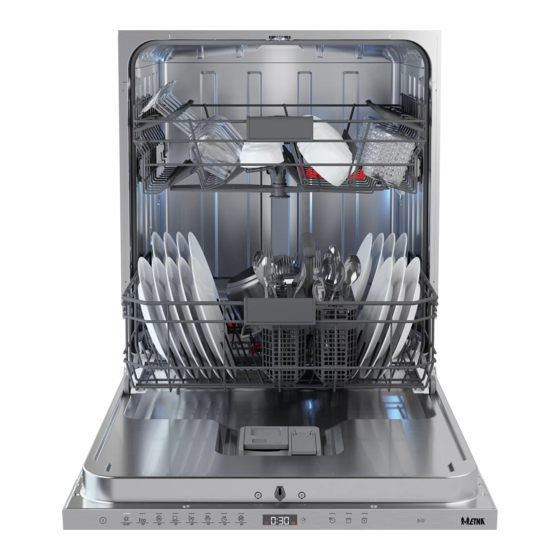

- Page 1 User manual Dishwasher VW842N...
-
Page 2: Table Of Contents
Contents Your dishwasher ........................Safety instructions ........................Installation ..........................Overflow guard function ......................Winter storage/transport ......................Packaging ..........................Disposal ............................ Before washing for the first time ................... Water hardness ......................... Basic settings ........................... Top up with rinse aid ........................ Top up with salt ........................Greener dishwashing ...................... - Page 3 Installation ..........................Safety instructions ........................Setup ............................Drainage connection ......................... Connection to water supply ...................... Electrical connection ......................... Service ............................. Technical data and energy labelling ..................Technical data ........................... Information for consumers ......................Information for test institute ......................
-
Page 4: Your Dishwasher
Your dishwasher Install the dishwasher, see the chapter Installation. Then open the door and press The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See the chapter Before washing for the first time. On/Off Start/Stop Display... -
Page 5: Safety Instructions
Safety instructions Read the operating instructions and keep them in a safe place! Number of standard place settings: 14 Never use the dishwasher for any purpose other than that specified in these operating instructions. Do not load the dishwasher door or dishwasher baskets with anything other than dishes. -
Page 6: Installation
WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. WARNING! Children must be supervised – dishwasher detergent is corrosive! Installation See the chapter Installation. Overflow guard function The overflow guard starts pumping out the machine and turns off the water supply if the water level in the dishwasher exceeds the normal level. -
Page 7: Before Washing For The First Time
Before washing for the first time Water hardness In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using German degrees of water hardness (°dH), French degrees of water hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l). -
Page 8: Basic Settings
Basic settings The first time the dishwasher is switched on, it is important that you choose the right settings to ensure good dishwashing results. See the chapter Settings. Set up: Rinse aid Water hardness Top up with rinse aid Drying is faster and a better result is achieved if you use rinse aid. You will also achieve a better dishwashing result with clear and spotless dishes. -
Page 9: Greener Dishwashing
Greener dishwashing Save energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption. Simply scrape off large food particles before loading the dishwasher. -
Page 10: Loading The Dishwasher
Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high heat, others can be damaged by dishwasher detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. - Page 11 3 positions Knife stand Raising and lowering the upper basket 1. Pull out the upper basket. 2. Grab the sides of the upper basket with both hands and lift it up. 3. If the upper basket is raised while in the top position, it will drop to the bottom position. Note that both sides of the basket must always be set to the same height.
-
Page 12: Lower Basket
Lower basket Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket. Adjustable plate supports The adjustable plate supports can be folded down to make it easier to load pots and bowls. Cutlery basket Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. - Page 13 Flexible cutlery basket The cutlery basket is flexible and can be separated into two parts, which can then be attached to the side of the lower basket.
-
Page 14: Using The Dishwasher
Using the dishwasher Add detergent Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener, so use detergent and rinse aid doses suitable for soft water. Too much detergent can result in less effective dishwashing and also entails greater environmental impact. -
Page 15: On/Off
On/Off Start/Stop Display NOTE! The control panel only reacts to use when the door is open. On/Off Open the door and press . Also turn on the water tap if it is turned off. Select program Select a program to suit the type of dishes and how dirty they are. Eco 55° is always pre-selected. Press the desired program until it is activated, which is indicated by an indicator light. -
Page 16: Select Option
Hygiene 70° This program is ideal to use where demands on hygiene are extra high, e.g. for baby bottles and cutting boards. The temperature is high both in the main wash and in the final rinse. Night 55° A quieter dishwashing program, suitable for running at night. The program time is extended. Quick 35°... -
Page 17: Start/Stop
The Automatic door opening option is pre-selected for some programs. Not available for: Hygiene 70°, Self-clean NOTE! For the best drying results, do not close the door before the drying phase has finished and the machine has automatically switched off. WARNING! The dishwasher door must not be blocked or closed when opened automatically. -
Page 18: Power Failure
Power failure If the dishwasher is turned off due to a power failure when a dishwashing program is running, the program continues when power is restored. If the power is cut during drying, the program is interrupted. If the door is open for more than 2 minutes during drying, the program is interrupted. Once the program has finished The end of the program is indicated by one short signal from the buzzer. -
Page 20: Settings
Settings Open the door and press To open the dishwasher's settings menu, press and hold until SEt is shown on the display. to step through the menu. Open the dishwasher's settings menu Select alternative Confirm / Next setting To exit the menu, step through it or press Settings Alternatives Sounds... - Page 21 Settings Alternatives Pre-selected at factory: 00 Interior light when 00 (Off) Select whether the interior light is to be switched on when the dishwasher is 01 (On) the dishwasher is turned off and the door is opened. (If switched off the dishwasher is turned on, the interior light is always switched on when the door is opened.) Error readout...
-
Page 22: Care And Cleaning
Care and cleaning Top up with rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Lift up to open Press to close 1. Open the rinse aid compartment lid. 2. Carefully top up with rinse aid to the level marked MAX. 3. -
Page 23: Clean The Filters
Clean the filters Coarse filter The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. Coarse filter 1. -
Page 24: Cleaning The Spray Arms
Cleaning the spray arms Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The spray arms also have holes underneath. To facilitate cleaning you can remove the spray arms. Remember to fit them firmly back into place afterwards. -
Page 25: Cln - Run The Self-Clean Program
CLn - Run the Self-clean program Dishwasher tub The dishwasher tub is made of stainless steel and is kept clean through normal use (when used regularly). If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run Self-clean with two tablespoons of citric acid in the detergent compartment (with no dishes in the machine). - Page 26 7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for a while and check that the connection is watertight. Outer filter on inlet hose Gasket...
-
Page 27: Troubleshooting
Troubleshooting Error messages Action Overfilling water Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, contact your nearest service centre. Water outlet fault See "Water remains in the dishwasher" under "Problem" in the table below. If the problem persists, contact your nearest service centre. - Page 28 Problem Possible causes Action The door lock does not click in- Check the door lock. If it does to place and lock. not click into place and lock, open the door. Press and hold Automatic door opening until the display starts counting down.
- Page 29 Problem Possible causes Action Dishes loaded incorrectly. Do not cover porcelain with large bowls or the like. Avoid placing very tall glasses in the corners of the baskets. See the chapter Loading the dishwash- Glasses and cups have toppled Place dishes to sit steady. over during the program.
- Page 30 Problem Possible causes Action The dishes have a sticky Rinse aid dosage setting too Reduce the dosage. See the white/blue film. high. chapter Settings. If you have very soft water, you may want to dilute the rinse aid 50:50 with water.
- Page 31 Problem Possible causes Action Grease deposits in the dish- Low temperature programs Select a program with a high washer. have been selected for a pro- temperature to dissolve grease longed period. on very dirty dishes, such as In- tensive 70°. Or run a self-clean- ing program.
-
Page 32: Installation
Installation It is important that you read through and follow the instructions and directions below. Conduct installation and connection in accordance with the separate installation instructions. [mm] Remove the plastic strips if the recess dimension is 596-598 mm. Exercise caution! The edges may be sharp. Wear protective gloves! Cover door length. -
Page 33: Drainage Connection
Make sure the area on which the dishwasher is to be installed is firm. Adjust the adjustable feet so that the dishwasher is level. If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation from the dishwasher. Mount the protective film beneath the worktop and up around the edge. -
Page 34: Electrical Connection
Electrical connection Information about the electrical connection can be found on the serial number plate. This specification must match the electricity supply. The dishwasher must be connected to an earthed socket. The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. -
Page 35: Service
Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help, see www.etna.nl. Our website also has information about spare part availability and what you can repair yourself. -
Page 36: Technical Data And Energy Labelling
In accordance with the EN 60436 standard. Information for consumers Information about your product can be found at www.etna.nl, where you will also find a link to the European Product Database for Energy Labelling, EPREL. Or else visit https://eprel.ec.europa.eu directly. Follow the instructions to search by model name. - Page 37 880009-a1 We reserve the right to make changes.
