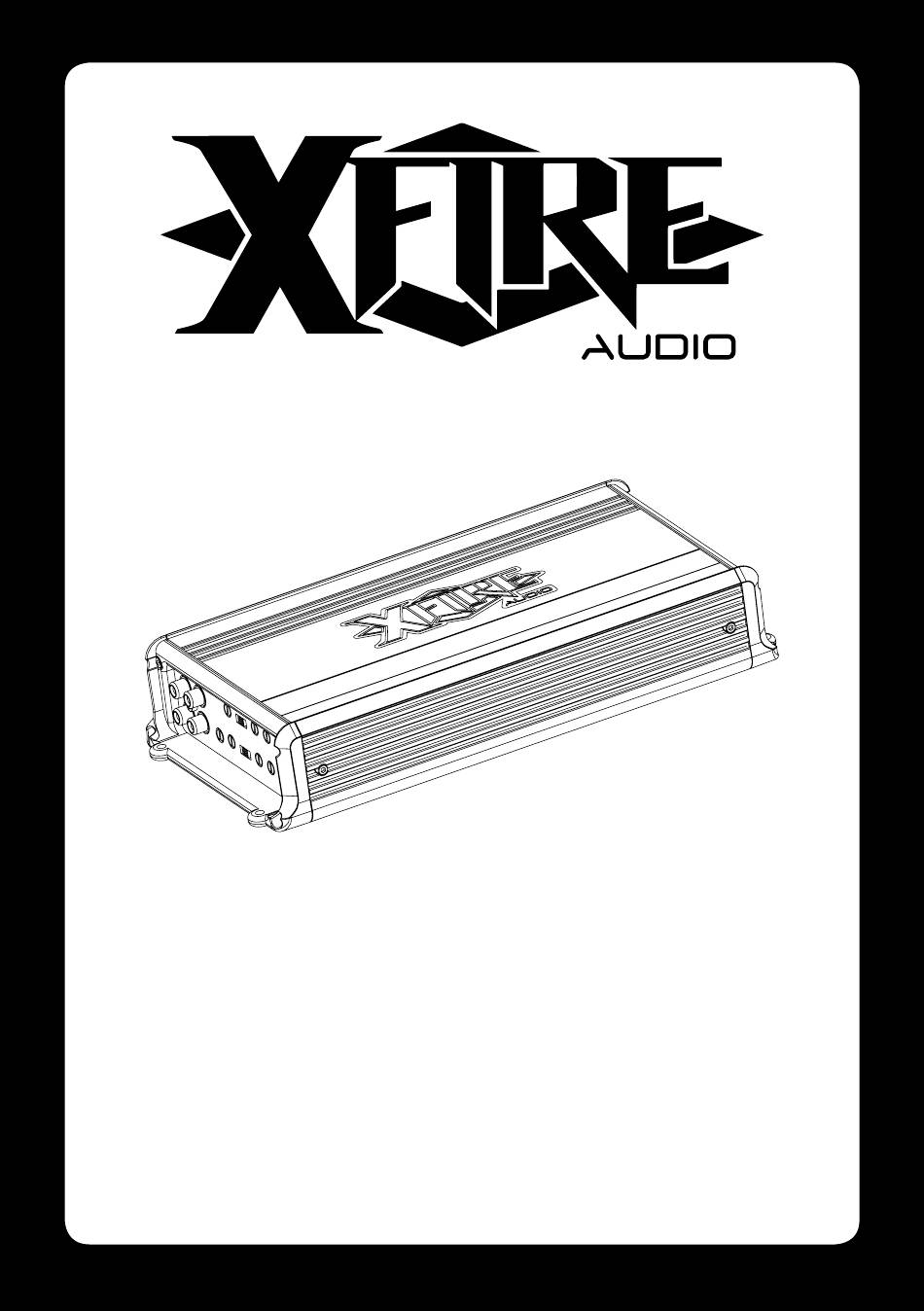

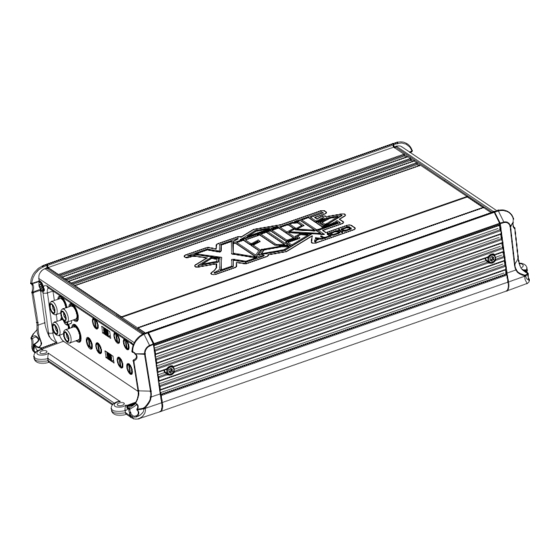

- Page 1 E-8004D Mobile power amplif ier Owners manual XFIREAUDIO.COM...
- Page 2 Purchase Date Retailer Model # Serial # Features E series amplifiers The result of XFIRE AUDIO’s commitment to design and build sleek, elegant, yet seriously powerful amplifiers able to fit into any audio application with ease. • Ultra efficient 4 channel fullrange Class D topology design with 5 volt inputs and 2 ohm stability. • Extensive customization controls like HP/LP/BP crossovers make it easy to design the perfect soundstage.
-
Page 3: Specifications
E series LIFE AMPLIFIED Specifications RMS Power @ 2Ω, 14.4V 1% THD 4x 200W RMS Power @ 4Ω, 14.4V 1% THD 4x 125 W RMS Power @ 4Ω Bridged, 14.4V 1% THD 2x 400W Damping Factor >200 Frequency Response 20Hz - 20Khz (-3dB) Signal/Noise Ratio @ Rated Power 91dB (A-Weighted) Input Sensitivity 0.2 - 5V Operating Voltage 8 - 16V DC X-over Functions LPF /HPF / BPF X-over Frequency Adjustment 20Hz - 5kHz X-over Slope 12dB/Octave Recommended Fuse rating 80 Amp Dimensions : H x W x L 54 x 140 x 275 mm... -
Page 4: Installation
E series LIFE AMPLIFIED Installation Actual installation of an E series amplifier is not a difficult task. However, it takes a few tools, considerable care and precise attention to the instructions in this manual. If you doubt that you are up to the task, or your car proves to require special installation skills, we recommend having the work done by an authorized XFIRE AUDIO installation professional. Safety instructions • Always disconnect the negative (“-”) battery terminal before making any connections to the amplifier. • Fuse the positive (“+”) power lead, with the right value fuse within 30cm of the battery connection, the fuse rating for each E series amplifier is given in the specifications. •... - Page 5 E series LIFE AMPLIFIED An E series amplifier needs a few things to be happy in a car : Ventilation and a “ clean” source of power. VENTILATION Is important with any mobile amplifier. An amplifier can generate a considerable amount of heat when driven hard, and car interiors can get quite hot in the summer. Be careful when choosing a spot to mount the amplifier.
- Page 6 E series LIFE AMPLIFIED Connections Remote turn on FUSE Use recommended BATTERY HEAD UNIT Ground fuse rating GROUND (-) Ground connection should be made to the vehicle’s chassis with a clean, bare metal, strong connec- tion keep the length of the ground wires as short as possible. Always use the same wire thickness as used for the positive 12V DC connection.
- Page 7 E series LIFE AMPLIFIED E-8004D - Speakerwiring Stereo Configuration (Speakers) - Mono Bridged Configuration (Subwoofers) 4 - 8 Ohm Sub 2 - 8 Ohm Speaker 4 - 8 Ohm Sub 2 - 8 Ohm Speaker LOUDSPEAKER OUTPUTS This is where you connect your speakers. When connecting loudspeakers to an E series amplifier, please be sure to observe proper polarity.
- Page 8 E series LIFE AMPLIFIED Controls INPUTS (RCA) These inputs are connectd to the source unit’s outputs. 2ch/4ch Switch This control is used to select how many inputs the amplifier uses, two or four inputs. GAIN This control is used to match the amplifier’s input sensitivity to the source unit’s output. X-OVER SWITCH This switch is used to select the filter for the respective amplifier channels, Low Pass (LPF)/ Band Pass (BPF), Fullrange (FULL) or High Pass (HPF).
-
Page 9: Signal Input
E series LIFE AMPLIFIED Signal Input Tp to prevent noise and RF inductance, use only high quality shielded audio cables that are no longer than necessary. Try to avoid running these low-level cables near cellular phone equipment, electronic management systems or other potential interference sources. -
Page 10: In Case Of Difficulty
Almost all problems can be eliminated by re-checking connections and settings in your system. Follow the steps below as a guide. If you cannot solve the problem, consult your XFIRE AUDIO installation professional. NO SOUND - POWER LED IS OFF Check the inline fuse(s) in the positive power cable, replace these if needed. - Page 11 E series LIFE AMPLIFIED Notes : XFIREAUDIO.COM...
- Page 12 Some states do not allow limitations on the length of an implied warranty, thus limitations may not apply. No person shall assume for XFIRE AUDIO any other liability in connection with the sale of products.
