Operation & Maintenance Manual
Operation & Maintenance Manual

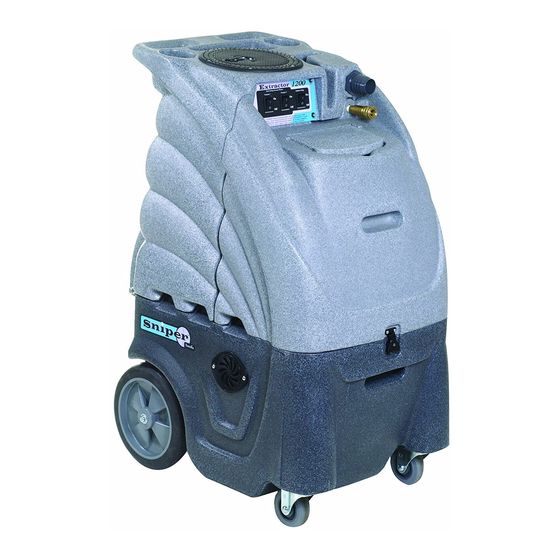

6 Gallon Carpet Extractor
Always obtain instruction form an authorized dealer. Unauthorized repair will void the warranty
Models
2-100
3-100
2-200
3-200
US & Foreign Patents Pending
US & Foreign Patents Pending
The design features herein are protected under the laws of the
The design features herein are protected under the laws of the
United States Patent and Trademark Office
Super Cooling Ducting System
2-100-H
3-100-H
2-200-H
3-200-H
Advertisement
Table of Contents
Related Manuals for Sandia Plastics Sniper 2-100
Summary of Contents for Sandia Plastics Sniper 2-100
- Page 1 EXTRACTOR EXTRACTOR Operation & Maintenance Manual Operation & Maintenance Manual 6 Gallon Carpet Extractor Always obtain instruction form an authorized dealer. Unauthorized repair will void the warranty Models 2-100 2-100-H 3-100 3-100-H 2-200 2-200-H 3-200 3-200-H US & Foreign Patents Pending US &...
-
Page 2: Setup And Operation
If moisture does enter the vacuum motors it is necessary to WD-40 the motors. Remove the float assembly from the stand pipe and turn on both vacuum motors. Spray a five second burst of WD-40 into the stand pipe and continue to let the vacuum motors run for three minutes. -
Page 3: Maintenance
200 and 500 models: Fill the solution tank with 1/2 gallon of 50/50 mix of antifreeze and water and follow the priming instructions in the set up and operation section of this manual. Vacuum excess mixture out of the solution tank into the recovery tank and dispose of antifreeze properly. -
Page 4: Troubleshooting Guide
6. Access lid not sealed 7. Vac hose clogged 8. Air intake grid clogged 9. Leak in recovery tank 10. Water coming out of vacuum exhaust 1. Extension cord not plugged in 2. Switch not in the “ON” position 3. Building circuit overloaded 4. - Page 5 80-0012 80-0012 Hatch Cover 10-0804 Male Quick Discon- Male Quick Discon- 10-0870 Rebuild Kit for 500psi BPR 80-0061 Switch for Vacuum/ Switch for Vacuum/ Switch for Vacuum/ 10-0803 Motor Gasket 10-1030 2-Stage 10-1030 2-Stage 10-1030-S 3-Stage 200psi Pump Tec 10-0869...
- Page 6 Model 2-100 Wiring Diagram Wiring Diagram PUMP 110VAC WHITE POWER SUPPLY GREEN 1- Solution Intake 2- Vacuum Hose 3- Vacuum Motor 1 4- Vacuum Motor 2 5- Vacuum Motor Manifold 6- 100psi Solution Pump 7- Motor Cooling Ducting...
- Page 7 110VAC POWER WHITE SUPPLY Models 3-100 110VAC WHITE POWER SUPPLY GREEN...
- Page 8 Models 2-100-H 3-100-H YELLOW 110VAC POWER SUPPLY ORANGE BLUE 110VAC POWER SUPPLY HEATER 1 HEATER 2 HEATER 2...
- Page 9 110VAC WHITE POWER SUPPLY GREEN PUMP Models 2-200...
- Page 10 110VAC POWER WHITE SUPPLY Models 3-200 110VAC WHITE POWER SUPPLY GREEN...
- Page 11 YELLOW 110VAC POWER SUPPLY Models 2-200-H, 3-200-H ORANGE BLUE 110VAC POWER SUPPLY HEATER 1 HEATER 2...
- Page 12 110VAC POWER WHITE SUPPLY GREEN PUMP Models 2-500, 3-500 110VAC WHITE POWER SUPPLY GREEN...
- Page 13 YELLOW 110VAC POWER SUPPLY Models 2-500-H, 3-500-H ORANGE BLUE HEATER 1 HEATER 2 HEATER 2...
