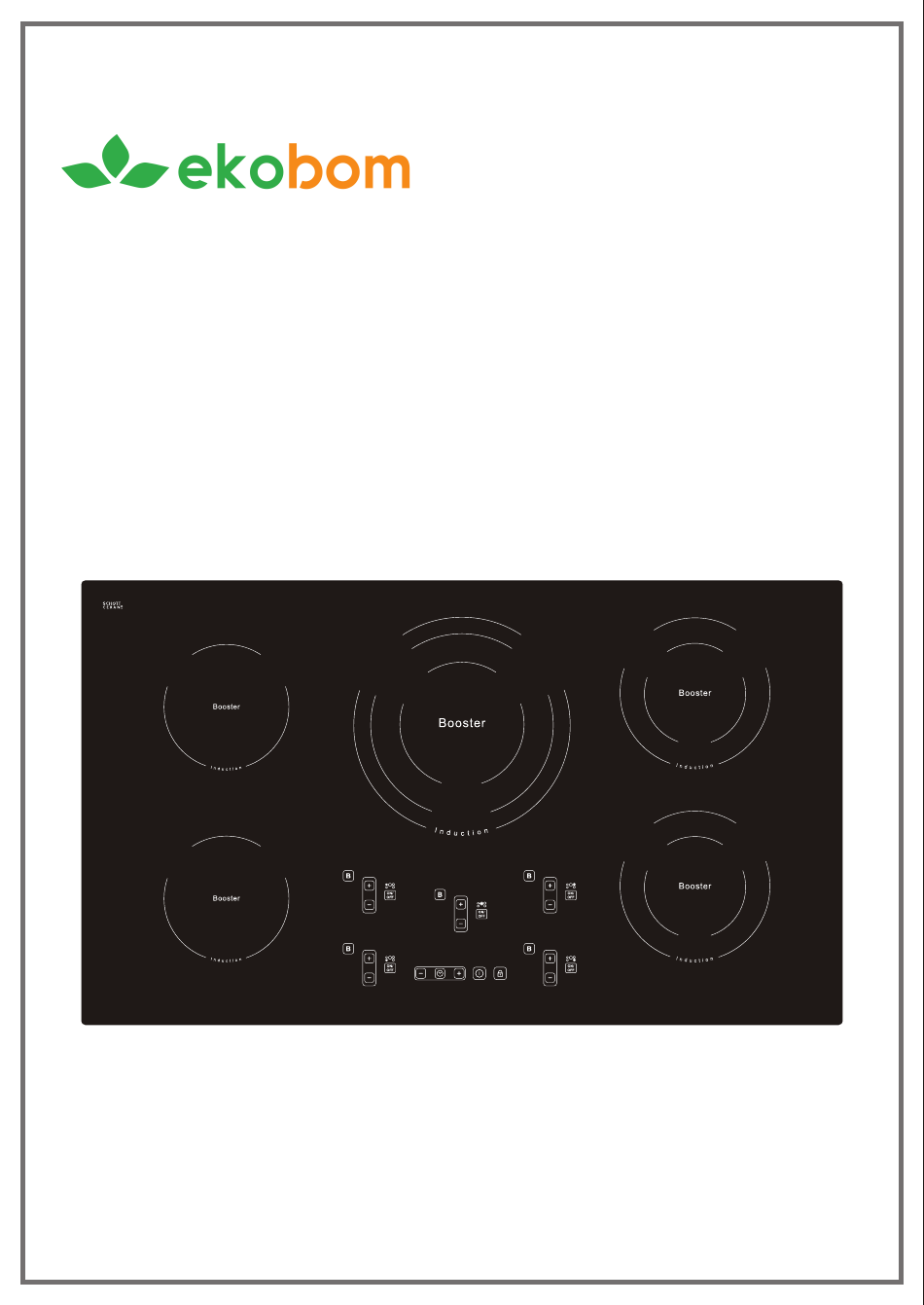

- Page 1 Model: BO395AI/E INSTRUCTION MANUAL AND CARE GUIDE Five Burner Induction Hob...
- Page 2 TABLE OF CONTENTS Thank you for purchasing our Five Burner Induction Hob. Please read the entire instruction manual prior to using your unit. Before installation, record the model and serial number as found on the bottom of your hob. If you require service or call with a question, please have this information ready.
-
Page 3: Important Safety Instructions
Important Safety Instructions IMPORTANT Keep these instructions handy for future use. The appliance is manufactured in compliance with the relevant safety standard. WARNING Read all instructions carefully before installation and operation of the appliance. WARNING Failure to follow these warnings could result in a fire or explosion that causes property damage, personal injury or death. - Page 4 Important Safety Instructions WARNING IMPORTANT Cleaning Safety Environment of Unit To reduce the risk of fire, do not let any Do not use steam cleaners or high- objects(glass, paper, etc.) obstruct the pressure cleaners to clean the h inlet and outlet of your Hob. as this may result in electric shock.
- Page 5 Important Safety Instructions Environment of Unit Do not put detergents or flammable To reduce risk of burns, ignition of materials in the equipment installed flammable materials, and spillage due under the hob . to unintentional contact with cookware, the cookware handles should be turned While cooking any overflowed fat or oil inward and not extend over adjacent on the h...
- Page 6 Important Safety Instructions Service and Repair Safety WARNING Do not repair or There are no user serviceable parts on replace any part of the appliance this appliance. Only an authorized unless specifically recommended in service representative should attempt the manual. All other services should to service your hob.
-
Page 7: Product Features
Product Features 1. Left rear cooking e lement 2. Left front cooking element 3. Right rear cooking element 4. Right front cooking element 5. Center cooking element 6. Left rear cooking element control area 7. Left front cooking element control area 8. - Page 8 Product Features 14. Power boost 15. Power level and Residual heat display 16. Increase power 17. Decrease power 18. Cooking element On/Off 19. Minute timer 20. Minute timer setting Down 21. Minute timer setting Up 22. Minute timer display window and cooking element symbol...
-
Page 9: Specifications
Product Features Specifications Model BO395AI/E Product dimension wxdxh ) mm 915 x 534 x 55 Min.886 Max.900 Cut-out dimension(wxd) mm Min. 499 Max.510 Voltage (volts) 220-240 Frequency (Hz) Total power (Watts) 9000 Minimum circuit breaker Amperage Elements Front Left 1200W/1500W... -
Page 10: Using The Hob
Using The Hob Controls Lock To Turn On The Hob To Lock While in the Standby mode, touch the Main Power key pad, a “beep” will Controls Lock is activated when the sound and the indicator light above the unit is off: Controls Lock prevents Power key pad will be lit up, indicating activation of any sensor key, except for that the induction hob functions are... - Page 11 Using The Hob Operating The Cooking Elements Power Boost To turn on one or more Cooking Touch “B(Boost)” to enter into Boost mode, the power display will show a Elements, place a compatible pot or “P”.The 'Boost' function is used to pan on the desired cooking element.
- Page 12 Using The Hob Power Sharing Residual Heat Indicator Five burner are divided into two separate cooking area, the right and left side cooking elements share power of a inverter. After using any of the Cooking Power sharing is activated when the Element, the cooking area will cooking element in the same area are remain hot .
- Page 13 Using The Hob Set Timer The automatic timer settings range If you want to set another burner to from 1 minute to 99 minutes. (NOTE: switch-off automatically, touch There is no “seconds” and “hours” Timer key to until the desired time display, only minutes.) The red dot symbol indicator blinks, repeat the next to the Time symbol indicator will...
- Page 14 Operational Hob Noises Cookware Noise The induction fields are generated by Cookware with irregular or warped electronics equipment, which are bottoms can vibrate audibly on the pretty much silent but they do produce ceramic glass surface, though again heat at high power level. A soft- typically only at high power settings.
-
Page 15: Compatible Cookware
Compatible Cookware The quality of your cooking is dependent on the cookware you use. Because induction cooking requires a magnetic vessel for heating, only certain materials can be used on your hob. Proper Cookware Improper Cookware Pots or pans with or made of the Flat-bottomed pots or pans with or following CANNOT be used on your made from the following:... -
Page 16: Cleaning Your Hob
Cleaning Your Hob Please follow these directions along with Important Safety steps for cleaning, advised at the beginning of the manual. Use a ceramic glass cleaner on the glass hob. To maintain and protect the surface of your ceramic glass, follow these steps: Before using the hob for the first time, clean it to protect the top and makes cleanup easier. -
Page 17: Troubleshooting Guide
Troubleshooting Guide If you encounter the following problems while using your hob, check the guide below to see if you can correct the problem yourself before calling for assistance or service: Problem Possible Cause Solutions Hob controls are locked Make sure Lock mode is turned off Power outage Hob does not work... - Page 18 Troubleshooting Guide If you encounter the following problems while using your hob, check the guide below to see if you can correct the problem yourself before calling for assistance or service: Problem Possible Cause Solutions Boost function is not available if adjacent burner is in use (2 burns Power boost does not work See Power Sharing...
-
Page 19: Installation Instructions
Installation Instructions IMPORTANT SAFETY INFORMATION WARNING Installation and service must be performed by a qualified installer or service technician. IMPORTANT Read and save these instructions for future reference. DANGER lways read and obey all safety information, failure to follow these instructions can be killed or seriously injured. Before Installing 1. - Page 20 Installation Instructions The hob must connect to a separate, grounded three-wire, single phase, AC Only electrical supply with their own circuit breaker. These appliances must be installed in accordance with National Electrical Codes and local codes. This appliance must be supplied with the proper voltage and frequency and amperage, which is protected by a properly sized circuit breaker or time delay fuse.
- Page 21 Installation Instructions Installation — Five Burner Induction Hob Dimensions B. Depth C. Height A. Width DO NOT obstruct these areas. Junction box IMPORTANT: For perfect Vent ventilation, provide a vent of Front under the countertop, in the front of the cabinet and in the back of the cabinet.
- Page 22 Installation Instructions After Installation 1. Remove all the stickers and items from the top of the hob surface. 2. Clean hob before use. Dry with a soft cloth. See Cleaning Your Hob for reference. 3. Read Using The Hob. 4. Turn on the power to the hob. 5.
