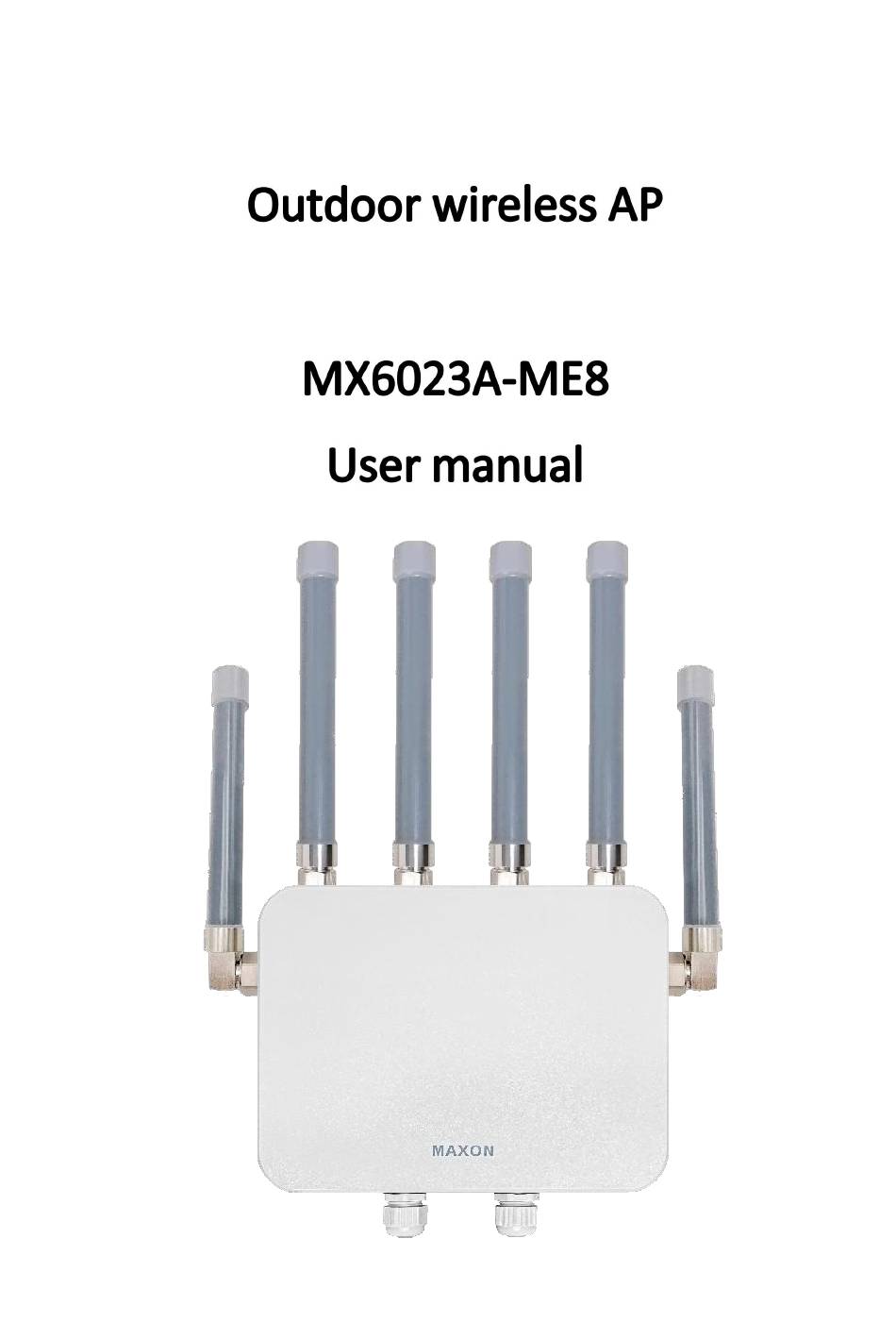

- Page 1 MAXON...
- Page 2 1-1 interface Power Connect the cable to the "POE" port on the power adapter. supply 10 /100 / 1000 / 2500Mbps Ethernet port, with access to L AN data the Internet, or computers, switches and other network /SFP transmission devices. When user forgets the IP of the device or the user name MX6023A Reset...
- Page 3 Wireless access point supports WEB mode management: through the standard browser (such as IE, Chrome, Firefox, etc., the highest version) to the wireless access point management page for device management and parameter configuration, can also enter the device console through SSH, Telnet or R S 232 serial interface to view the configuration by command.
- Page 4 Note The default user name is admin and the default password is admin After successfully logging in to the configuration web page. system Description of related items are shown below: host name Displays the device name Model Show the device model number Firmware version Display the firmware version Uptime...
- Page 5 Description of related items are shown below: host name Displays the host name of the active DHCP client connected to the AP IPv4-Address Displays the active DHCP connected to AP, the IP address of the client MAC-address Displays the active DHCP connected to AP, the MAC address of the client Lease time Displays the remaining DHCP of the DHCP client connected to the AP remaining...
- Page 6 Generic Displays information about the universal 802.11bgn wireless controller(WiFi 1) 802.11bgn . SSID - Displays the SSID (Service Set identifier) for this wireless interface, and Wireless clicks the hyperlink to configure this wireless interface Controller . The Mode shows the mode of the wireless interface (WiFi 1) .
- Page 7 Description of related items are shown below: network Displays the physical or logical interface where the active IPv4 route is located target Displays the target IPv4 network range of the active IPv4 route IPv4 Displays the IPv4 gateway address used by the active IPv4 route Gateway Metric Displays the number of Metric...
- Page 8 This page is used to display and configure the basic system settings, such as date / time settings, etc. Basic Settings Select the [System] -> [System] menu to enter the configuration interface shown in the following figure: Description of related items are shown below: Local time Displays the current local time (day, month, day, time, and year) configured on the AP.
- Page 9 Description of related items are shown below: Enables NTP client Select this option to enable the NTP client functionality Provide NTP server Select this option to manually provide the NTP, the server NTP server Enter the NTP server candidate here to create multiple entries Candidates Click on to add a new entry, and click...
- Page 10 Description of related items are shown below: Interface Select interface that will host the SSH (Security enclosure) access to the AP Port Enter SSH, the connected TCP / UDP port number, and the default port number is 22 Password Select this option to enable SSH password authentication for SSH authentication connection, or remove SSH secret key come into contact with...
- Page 11 This page is used to backup / restore the configuration or to update the firmware on the AP. You can also perform a factory reset of the software configuration on this page. Backup / Restore Description of related items are shown below: Download backup Click the Generate Backup, button to generate the current software profile and download it to the local PC Reset to defaults...
- Page 12 This page is used to display and configure the interfaces on the AP. Description of related items are shown below: network Display the WAN interface status Displays the status information of the interface Running time-Displays the time when the interface is already running MAC address-Show the MAC address of the interface Receiving-displays the RX (received) data traffic and number of packets through the interface...
- Page 13 Static address-IPv4 This page is used for the configuration of a static IP:...
- Page 14 Description of related items are shown below: status Displays the status information of the interface Running time-Displays the time when the interface is already running MAC address-Show the MAC address of the interface Receiving-Displays RX (receive) packets through the interface Send the TX (transfer) packets displayed through the interface IPv4-Displays the IPv4 address and the network mask of the interface protocol...
- Page 15 Limit Enter the max number of IPv4 addresses allowed in the DHCP pool here Leasetime Enter the rental time for the DHCP client here The rental time can be taken in minutes, such as 2m The rental time can be measured in hours, such as 12h The protocol selects the DHCP client, and the device will dynamically obtain the address from the DHCP server, and the device should be connected to the network with DHCP Server.
- Page 16 Description of related items are shown below: Generic Displays the information about the Generic Atheros 802.11an/ac/ax (WiFi 0) Atheros SSID - Display the SSID hosted by the wireless interface 802.11an/ Mode- -displays the configuration mode of the interface ac/ax BSSID - Displays the BSSID (Basic Service Set identifier) hosted by the interface (WiFi 0) Encryption-Display the wireless encryption used on the interface Disable...
- Page 17 Description of related items are shown below Generic Displays the information for the Generic Atheros 802.11an/ac/ax(wifi2) Atheros SSID - Display the SSID hosted by the wireless interface 802.111an Mode- -displays the configuration mode of the wireless interface /ac/ax BSSID - Displays the BSSID (Basic Service Set identifier) hosted by the interface (WiFi 2) Encryption-Display the wireless encryption used on the interface Disable...
- Page 18 Description of related items are shown below: Status Displays the wireless configuration summary on this wireless interface Mode displays the wireless operating mode of the wireless interface SSID - Displays the SSID name of the wireless interface BSSID - The BSSID displaying the wireless interface Encryption displays the wireless encryption used on the wireless interface Channel displays the wireless channel number and frequency Transfer power displays the TX (transmit) power of the wireless interface...
- Page 19 Description of related items are shown below: country Enter the country code here Interface configuration-Basic settings Set the SSID, mode and other parameters of the wireless interface (VAP) on this page. Description of related items are shown below: ESSID Enter the ESSID (wireless interface name) here with a length limit of 1-32 bytes Mode Select the wireless mode of the interface here The alternative option is the access point AP...
- Page 20 Encryption Select the wireless encryption for this interface here The alternative options available include Un-encrypted, WPA-PSK, WPA2 -PSK, WPA-PSK/WPA2-PSK Mixed Interface configuration-Wireless security-WPA 2-PSK Select [WPA 2-PSK] for the encryption mode. Description of related items are shown below: Encryption After selecting the WPA 2-PSK option, you can use the following settings Cipher Select the password method here The alternative option is to force the CCMP (AES) encryption...
- Page 21 Interface Configuration - Basic Settings - Access Point AP On this page, set parameters such as SSID and mode of the wireless interface (VAP). Description of related items are shown below: ESSID Enter the ESSID (wireless interface name) here with a length limit of 1-32 bytes Mode Select the wireless mode of the interface here The alternative option is the access point AP...
- Page 22 This page provides useful network utilities for troubleshooting network connections between an AP and other network nodes. Description of related items are shown below: Ping To use the ping utility, enter the IPv4 address in the text box, and then click the Ping button.ping Utilities are used to send ICMP requests to a node to detect whether the node is active.
