Bticino Classia RW4574CW Manual

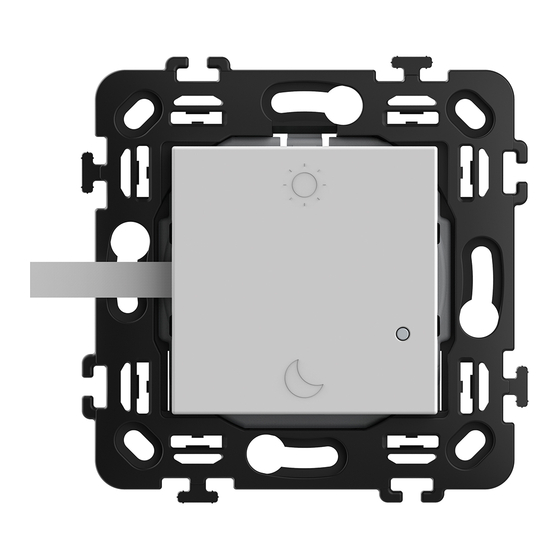

Wake Up / Sleep wireless switch
Use
It is equipped with 2 buttons for activating Wake up / Sleep scenarios.
Scenarios can be customized by the Home + Control app.
Surface installation with repositionable stickers (supplied) or onto a flush mounting box.
Integrated LED for low battery indication. - 2 modules.
Range
Designation
Wake up / Sleep wireless control, with battery.
Equipped with an LED indicator (confi-guration) and a
RESET button (hidden) used to return to factory settings.
Repositionable self-adhesive fixings supplied.
Colours code:
White
Aluminum
Black
Technical characteristics
- Mechanical characteristics
Protection against impacts:
Protection against solid bodies/liquids: IP 20 without plate and rocker plate
- Material characteristics
Mechanism with grid: Fibreglass-reinforced (10%) PC
Mechanism functional cover: PC/ABS
Supporting base: fiberglass-reinforced PA (60%).
Halogen-free
UV resistant
Self-extinguishing: 650°C/30 s
- Electrical characteristics
Powered by a CR2032 - 3 V lithium battery (supplied)
Battery life:
ZigBee radio technology frequency: 2.4 GHz to 2.4835 GHz
Wireless mesh network, self-adaptive and secure (AES 128), conforming to standard
IEEE 802.15.4 (LR-WPAN)
Power level:
- Climate characteristics
Usage temperature: + 5° C to + 45° C
Storage temperature: 0° C to + 45°
www.bticino.com
Cat. Nos.
RW4574CW
RA4574CW
RG4574CW
IK 02
8 years for 10 activations a day
< 100 mW
IDP000360_01-
Standards and approvals
The undersigned, BTICINO, declares that the radio-electric equipment type
(RW-RA-RG4574CW) complies with directive 2014/53/EU.
The full text of the EU declaration of conformity is available on the following
website: www.bticino.it/red
Overall dimensions (mm)
A
75
EN 15/07/2020
RW4574CW - RA4574CW - RG4574CW
B
B C
75 11,3
C
1
