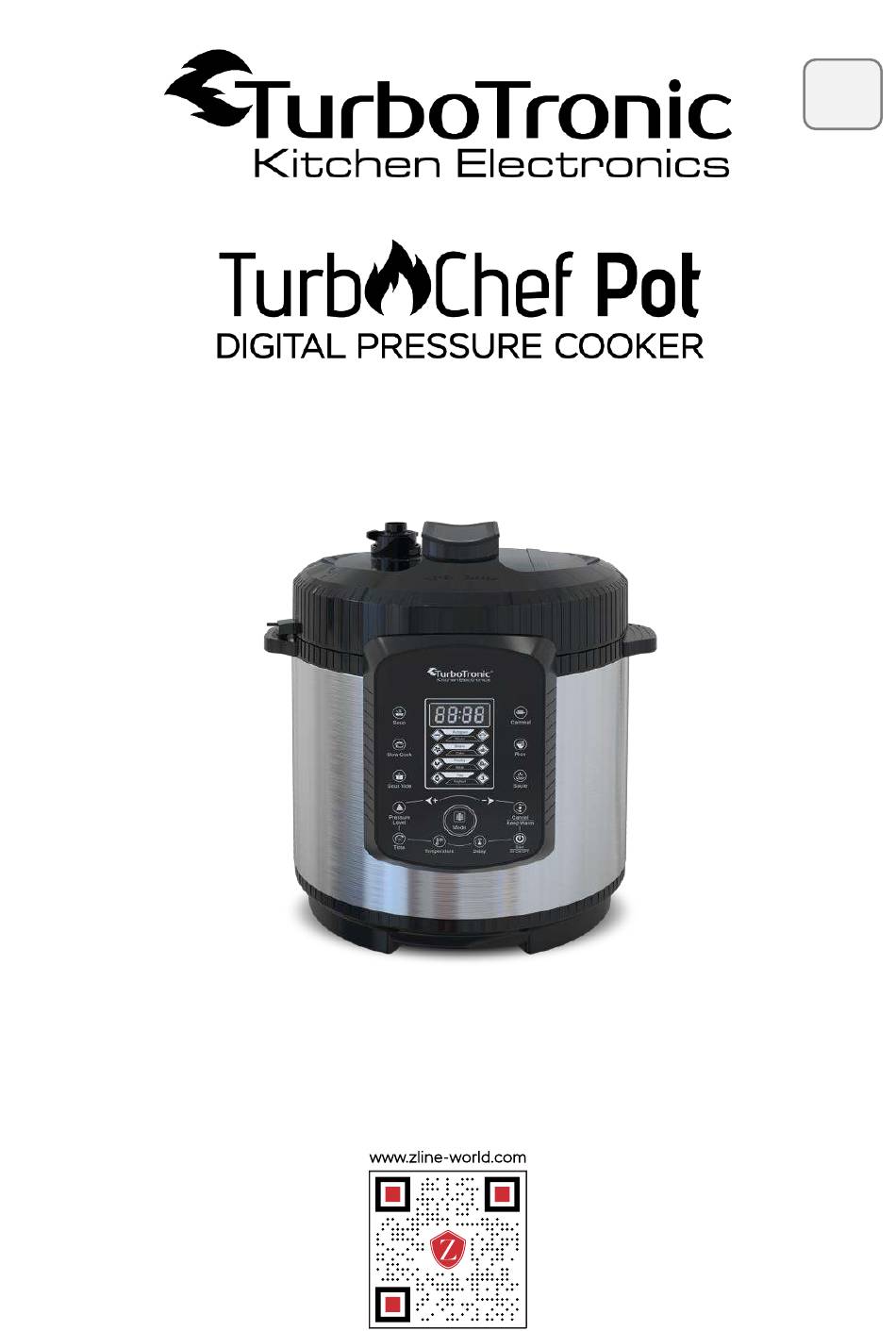

- Page 1 INSTRUCTION MANUAL ELECTRIC PRESSURE COOKER TT-DPC9...
-
Page 2: Table Of Contents

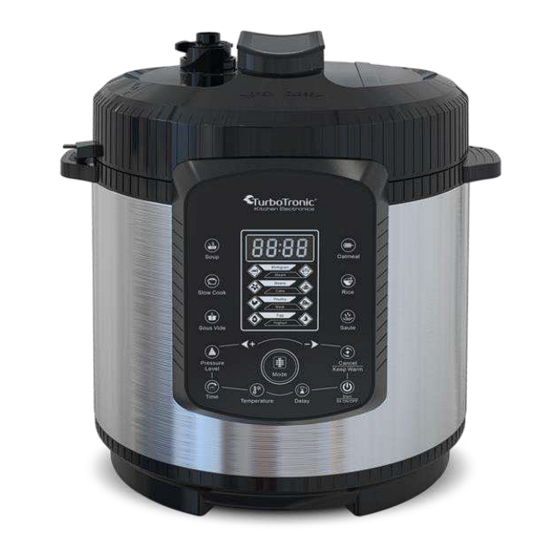

Dear Customer, We congratulate you on the purchase TurboChef Pot Digital Pressure Cooker by ® TurboTronic ALL-IN-ONE MULTIFUNCTION DIGITAL PRESSURE COOKER: This electric pressure cooker has 14 in 1 multi-functions, it can replace a variety of specialty appliances, including the high-pressure cooker, slow cooker, rice cooker, steamer, sauté, cake maker, pasteurize, and warmer. -
Page 3: Pressure Mode Correct Lid Placement
PRESSURE MODE CORRECT LID PLACEMENT NEVER FORCE THE APPLIANCE OPEN. MAKE SURE THAT THE INSIDE PRESSURE HAS RETURNED TO NORMAL... -
Page 4: The Proper Way To Open The Cover
THE PROPER WAY TO OPEN THE COVER • Turn the exhaust valve to the open vent position, wait for the steam in the pot to release completely, don't open the lid until the float valve is lowered. • First push the safety lock down, then turn the lid clockwise, angle of inclination to open the lid, then slowly pick it up. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION BEFORE YOU GET STARTED, PLEASE READ THE FOLLOWING IMPORTANT SAFETY INFORMATION, ALONG WITH THE MANUAL ENCLOSED AND KEEP BOTH FOR FUTURE REFERENCE. WARNING YOU ARE WORKING WITH HOT LIQUIDS. YOU MUST READ THIS BEFORE USE. Before cooking •... - Page 6 IMPORTANT SAFETY INFORMATION (CONT...) Pressure release methods • When the programmed is finished and you wish to commence pressure release press the "Cancel" button to cancel the Keep Warm function. • When releasing the pressure valve, always use tongs and please wear oven gloves to turn the pressure valve to the open position.
-
Page 7: Important Safeguards
Important Safeguards When using electrical appliances, basic safety precautions should always be followed including the following Read and follow all instructions carefully. Extreme caution must be used when moving an appliance containing hot oil or other hot This appliance is NOT intended for use by liquids. - Page 8 • This appliance has been designed for use CAUTION: TO REDUCE RISK OF with a 2 prong, grounded, 220-240V ELECTRIC SHOCK COOK ONLY IN THE REMOVABLE CONTAINER. Do not electrical outlet only. Do not use any other immerse the housing or base in water. electrical outlet.
-
Page 9: Safety Features
• Please be aware that quickly releasing the THE LID MUST BE CLOSED pressure after cooking is not suitable for FULLY BEFORE SELECTING A food with a large liquid volume or high starch PRESSURE FUNCTION. content (e.g. porridge, congee, sticky liquids, •... -
Page 10: Box Contents
Box Contents Glass yoghurt box Pressur cooker S.S Steamer Measuring cup Stainless steel 304 inner pot Power cord Assembling Your Pressure Cooker To open the lid, turn the handle on the top clockwise as far as it will go. Lift the lid off the pressure cooker. - Page 11 Slot the pressure valve into the large Remove the inner pot. recess on the top of the pressure Remove all of the items from inside cookers lid. your inner pot. Push the pressure valve down until it locks in place with a click. Slot the end of the power cord into the socket on the rear of the pressure cooker as shown in the diagram.
- Page 12 CLICK Turn the lid anti-clockwise until it Place the lid back onto the pressure locks with a click. cooker. Ensure the tab on the back of the lid slots into the channel on the back of the pressure cooker. Your pressure cooker is now ready for pressure cleaning.
-
Page 13: Control Panel Features
Control Panel Features Quick Select LED Display Cooking programs Button Quick Select Cooking programs Button Quick Select Adjustment Cooking programs Button Button The ( + and -) button are used to select setting values Cancel/Keep Warm Programs Button Pressure Level Button Use to adjust Low Pressure and High... -
Page 14: Pressure Cooker Program List
Pressure Cooker Program List Default Adjustable Time Default Temp. Keep Function Delay Time Time Interval Temp. Control Warm Soup 30min 1min~12h 1min~1h 150°C 70°C Slow Cook 1min~12h 1min~1 h 90°C 70°C Sous Vide 1min~24h 1min~1 h 60°C 40~90°C Oatmeal 10min 1min~12h 1min~1 h 150°C... -
Page 15: Before Using For The First Time
Before Using For The First Time Remove the lid and pour 2 liters of water into the inner pot. Turn the pressure release valve to Refit the lid and lock by turning anti- the CLOSED position. clockwise. Turn the pressure cooker on at the socket if required. -
Page 16: Using As A Pressure Cooker
Before Using For The First Time (cont...) Allow your pressure cooker to cool down for 15 minutes. Releasing the steam Open the lid by turning it clockwise You will now have to open the Steam Release valve, to do this cover your hand and then lift off the pressure cooker. - Page 17 Using as a Pressure Cooker (cont...) If available, Press function then Press the Mode button, select the rice function, and then press the start press time logo again to select button to start cooking. different time. Setting the delay time Starting the cooking program If you want to start cooking later, Press the...
- Page 18 Using as a Pressure Cooker (cont...) important: Ensure inside of the pressure cooker and the inner pot are clean and free from any food debris before starting. Filling the inner pot NEVER place food or liquid directly into the pressure cooker. Always use the inner pot to cook food in.
- Page 19 Using as a Pressure Cooker (cont...) Float valve Releasing the steam After steam has stopped coming out of You will now have to open the Steam the Steam release valve, check that the Release valve, to do this cover your hand Float valve has dropped before opening with an oven glove or similar or better use the pressure cookers lid.
-
Page 20: Care & Cleaning
Care & Cleaning After every time you use your pressure cooker you must clean any lmportant: residue food or moisture from all components. Before cleaning Removing the pressure release valve: Removing the lid: Grip the sides of the pressure release your pressure cooker;... - Page 21 Removing the inner lid: Grip the Removing the gasket: Pull the rubber rubber knob in the middle of the inner gasket from the sides of the inner lid. lid and pull outwards. Wash the gasket in warm soapy Clean the inner lid in warm soapy water.
-
Page 22: Troubleshooting
• Ensure that the float valve on the lid of the pressure cooker is not blocked and can move up and down freely, wipe clean if necessary. • The inner pot and lid are fully immersible in water for cleaning. Rinse the inner pot and lid under hot running water;... - Page 23 Defects caused by repair persons not authorized by TurboTronic . These defects include ® damages caused in the process of shipping, altering, or repairing the TurboTronic product (or any of its parts) when the repair is performed by a repair person not authorized by ®...
- Page 24 Illustrations may differ from actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice. ® ® ® TurboTronic and Z-Line are registered trademarks of Z-GLOBAL B.V.B.A PRINTED IN PRC...
