Summary of Contents for CyberPower CR12U61003

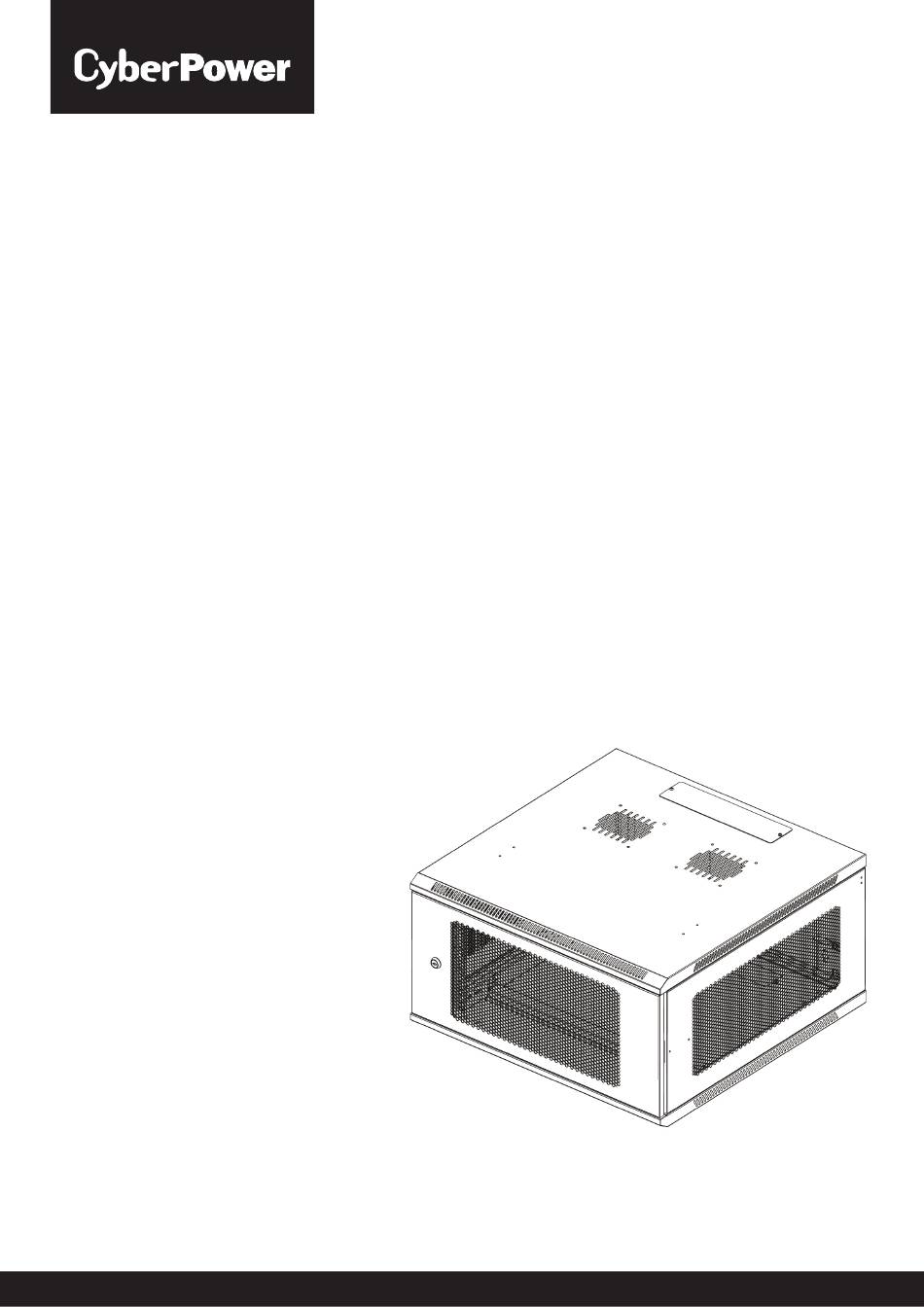

- Page 1 USER’S MANUAL Wall Mount Enclosure Wall Mount Enclosure SAVE THESE INSTRUCTIONS Please read this manual and follow the instructions for installation and use. Copyright © 2022 Cyber Power Systems (USA), Inc. All rights reserved. K01-0001018-00...
-
Page 2: Table Of Contents
Hardware and Accessories..........2 Initial Enclosure Setup.........3 Lock Front Door ..............3 Remove and Reverse Front Door........3 Relocate CyberPower Badge ...........4 Open Side Panels ..............5 Adjust Vertical Mounting Rails ......... 5 Mounting Depth ..................5 Mounting Holes ..............6 Cable Access................ -
Page 3: Safety Instructions
Safety Instructions Please read these instructions carefully before use. ● The enclosure is a heavy object. Use of adequate mechanical means to move the enclosure to the desired location is highly recommended to minimize risk of injury or unit damage. For safety reasons, it is highly recommended to handle this unit between two or more people. -
Page 4: Part Identification
Part Identification Enclosure Components a . Side panel LH b . Side panel RH c . Frame LH d . Frame RH e . Removable, Reversible, and Lockable Front Door f . Rear cover g . Bottom cover h . Top cover Hardware and Accessories Expansion Bolt (4) Key (2) -
Page 5: Initial Enclosure Setup
Initial Enclosure Setup Lock Front Door The lock location is shown below. Use the included keys to operate the lock. NOTE: The enclosure is shipped with the door locked. To access the keys in the accessories bag outside of the enclosure . The keys in the accessories bag outside of the enclosure Optional Door Reversal... -
Page 6: Relocate Cyberpower Badge
2. Rotate the front door and reinstall it on the opposite side sliding the door pin hinges into the hinge holes on the enclosure as shown below. 3. To relocate the CyberPower badge, pull the two parts apart as shown below. To re-install the badge measure the vertical and horizontal distance from the edge of the door as shown below and push both parts together. -
Page 7: Open Side Panels
Open Side Panels Press and turn left the retention screw simultaneously to release the side panel. Adjusting Vertical Mounting Rails Mounting Depth The installed depth of the vertical mounting rails can be adjusted by moving them forward or backward on the horizontal mounting rails. -
Page 8: Mounting Holes
Mounting Holes The vertical mounting rails have square holes for use with cage nuts as shown below. -
Page 9: Cable Access
Cable Access Cables can be routed through the top or bottom cable openings of the enclosure. To access the cable opening, remove the two screws securing the cover as shown below. Grounding An individual grounding connection per enclosure is strongly recommended. WARNING Failure to follow may result in serious injury or death. -
Page 10: Enclosure Installation
Enclosure Installation The enclosure is a heavy object. For safety reasons, it is highly recommended to handle this unit with two or more people. WARNING Failure to follow these instructions may cause serious injury, or unit damage. Mounting on Wall Before installing the enclosure make sure that the wall is capable of supporting the total load being mounted in the enclosure, including the enclosure itself. -
Page 11: Equipment Installation
If multiple pieces of equipment use sliding rails only slide one piece of equipment out at once. CyberPower’s wall mount enclosures have square hole. Use the black cage nuts and black screws for square holes. - Page 12 2. Install the equipment by screwing the included black M6 screws and cup washers into the cage nuts as shown below. For warranty and additional information, please visit: www.CyberPowerSystems.com.
- Page 13 Cyber Power Systems (USA), Inc. www.cyberpower.com For USA and Canada: 4241 12th Ave East, Suite 400 Shakopee, MN 55379 Toll-free: 1-877-297-6937 For all other regions: Please visit our website for local contact information. Copyright © 2022 Cyber Power Systems (USA), Inc. All rights reserved.
