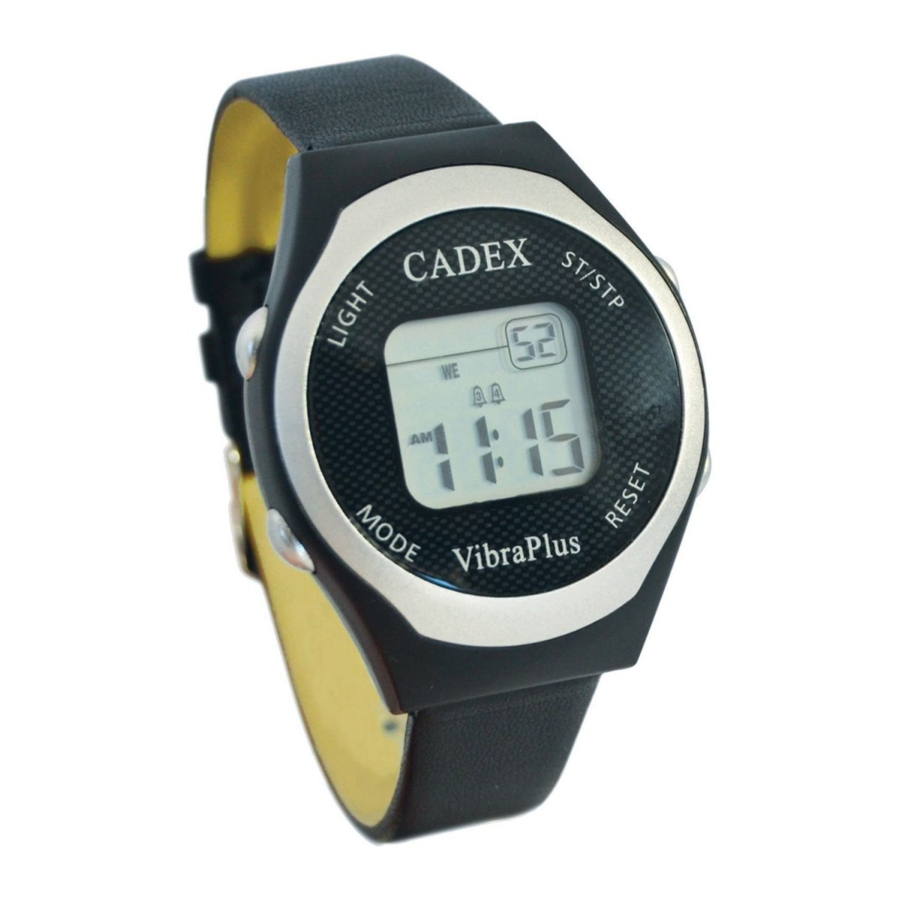

E-Pill CADEX VibraPlus - 8 Alarm Medication Reminder Watch Manual

INTRODUCTION

Your e-pill Watch has the following functions:

• Up to 8 Daily Auto-Repeating Alarms
• Daily Alarms Sound, Vibrate, or do Both
  (Alarms are 15 seconds long)
• Lock Feature to Prevent Accidental Re-Programming
• Easy-to-Use Interface with Backlight
• Countdown Timer with Time Limit
  (Ex. Alarm from 8:00 AM to 9:00 PM)

How to Lock the Buttons

1. Press MODE repeatedly to advance to Time Mode.
2. Press and hold MODE and RESET together at the same time to lock the buttons. A "LOCK" icon will appear in the top left-hand corner of the display. When buttons are locked, only the LIGHT button will be working.
3. Press and hold MODE and RESET together at the same time to remove the lock-out feature ("LOCK" icon will disappear).

How to Erase an Alarm

1. Press MODE repeatedly to advance to Alarm Mode. "AL" will appear at the top of the display.
2. Press RESET repeatedly to get to specific alarm you want to erase. The alarm number is shown in the upper right-hand corner.
3. Press and hold RESET until , etc. disappears from the middle of the display.
4. Press MODE until you return to Time Mode. The day of the week, current time, and date should now appear. Your alarm(s) have been erased.

How to Change the Battery

The e-pill CADEX VibraPlus runs on a CR2032 button cell. At the first sign of low power (dim display), have the battery replaced. We strongly recommend that you take your e-pill Watch to a jeweler for battery replacement, instead of changing it on your own.

Water Resistance
This watch is NOT WATER PROOF. It will withstand splashes and rain but not swimming, bathing, and showering.
DO NOT USE IN SHOWER OR SWIMMING POOL

Care of Your Watch
Avoid exposing the watch to temperature extremes. Avoid dropping the watch. Avoid exposing the watch to gasoline, cleaning solvents, adhesive agents, paint, or aerosol sprays.
DO NOT IMMERSE IN WATER

Four Display Modes

Flip through the display modes by pressing the MODE button repeatedly.

How to Set the Time and Date

1. Select the Time Mode by pressing MODE repeatedly if not already shown. Press and hold LIGHT for five (5) seconds. This will cause the seconds to begin flashing.
2. Press MODE and the minutes will flash. Press ST/STP to advance the minutes. Press MODE to record the minutes. The hour will now flash.
3. Please note the "AM" or "PM" Indicator to the left of the hour digits. Press ST/SP to advance the hour, then press MODE to record the hour.

4. The date will flash. Press ST/SP to advance the date, then press MODE to record the date.
5. The month will flash. Press ST/SP to advance the month, then press MODE to record the month.
6. The year will flash. Press ST/SP to advance the year, then press MODE to record the year.
7. Press LIGHT to confirm the Time and Date Settings and return to Time Mode.

To temporarily display the Date in Time Mode, Press RESET.

How to Set the Alarm to Beep and/or Vibration

1. Select the Alarm Mode (AL) by pressing MODE repeatedly if not already shown.
2. Press ST/STP once to turn on the beeping alarm, twice to turn on the vibration, or three times to turn on both alarm and vibration.
   • When sound alarm is on, will display.
   • When vibration is on, will display.
   • When both sound and vibration are on,will display.


These symbols can be found above the AM/PM indicator on the left side of the display.

How to Set up to 8 Daily Alarms

1. Select the Alarm Mode (AL) by pressing MODE repeatedly if not already shown. Alarms are shown in the top right-hand corner, numbered A1-A8.
2. To set Alarm 1, press and hold LIGHT until hour flashes. Press ST/STP to advance the hour, then press MODE to record the hour.
3. The minutes will flash. Press ST/STP to advance the minutes, then press MODE to record the minutes.
4. Press LIGHT to confirm the time entered. etc. will appear above the time to show that the alarm has been set.
5. Press RESET to move between alarms (A1-A8). Repeat steps 1-4 for each alarm you want to set.
6. When you are finished setting alarms press MODE repeatedly until you reach Time Mode.

Alarms auto-reset at midnight and repeat automatically again at the same time the next day.

How to Set the Stopwatch

1. Select the Stopwatch Mode (ST) by pressing MODE repeatedly if not already shown. "ST" will appear on the top of the display.
2. Press ST/STP to start/stop the stopwatch.
3. Press RESET to return to 0.

How to Set the Countdown Interval Timer

The Countdown Timer works within a set timeframe every day - for example, 8:00AM to 9:00PM.
Within these hours the watch will alarm at set intervals- for example, every hour, or every 2 hours. Set in hours and minutes (Minimum Interval 15 min.)

To set the Time Frame/ Time Interval:

1. Select the Countdown Timer Mode (TR) by pressing MODE repeatedly if it is not already shown.
2. Press and hold LIGHT until the starting hour flashes.
   This is when the countdown timer will start every day. Press ST/STP to advance to this hour.
3. Press MODE and the ending hour will flash. This is when the countdown timer will stop every day. This hour must be later than the starting hour. Press ST/STP to advance to this hour.
   Next Set the Time Interval (Ex: 30 min, 1 hr, 3hrs, etc.):
4. Press MODE and the hour flash. Press ST/STP to advance the hour, then press MODE to record the hour.
5. The minutes will flash. Press ST/STP to advance the minutes, then press MODE to record the minutes.
6. Press LIGHT to confirm the timer settings.

Make sure to set the Alarm to Beep and/or Vibration.

WARRANTY

The inner components of this watch are warranted to be free from defects in materials and manufacturer's workmanship for one (1) year from the original date of purchase. This warranty does not cover the band, buckle, battery, case, buttons, or crystal. Do not wear this watch in the shower or swimming pool, it is NOT WATER PROOF. This warranty expressly excludes incidental and consequential damage caused by use, misuse, neglect, accident, unauthorized modification, or any defects resulting from service by anyone other than the manufacturer. During the warranty period, and upon proof of purchase, this watch will be repaired or replaced (with the same or a similar model) at the manufacturer's option.
Contact: e-pill Medication Reminders (or your distributor) Address: e-pill, LLC 49 Walnut Street, Building 4 Wellesley, MA 02481, USA Web site: www.epill.com or www.CadexWatch.com Phone: 1-888-726-8805 (+1 781 239 2941 international) Fax: +1 781-235-3252
The e-pill CADEX VibraPlus watch is only a supplement to any memory system that you currently use to remind yourself to take your medications or perform medical tasks. The user maintains full responsibilitiy to administer medications or perform medical tasks at the appropriate times.
e-pill, LLC assumes no responsibility for any incidental or consequential damages, including but without limitation, damages or injuries resulting from malfunction of the product, mathematical inaccuracy or loss of stored data.
