Alecto AQ30 - CO2 Monitor Manual

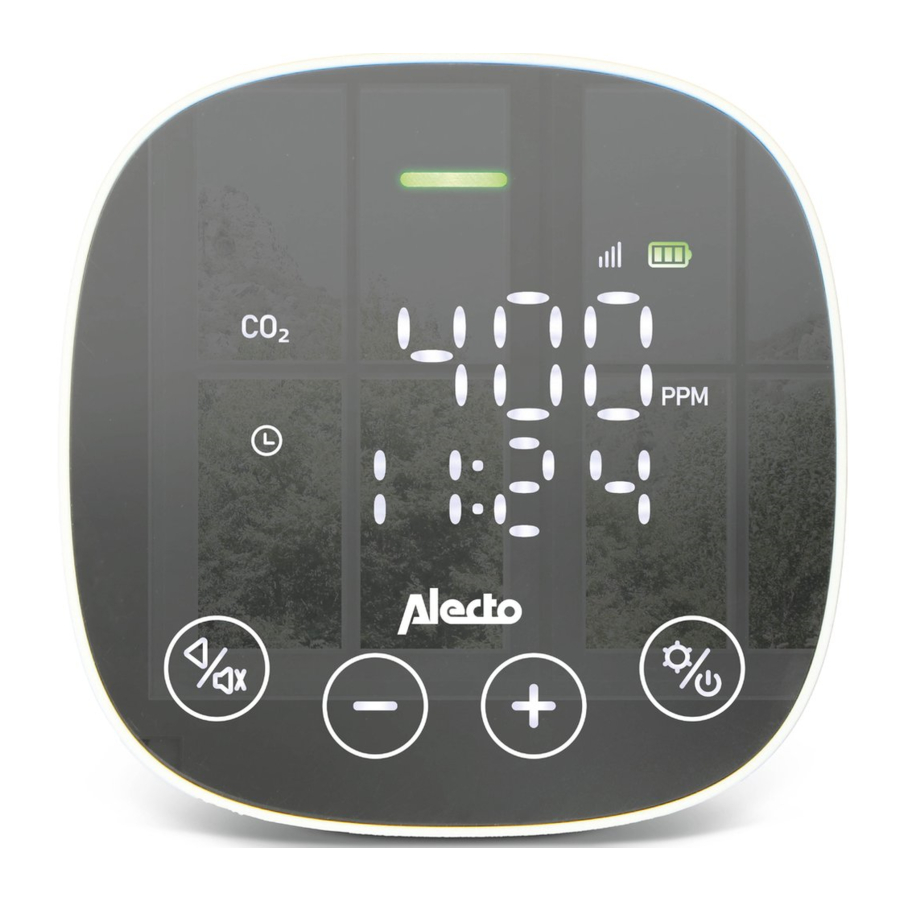

Buttons & Functions

	Toggle through the menus CO2 , Temperature/Humidity and Time/ Date. In setup mode, reduces the current value.
	Toggle through the menus CO2 , Temperature/Humidity and Time/ Date. In setup mode, increases the current value.
	Deactivate the alarm sound. In setup mode, go back to previous menu, exit setup mode.
	Turn the device on or off (press & hold 5 sec ). Turn off the display (short press). together with for 2 seconds to enter setup mode. In setup mode, short press to save the settings.

Product Introduction

The stable indoor air quality monitor (AQ30) is used for measuring the indoor air quality. Including CO², temperature and humidity. The advanced AQ30 sensor measures and detecs with high stability and accuracy. When the preprogrammed (and programmable) maximum values are surpassed the AQ30 will sound an alarm both audibel and visually. In which case it is important to immediately ventilate and air the room. The AQ30 is only applicable in indoor environments like residents, offices, schools, meeting rooms and other public places.

Display icons

	Carbon dioxide (CO 2 )		Mute
	CO2 Parts per million		Battery power (green: >50%, yellow: 25-50%, red: <25%)
	Air temperature		Setup
	Degrees Fahrenheit		maximum value
	Degrees Celsius		minimum value
	Relative humidity		End time
	Percent		Air quality indicator
	Time and date

Display information

Packaging content

Setup menu's

1. Through the various setup menu's the date, time, minimum and maximum values can be set. Crossing the maximum CO² value will trigger the visual and an alarm will sound for 30 sec. When the maximum value is exceeded the alarm will go off.
2. Press and hold both and buttons for 2 seconds. As soon as the icon appears the device is in setup mode.
3. Switch through the different setup menus using and . Press to modify the menu values.

CO² display setup

1. Set MAX/MIN CO² value: if MAX is flashing, press and to set the MAX value. If MIN is flashing, press and to set the MIN value.
2. Press shortly to save the set values.
3. Press shortly to toggle between MAX and MIN values. Press 2x to exit the setup mode.

Product

green: air quality good
yellow: air quality moderate
red: air quality bad

Temperature screen setup

1. Set MAX/MIN temperature value: if MAX is flashing, press and to set the MAX value. If MIN is flashing, press and to set the MIN value.
2. Press shortly to save the set values.
3. Press shortly to toggle between MAX and MIN values. Press 2x to exit the setup mode.
4. In case of an alarm, only a visual alarm wil be given. There will be no sound.

Humidity screen setup

1. Set MAX/MIN humidity value: if MAX is flashing, press and to set the MAX value. If MIN is flashing, press and to set the MIN value.
2. Press shortly to save the set values.
3. Press shortly to toggle between MAX and MIN values. Press 2x to exit the setup mode.
4. In case of an alarm, only a visual alarm wil be given. There will be no sound.

Tips

Carefully read the below instructions and warnings before use

1. Do not place the AQ30 in direct sunlight
2. During initial use, place the AQ30 in a well-ventilated room. This allows the AQ30 to calibrate itself. Calibration can take up to 4 days.
3. Use only the supplied power adapter.
4. Charge the battery a full 24 hours before first use.
5. Do not cover the device or air intake while the product is in use.
6. Do not submerge the device in water or other liquids.
7. Do not place any foreign objects in the air intake of the AQ30.
8. The internal Lithium battery is a backup battery only. It works for 6 hours. It may only be replaced or removed by a specialist. Always use the included AC power cable and adapter to power the AQ30.
9. Do not use the AQ30 after the device has been dropped, punctured or in any other way damaged. Do not use the AQ30 if the power cable or power adaper have been damaged.
10. The AQ30 does not contain parts that can be changed / replaced by the user.

Setting the time and date

1. Press to toggle between hour, minute, day and month.
2. Use the and buttons to set the value.
3. Press 2x to confirm the date and time and exit the setup mode.

Do not disturb mode (Silent alarm)

1. Press the key to toggle between the start time and end time of the don't disturb mode
2. Press and to set the time.
3. Press 2x to confirm the time and exit the setup mode.
4. In case of an alarm, only a visual alarm wil be given. There will be no sound.

Wall installation

1. If you mount the monitor on the wall, preferably at breahting height, not in a ridge, corner of a room or on a ceiling. Place it 60 cm from surrounding walls and ceilings.
2. Use the wall mount sticker to position the drilling holes in the desired location.

3. Drill 2 holes with a Φ5mm drill bit.
4. Push the included pluggs in the holes.
5. Screw the included screws in the plugs until they stick out about 5mm.

6. Place the AQ30 in place by positioning the screws in slots on the backside and gently pushing the AQ30 downwards to the fixed position.

Specifications

Standing installation

1. Place the bracket tips in the slots on the backside of the AQ30. Make sure the bracket foot points down.

2. Press the bracket upwards with even force until the bracket pins click into position.

Issue list

ENVIRONMENT

Do not dispose of spent batteries but return them to your local depot for Small Chemical Waste (MSW). At the end of the product's life cycle, do not dispose of this product in normal household waste, but take it to a collection point for the recycling of electrical and electronic equipment.
