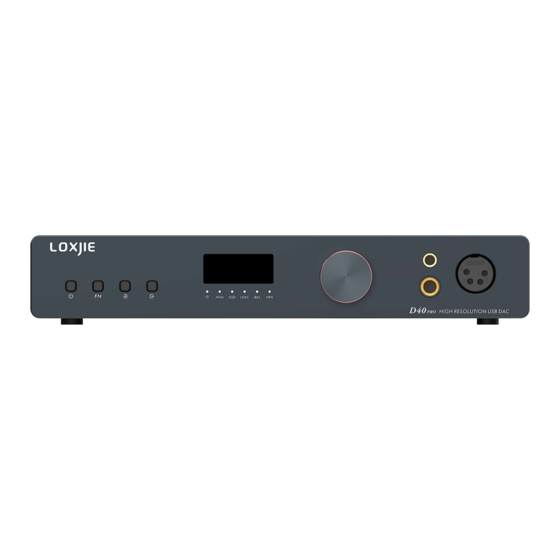

D40 PRO
Instruction manual
The contents of this manual may change with the version, if there is any change
without notice, please go to http:/ /www.loxjie-audio.com/download.asp
Download the latest version of the manual.
Ver 1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the D40 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Loxjie D40 PRO

  • Page 1 D40 PRO Instruction manual The contents of this manual may change with the version, if there is any change without notice, please go to http:/ /www.loxjie-audio.com/download.asp Download the latest version of the manual. Ver 1.1...
  • Page 2 D40 PRO Features USB, optical, coaxial, AES all support MQA decoding function, and support MQA-CD; American ESS new generation flagship DAC chip ES9039MSPRO, built-in MQA hard decoding; New third generation XMOS XU-316, PCM support up to 32bit/768kHz, DSD support up to DSD512;...
  • Page 3: Specification

    D40 PRO Specification Interface : Inputs USB / Optical / Coaxial / Bluetooth / I Outputs RCA / XLR / balanced headphone x1 4.4 mm headphone jack / unbalanced headphone x1 Output Level 5.2Vrms 2.5Vrms Output amplitude 6000mW x 2 (16 Ω ) 3000mW x 2 (32 Ω...
  • Page 4 Optical / Coaxial / AES/EBU DSD64(DoP) Bluetooth specification (support SBC,AAC,aptX,aptX HD,LDAC ) : Others Power Consumption <0.5W Standby power 240x43x195(WxHxD) Size 1.15kg / 2.53 Ibs Weight Specifications are subject to change without notice. Support Firmware and driver download: http:/ /www.loxjie-audio.com/...
  • Page 5: Remote Control

    How to use Bluetooth: 1. Connection: switch the input source to Bluetooth, turn on the Bluetooth function of the mobile phone, search "Loxjie D40 PRO", and click Connect after searching. When the mobile phone displays "connected", the connection is successful.
  • Page 6 D40 PRO Parts Switch button 4.4mm headphone jack PRESS to turn on/off; 6.35mm headphone jack HOLD to turn off the screen. Balanced headphone jack FN button RCA Output PRESS to switch filter mode. Bluetooth antenna Input selection button XLR Output PRESS to switch input source;...
  • Page 7 D40 PRO Function and operation instructions INPUT SETTING USB AUDIO OPTICAL COAXIAL AES/EBU BLUETOOTH OUTPUT SETTING BALANCED HEADPHONE PCM FILTER FILTER OFF MINIMUM PHASE APODIZING LINEAR FAST LINEAR SLOW MINIMUM FAST MINIMUM SLOW LOW DISPERSION...
  • Page 8: Dsd Filter

    DSD FILTER 47kHz Cutoff 50kHz Cutoff 60kHz Cutoff 70kHz Cutoff GAIN HIGH...
  • Page 9 D40 PRO Function and operation instructions DPLL dP0 ~ 9 (A total of 10 kinds, the default is 5 kinds. The larger the number is, the stronger the range to adapt to jitter, and the smaller the number, the better the performance against clock jitter.)
  • Page 10 D40 PRO Function and operation instructions AUDIO PHASE: NORMAL (2+,3-) INVERTED (2-,3+) NORMAL INVERTED BRIGHTNESS...
  • Page 11 The master MQA file is fully authenticated and is small enough to stream or download. The D40 PRO includes MQA technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording.
  • Page 12: Indicator Light Description

    D40 PRO Indicator light description Power indicator Power indicator, red when in standby, green when powered on and the display is off. The MQA LED glows green, blue or magenta to indicate that the unit is decoding and playing an MQA stream or file, and denotes provenance to ensure that the sound is identical to that of the source material.
