Summary of Contents for Allied Pumps KCPS 15FS

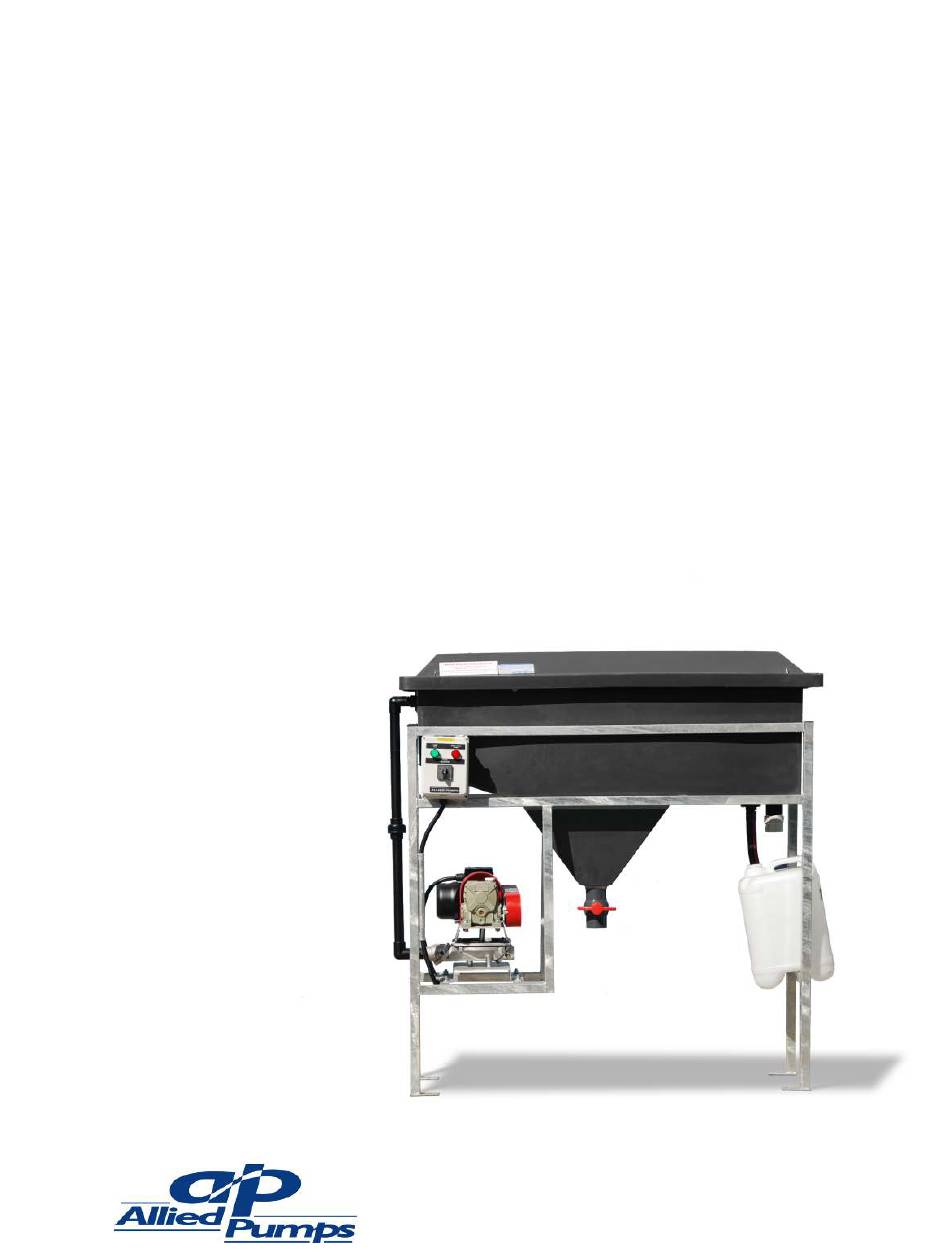

- Page 1 Cleartec Coalescing Separator Installation, operation, and maintenance manual June 2023 v4.1...
- Page 2 Cleartec Coalescing Plate Separator Installation, operation, and maintenance Revision History DATE DESCRIPTION OF CHANGES PREPARED CHECKED APPROVED 16/06/2023 ISSUED FOR USE Cleartec Coalescing Separaton IOM - 100823 Doc # 47068...
-
Page 3: Table Of Contents
Cleartec Coalescing Plate Separator Installation, operation, and maintenance Contents 1 Safety _______________________________________________________ 4 Prior to operation ............................4 1.1.1 Correct wash-bay procedures ....................4 1.1.2 Correct maintenance procedures ....................4 WARNINGS ..............................4 2 System description ___________________________________________ 5 3 Installation ___________________________________________________ 6 Pipework ................................. -
Page 4: Safety
The on-going effectiveness of the system is dependent on regular maintenance (as detailed in this manual) being carried out. Due to the importance of this procedure, we strongly recommend you establish a service contract with Allied Pumps Service Division to ensure this is performed properly and according to the schedule. -
Page 5: System Description
Cleartec Coalescing Plate Separator Installation, operation, and maintenance System description The Cleartec Coalescing Plate Separator (CPS) is an enhanced, gravity separator incorporating the latest technology. Fig. 1 CPS basic operation CPS units are designed with a combination of vertical and horizontal coalescing plates. From the inlet port, the flow is directed through the vertically-orientated plates where solids are separated under gravity for collection in the hopper below. -
Page 6: Installation
Cleartec Coalescing Plate Separator Installation, operation, and maintenance Installation Position the CPS as close as possible to the waste collection pit that the separator pump is drawing from. The CPS should be mounted on a level, reinforced concrete plinth/slab of adequate thickness to take the weight of the unit. - Page 7 Cleartec Coalescing Plate Separator Installation, operation, and maintenance Pump suction pipework should be in accordance with the following: Suction line from pit to pump must be as direct as possible with the minimum number of bends. WARNING The suction line must be fitted with the supplied strainer to prevent blockages. Failure to do so could damage pump.
-
Page 8: Installation Of Level Floats
Cleartec Coalescing Plate Separator Installation, operation, and maintenance Installation of level floats Float Switches, fitted with cable-weights, are supplied. They should be hung from a tethering point near the top of the chamber. The pump start/stop float switch should hang approx. 200 mm above the bottom of the pump suction strainer. -
Page 9: Installation Of A Diaphragm Pump
Cleartec Coalescing Plate Separator Installation, operation, and maintenance Fig. 5 Elements in a CPS Note: This diagram is for illustrative purposes only. It does not apply to a particular model. Installation of a diaphragm pump 3.5.1 General Install the pump level and secure using holes in baseplate. 3.5.2 Electrical Wire electric motors to manufacturer’s instructions, usually on the motor nameplate or junction... -
Page 10: Operations
Cleartec Coalescing Plate Separator Installation, operation, and maintenance Operations Before starting up, make certain that the separator is firmly anchored to the plinth and that all pipework and connections are secure and properly supported. The pump and suction line should be primed before starting for the first time. Checking the float switches Turn the selector switch in the control panel to Automatic. -
Page 11: Maintenance
Cleartec Coalescing Plate Separator Installation, operation, and maintenance Maintenance Cleaning frequency The most suitable period between maintenance is dependent upon the quality of the influent the separator is to treat. It is recommended that initially, maintenance as described below, be performed and adjusted if necessary to meet the quantity of sludge in the system. -
Page 12: How To Clean Separator
Replace the lid and secure it with wing nuts. Protection Allied Pumps recommends protecting this equipment from direct weather and sunlight; equipment should also be protected from direct jets of water from any wash down equipment. Cleartec Coalescing Separaton IOM - 100823 Doc # 47068... -
Page 13: Diaphragm Pump Maintenance
Cleartec Coalescing Plate Separator Installation, operation, and maintenance Diaphragm pump maintenance Item Description Item Description Bowl casing Reduction gear box Diaphragm plate Eccentric block assembly Diaphragm Eccentric bearing housing Suction valve assembly Eccentric bearing housing Discharge valve body Eccentric bolt & spacer Valve seat Circlip Valve seat gasket... -
Page 14: Replacement Of Diaphragm
Cleartec Coalescing Plate Separator Installation, operation, and maintenance Replacement of diaphragm Disconnect power at supply. Remove all four casing bolts. Lift drive support housing (No. 12) complete with motor and gearbox (No. 13) to one side. Note : take care to avoid damage to electrical connection With access now available to diaphragm (No. -
Page 15: Warranty
Allied Pumps have not acted as a consultant nor charged design fees on this project, and are in no way responsible for, nor guarantee any particular level or performance of the treatment plant supplied or effluent quality unless such guarantee is specially given in writing. - Page 16 Appendix A Quickbreak detergent MSDS Cleartec Coalescing Separaton IOM - 100823 Doc # 47068...
- Page 17 Cleartec Coalescing Separaton IOM - 100823 Doc # 47068...
- Page 18 Appendix B - General Arrangement drawing Appendix B General Arrangement (typical layout) Cleartec Coalescing Separaton IOM - 100823 Doc # 47068...
- Page 19 Cleartec Coalescing Separaton IOM - 100823 Doc # 47068...
- Page 20 Appendix C - Maintenance records Appendix C Maintenance records Cleartec Coalescing Separaton IOM - 100823 Doc # 47068...
- Page 21 Maintenance Records Tracker Company_____________________________ Site_________________________________________ Contact______________________________ Phone_______________________________________ Service technician________________ Date commissioned /20__Signed___________________ Cleartec Coalescing Separaton IOM - 100823 Doc # 47068...
- Page 22 ©2023 Allied Pumps. Disclaimer: Allied Pumps reserves the right to modify the informa6on and illustra6ons contained in this document without prior no6ce. The informa6on provided in this document is intended to be helpful. However, this document is not intended to cover all regula6ons that apply to your...
