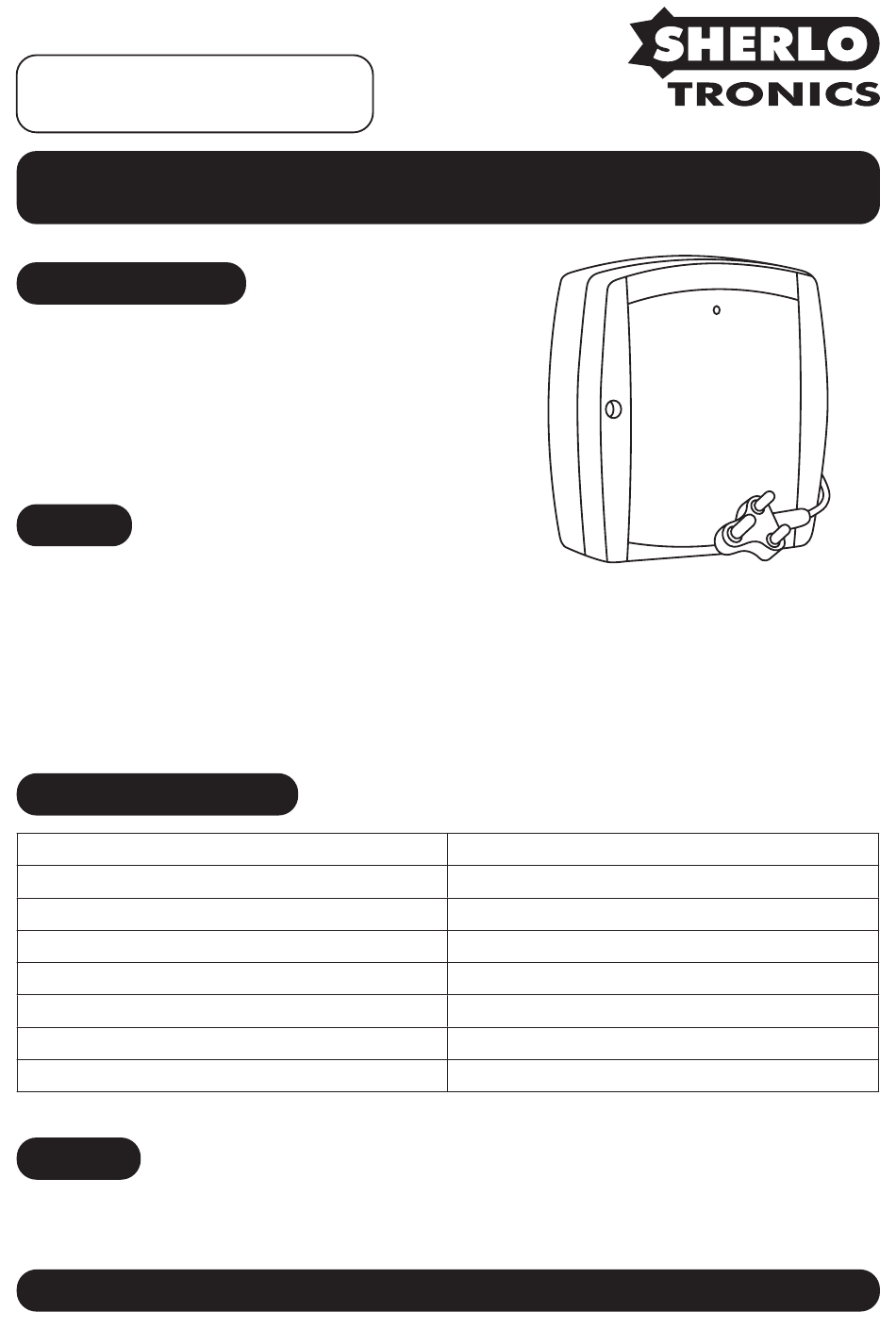

Installation Instructions -
For Service Persons Only
Model No: 3.2AMP
Product Description
The device is a 12VDC Power-supply unit designed
to trickle charge 12VDC GELL/ AGM / LEAD ACID
batteries with a max Amp Hour rating of BNH.
NOTE: This product is not designed for charging
Lithium Ion type batteries.
Features
• Microprocessor controlled charging output.
• Low battery switch off at 11VDC +/-5%.
• Over voltage protection on the battery charger at 15VDC +/-5%
• Resettable Fuse protection on DC output.
• Fuse protection on AC input.
• 50mA Quiescent current on power failure.
• ABS UL94 HB flame resistant plastic enclosure.
Technical Specifications:
Model:
Housing colour and material:
Input Voltage range:
Output Voltage range setable:
Max Current:
Operating Temperature:
Dimension (lxbxh)
Gross weight:
Warranty
This product is sold subject to our standard warranty conditions and is warrantied against defects in
workmanship for a period of 2 years.
Customer Support line: +2711 462 5101 | E-mail: technical@sherlotronics.co.za
3.2AMP
White ABS
110V - 240VAC 50Hz 0.5A
12VDC - 15VDC
3.2A@ 12VDC
-3°C to 49°C
200 x 180 x 80mm
0.805Kg
Advertisement
Summary of Contents for Sherlo Tronics 3.2AMP
- Page 1 English Installation Instructions - For Service Persons Only Model No: 3.2AMP Product Description The device is a 12VDC Power-supply unit designed to trickle charge 12VDC GELL/ AGM / LEAD ACID batteries with a max Amp Hour rating of BNH. NOTE: This product is not designed for charging Lithium Ion type batteries.
- Page 2 Top Controller Board INPUT AC Fail Outputs+ (Positive) for a AC fail condition. When AC is restored goes OV (Negative) +Positive 13.8V DC -Negative OV DC NOTE: Before connecting the battery, plug the unit Disconnect Mains power before wiring up the into mains.
- Page 3 Securing the plastic PCB plate The unit is supplied with a packet of screws. The “plastic PCB plate” is not screwed down so that it is easy to open up the unit to run cables out of the box or to access the mains leads or the DC input wires. Please use the Qty 4:- 4.2 x 9.5mm Self tapper screws that are provided to screw the plastic plate securely to the “Plastic base”...
- Page 4 Battery Lead Plug Installing the Battery You can easily unplug the red/black battery leads With the AC power off, plug the Negative (Black) & if you wish to install or remove a battery from the Positive (red) wires to the battery and then insert the battery into the battery compartment.
