4U Storage Drawer for 19" Server Racks

Product ID

4UDRAWER

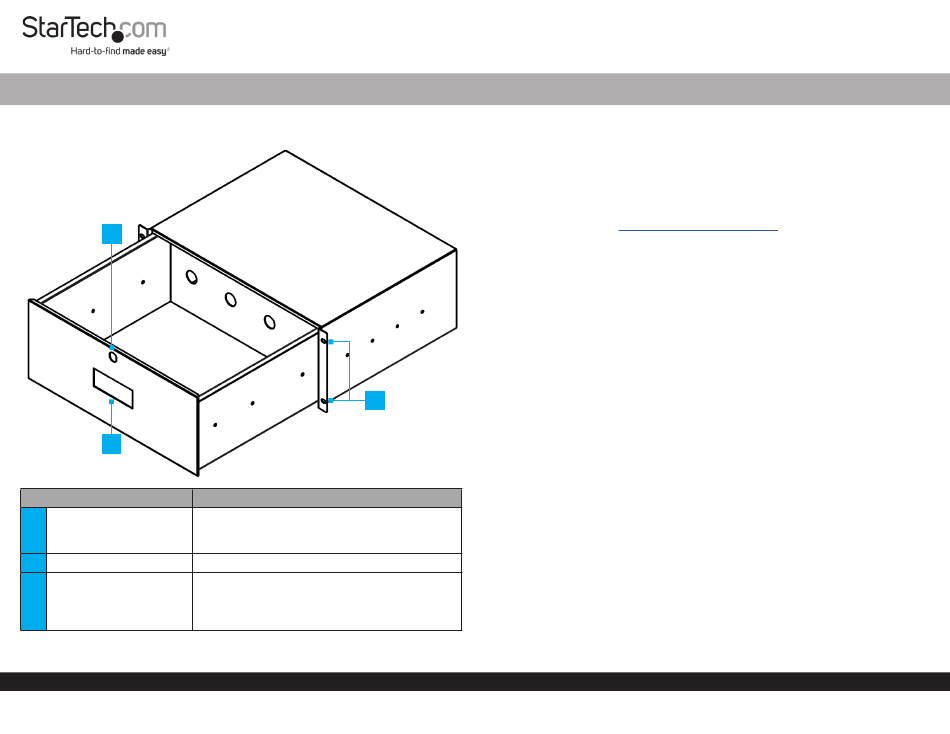

1
2
Component
1
Drawer Key Lock
2
Drawer Handle
3
Mounting Brackets
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
3
*Product may vary from image
Function
Use the included Set of Keys to Lock or Unlock
the Drawer
Rev 02 and above only
Use to Open or Close the Drawer
Fasten the Drawer to the Front Posts of the
Rack or Cabinet
Two Mounting Holes on each side of the
Drawer allow for rack mounting

How to Identify the LOT Code Revision Number

The Revision Number (Rev #) appears as the fifth and sixth digits of the LOT code,
located on the sticker affixed to the product and its packaging. If the LOT code sticker
is missing, the product is Rev 01.

Requirements

For the latest drivers/software, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/4UDRAWER
Phillips Head Screwdriver

Package Contents

4U Storage Drawer x 1
M5 (Rev 01) or M6 (Rev 02 and Above) Screws and Cage Nuts x 4
Plastic Washers x 4 (Rev 02 and Above)
Set of Keys x 1 (Rev 02 and Above)

Installation

Warnings!

Read the entire Quick-Start Guide and ensure the instructions are fully understood
before assembling and using this product. Before adding equipment to this product,
ensure this product has been properly mounted. Never operate this product if parts are
missing or damaged. Ensure the weight of the equipment does not exceed the weight
capacity of this product. If the weight capacity is exceeded, personal injury or damage
to the equipment is possible. This product can support 55.1 lb (25 kg). The maximum
supported weight is only possible when both mounting brackets are properly mounted
to two front posts on a rack. Arrange your equipment in the rack in descending order
of weight. The lightest equipment is installed at the top of the rack, and the heaviest is
on the bottom.
Locate a suitable section in the Rack/Cabinet to mount the 4U Storage Drawer.
1.
The Drawer itself requires 4U of space within the Rack or Cabinet.
(Optional) If the Rack uses Square Mounting Holes, install the included Cage Nuts
2.
into the Square Mounting Holes on the Front Posts of the Rack.
Place the Drawer into the Rack and align the Mounting Holes on the Mounting
3.
Brackets of the Drawer with the Mounting Holes on the Rack (e.g. the cage nuts, if
used).
Use a Phillips Head Screwdriver, and the included M5 or M6 Screws and Plastic
4.
Washers to secure the Drawer to the Rack.
Quick-Start Guide
Manual Revision: July 28, 2023 1:41 PM
