Sauer S650R C Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sauer Flugmotorenbau GmbH
Operator's Manual
Engine
S650R C/E
Sauer Flugmotorenbau GmbH
Nieder-Olmer-Str. 16
55270 Ober-Olm
Deutschland
Germany
Tel.: 06136 89377; Fax: 06136 85466
Phone: 0049 6136 89377; Fax: 0049-6136 85466
e-mail:
, Internet:
info@sauer-flugmotorenbau.de
www.sauer-flugmotorenbau.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S650R C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sauer S650R C

Summary of Contents for Sauer S650R C

  • Page 1: Table Of Contents Germany

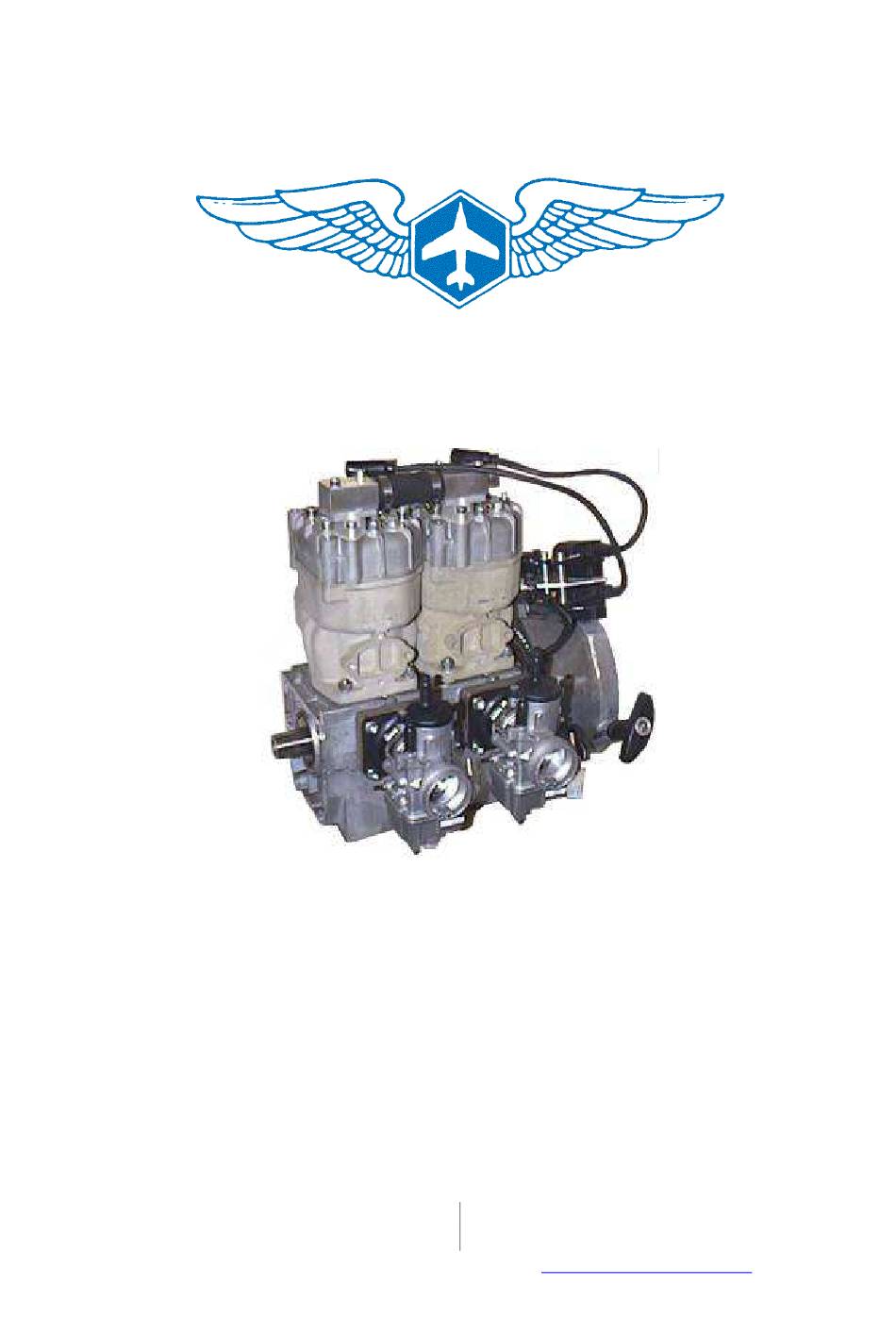

    Sauer Flugmotorenbau GmbH Operator's Manual Engine S650R C/E Sauer Flugmotorenbau GmbH Nieder-Olmer-Str. 16 55270 Ober-Olm Deutschland Germany Tel.: 06136 89377; Fax: 06136 85466 Phone: 0049 6136 89377; Fax: 0049-6136 85466 e-mail: , Internet: info@sauer-flugmotorenbau.de www.sauer-flugmotorenbau.de...
  • Page 2 Operator's Manual Engine Model S650R C/E Read this operator's manual thoroughly before putting the engine into operation for the first time and comply strictly with the instructions given here. In the interests of continual development of our engines we must reserve the right to change conditions of delivery for design, engineering and fixtures.

  • Page 3: Table Of Contents

    Table of Contents Germany ......................1 Phone:0049-6136-89377; Fax: 0049-6136-85466.............. 1 1. Description of the Engine, Mounting Instructions and Technical Data....5 1.1. Overview ..................... 5 1.2. Description of the carburation system............5 1.3. Description of the Ignition System............... 6 1.4. Description of the cooling system ............... 7 2.
  • Page 4 9.5. Excessive Liquid Temperature..............22 10. Exhaust System ..................... 23 10.1. Exhaust parts and measurements ............24 11. Wiring Diagrams .................... 25 11.1. Single PVL Ignition system – S650R ............26 11.2. Dual PVL ignition system – S650R ............27...

  • Page 5: Description Of The Engine, Mounting Instructions And Technical Data

    Description of the Engine, Mounting Instructions and Technical Data 1.1. Overview The S650R engine (Figure 1.1.1-1) of Sauer Flugmotorenbau Gmbh is a two cylinder in-line two-stroke liquid cooled engine. The cylinders consist of an aluminium alloy with a Nikasil coated running surface that is highly resistant to wear.

  • Page 6: Description Of The Ignition System

    Figure 1.1.2-1 (Dual Dellorto Carburation System) 1.3. Description of the Ignition System The ignition system (Figure 1.3-1, 1.3-2) consists of an armature plate, a magneto, E-Box(s), ignition coils and the ignition cables with the required number of spark plug leads. The ignition system is completely electronic and possesses an E-PROM for a freely programmable ignition curve however, this can only be carried out by the manufacturer.

  • Page 7: Description Of The Cooling System

    Figure 1.3-3 (View of ignition side with installed ignition system) 1.4. Description of the cooling system The S650R engine has a mechanically operated liquid cooling system. (Figure 1.4-1). The liquid pump is installed above the flywheel housing. It is driven by a V belt pulley that is fixed to the ignition system’s magnetic flywheel.

  • Page 8: Installation Instructions

    Installation instructions 3.1. Mounting and securing the engine The six screw threads (M10) located on the underside of the S650R engine crankcase is for fastening the engine to a suitable engine mount. Figure 3.1-1 (Fastening thread points) The engine should be mounted so that the moment from the engine to the mounts can be absorbed as widely as possible.

  • Page 9: The Operation Of Dual Carburettors

    Figure 3.3-1 (Fuel-diaphragm pump with impulse connection) The positioning of the fuel tank over the engine is advantageous as would ensure a reasonable fuel supply pressure. It is recommended to maintain a consistent fuel pressure under all conditions. Additional monitoring of fuel pressure by means of a fuel pressure gauge may also be considered. When installing the fuel tank beneath the engine, the maximum fuel line length between the fuel tank and diaphragm pump should not exceed 2,000mm.

  • Page 10: Monitoring Apparatus

    4.1. Exhaust gas temperature A gauge that we recommend on all Sauer two stroke engines is the Westach Exhaust Gas Temperature gauge (EGT) as in figure 3.2.1. This gauge is a reliable measurement tool that measures the exhaust gases as they exit the engine.

  • Page 11: Fuel Pressure

    tighten up the clamp. As an option, manifolds are provided to suit the "bayonet probe" type. The terminal cable can be lengthened to a maximum of 4.5 metres without affecting the accuracy of the instrument. Route all wires away from the manifold and other heat sources. Support the wires every 300mm intervals, using tie wire or similar.

  • Page 12: Coolant Temperature Gauge

    Figure 3.3.1 Westach Liquid Coolant Temperature gauge 029.36 Instructions for assembling the coolant system Compensation tank Filler cap with integrated expansion tank Reduction with throttle Thermostat Ventalation screws 5.1. Operation The pump forces the coolant into the cylinder jacket the passes into the heads. From which it flows back via the bypass through the thermostat into the coolant pump.
  • Page 13 • The water filling cap must be filled to the brim. • In cold conditions the compensation tank must be filled about one third of coolant. • Take care to vent the cooling system thoroughly before the engine is started, •...

  • Page 14: Specifications - S650R Engine

    Specifications – S650R engine Table 4 .1 Manufacturer Sauer Flugmotorenbau GmbH Model S650R Operating mode Two stroke Number of cylinders Two in line Piston Capacity 625 cm (38.1 cu in) Stroke Length 69 mm (2.72 in) Bore 76mm (2.99 in) Compression ratio 9.5:1...

  • Page 15: Initial Inspection

    Sauer Flugmotorenbau GmbH does not give explicit instructions for running in its engines, since the nickel-silicium coating of the cylinder and the aluminium pistons do not have to wear to each other. The engines are ready for full throttle from the time they are built if the maximum temperatures of the cylinder head and exhaust gases mentioned earlier are not exceeded.

  • Page 16: Powering Down The Engine

    Sparkplug wrench 20.6/20.8 Torque wrench 0 -100 Nm Screwdriver Special Tools: The special tools are available for purchase under the indicated Sauer numbers from Sauer or a Sauer distributor. Description Sauer-Number Magnetic wheel - extractor W 138 (Piston ring clip (Piston –aid in assembly))

  • Page 17: Maintenance Rate - Daily Inspections

    Maintenance rate - Daily inspections Before operating the engine, a thorough daily inspection should be carried out. Observe the following points: Air filter - check condition and installation Starter - check condition and installation Ignition system - check condition, fastening, and connections Pump V belt - check condition and belt tension Cowling - check overall condition and the fasteners Crank case and cylinders - check for leaks overall condition of installation...

  • Page 18: Synchronisation Of Dual Dellorto Carburettors

    Only original replacement parts should be used. Information concerning the carburettor assembly may be obtained from AATI Pty Ltd or your Sauer distributor. Should any parts be required, the carburettor specification should be quoted. This is identified on the side of the carburettor intake (…/…).

  • Page 19: Spark Plugs And Sparkplug Leads

    Where there is a wet dark brown to black colouring, the engine is running with too thick a mixture. In both cases, AATI Pty Ltd or your Sauer distributor should be contacted.

  • Page 20: Changing The Coolant Pump V Belt

    Figure 8.1 Belt tension. Adjustment of the belt tension is made by undoing the upper lock nut and adjusting the belt tension by turning the lower nuts thereby moving the pump up or down. When the satisfactory tension is gained, retighten the upper locknut.

  • Page 21: Trouble Shooting

    No spark or weak spark due to defective spark plug, spark plug cap, or a defective ignition Solution: Replace spark plug, spark plug cap, or have the manufacturer or an authorized Sauer service centre replace the defective ignition 9.2. Engine will not Idle...

  • Page 22: Engine Does Not Develop Full Power

    Adjust butterfly valve accordingly Cause: One of the two E-Box circuitry is defective Solution: Send engine to Sauer Flugmotorenbau GmbH or an authorized Sauer service centre Cause: Defective piston, piston ring, cylinder head, or cylinder Solution: Send engine to Sauer Flugmotorenbau GmbH or an authorized Sauer service centre...
  • Page 23 10. Exhaust System Page 23 of 27...
