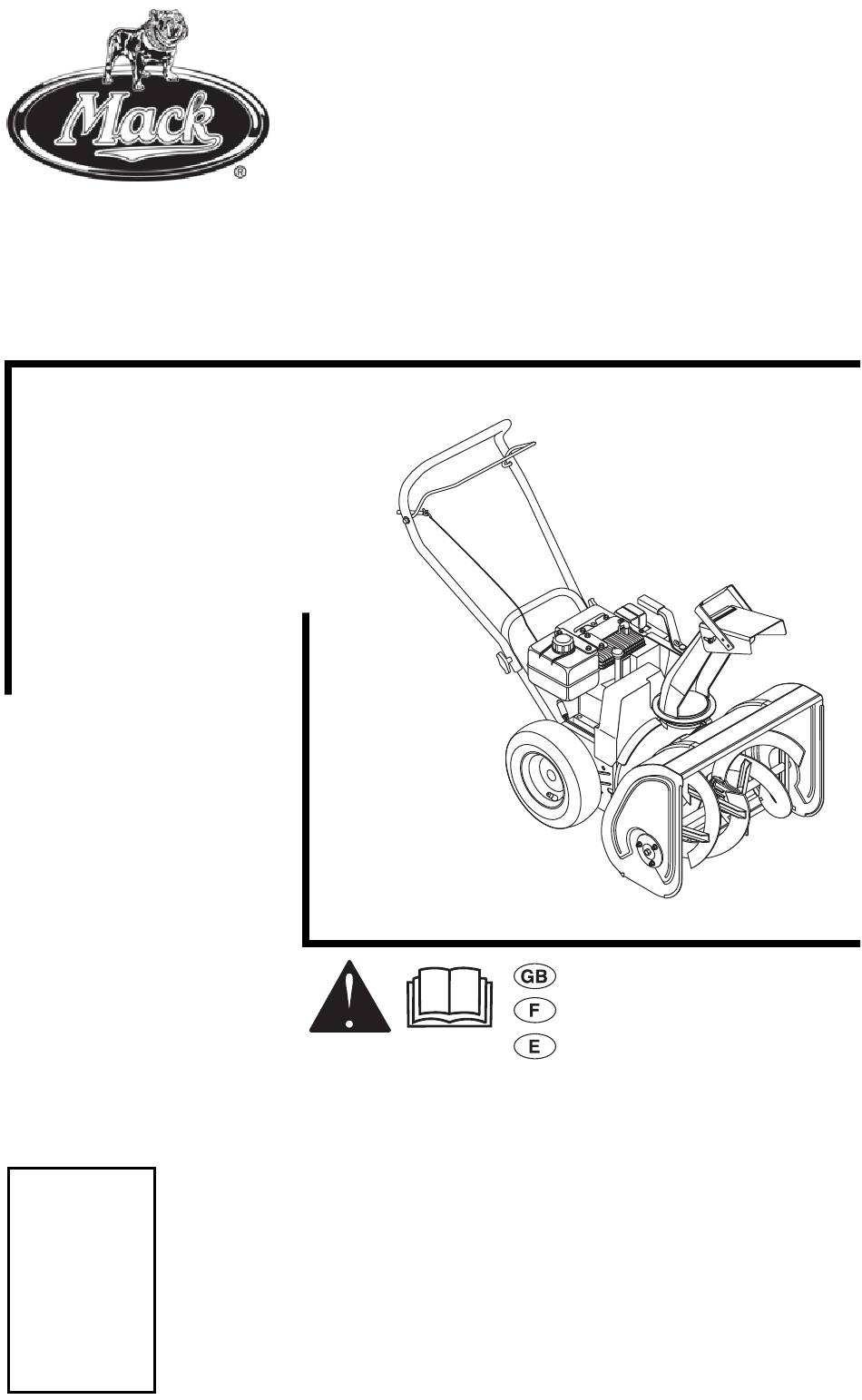

Snow Thrower

Owner/Operator Manual

Models

932400 - 520

Transfer

model &

serial number

label from

product

registration

here.

Coller l'autocollant du

modèle et du numéro de

série dans cet encadré.

Transferir aquí la etiqueta

del modelo y número de

serie del registro del

producto.

ENGLISH

FRANÇAIS

ESPAÑOL

03244400C 8/01

Supercedes 03244400,A,B

Printed in USA

Table of Contents

Need help?

Do you have a question about the 932400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mack 932400

Page 1 Snow Thrower Owner/Operator Manual Models 932400 - 520 ENGLISH FRANÇAIS ESPAÑOL Transfer Coller l’autocollant du model & modèle et du numéro de serial number série dans cet encadré. label from Transferir aquí la etiqueta product del modelo y número de...
Page 2: Controls And Features
CONTROLS AND FEATURES ENGLISH FRANÇAIS ESPAÑOL 1. Attachment Clutch Bail 1. Commande d’embrayage 1. Asa del embrague 2. Spark Plug and Wire de l’outil del accesorio 3. Chute Control Lever 2. Bougie et ﬁl 2. Bujía y cable 4. Chute Deﬂector 3.
Page 3 Figure 1 OS2085 OS1915...
Page 4: Table Of Contents
Warranty ......20 INTRODUCTION PRODUCT REGISTRATION Mack, Mack and the Bulldog design oval logo, the Bulldog design, and Built Like a Mack A warranty registration card must be ﬁlled out, Truck are Trademarks of Mack Trucks, Inc.
Page 5: Safety
DELIVERY 2. Understand all Safety Precautions provided in the manuals. Customer Note: If you have purchased this 3. Review control functions and operation of product without complete assembly and the unit. Do not operate the snow thrower instruction by your retailer, it is your unless all controls function as described responsibility to: in this manual.
Page 6 SAFETY DECALS AND LOCATIONS ALWAYS replace missing or damaged Safety Decals. Refer to ﬁgure below for Safety Decal locations. DANGER / PELIGRO ROTATING PARTS Stop engine & remove ignition key DANGER / PELIGRO before clearing. ROTATING PARTS PIECES EN ROTATION Keep clear of auger while engine Arreter le moteur et retirer la clé...
Page 7 OPERATIONAL SAFETY RULES ALWAYS keep hands away from all pinch points. Walk Around Inspection DO NOT touch unit parts which might be hot Complete a walk around inspection of unit and from operation. Allow parts to cool before work area to understand: attempting to maintain, adjust or service.
Page 8 Abnormal Vibrations are a warning of trouble. FUEL SAFETY RULES Striking a foreign object can damage unit. Fuel is highly ﬂammable and its vapors are Immediately stop unit and engine. Remove explosive. Handle with care. Use an approved key and wait for all moving parts to stop. fuel container.
Page 9: Assembly
ASSEMBLY 3. Ensure Z bend end of clutch cable is connected to hole in tab on right side of WARNING: AVOID INJURY. Read clutch bail. and understand Assembly and Fuel Safety Rules before proceeding. Check Auger Gearcase Oil Check oil level in auger gearcase (see Tools Required Maintenance Section).
Page 10: Operation
OPERATION WARNING: AVOID INJURY. Read Choke Control Knob and understand Operational and Fuel 1. Choke Closed position: Safety Rules before proceeding. Choke Control chokes off air to engine for easier start. CONTROLS AND FEATURES 2. Choke Open position: See Figure 1 for all Controls and Features. allows for normal operation.
Page 11 FILLING FUEL TANK STARTING AND SHUT-OFF WARNING: AVOID INJURY. Read WARNING: FAILURE TO FOLLOW and understand Fuel Safety Rules in INSTRUCTIONS could result in Safety section before proceeding. personal injury and or damage to unit. DO NOT attempt to start your unit at this time.
Page 12: Maintenance
4. Make sure that the attachment clutch bail SNOW REMOVAL is fully disengaged. IMPORTANT: Allow unit and engine to adjust 5. Push Primer Bulb 2 or 3 times for cold to the outdoor temperatures before clearing engine. snow. 1. Select discharge chute and deﬂector NOTE: When temperature is below -15˚F (-26˚C) additional priming may be position and direction.
Page 13 NOTE: Snow thrower has an oil drain cut-out MAINTENANCE SCHEDULE on the left side of unit frame. Drain engine oil through this cut-out to prevent spills. Each Every Every Yearly 5 hrs. 25 hrs. CHECK TIRE PRESSURE Check • Keep tires at pressure listed on the tire Fasteners sidewall.
Page 14: Service & Adjustments
Grease OS1843 Figure 6 SERVICE AND ADJUSTMENTS WARNING: AVOID INJURY. Read CAUTION: Always support snow and understand Maintenance and thrower frame and blower housing Service/Fuel Safety Rules before when loosening the cap screws proceeding. holding them together. Never loosen cap screws while unit is in service position.
Page 15 2. Engage clutch bail to hold brake out of the 6. Check clutch adjustment. See Attachment way and tip unit back together. Secure Clutch/Brake. with cap screws. 3. Place belt onto engine sheave. WARNING: AUGER / IMPELLER MUST STOP within 3 seconds when 4.
Page 16 ATTACHMENT CLUTCH / BRAKE e. Hold adjuster body with pliers and tighten jam nut with wrench. ADJUSTMENT 4. Check spring length. a.Measure the length of the clutch cable WARNING: IMPROPER spring. ADJUSTMENT could result in unexpected movement of auger b. Engage and hold the attachment and impeller causing death or clutch bail.
Page 17 DISCHARGE CHUTE If Chute does not stay in position while operating, tighten nut on carriage bolt at pivot point to increase tension on spring (Figure 10). If the deﬂector cap does not remain set in position tighten nut on right side of cap until proper drag is obtained.
Page 18: Storage
STORAGE Keep all nuts, bolts and screws properly tightened and know unit is in safe working WARNING: AVOID INJURY. Read condition. and understand Storage Safety Rules in Safety section before proceeding. Store unit in a cool, dry protected area. LONG TERM SHORT TERM Clean unit thoroughly and lubricate (see IMPORTANT: NEVER spray unit with water or...
Page 19: Service Parts
SERVICE PARTS SPECIFICATIONS Be sure to always use genuine Ariens parts Model Number 932400 to keep your snow thrower running like new. Description Part No. Description Engine - Tecumseh HSSK50- 53200500 Shear Bolt Replacement Kit 67415S 03243657 Scraper Blade 5 (3.73)
Page 20: Warranty
2 Year Limited Warranty Ariens Company warrants to the original purchaser that consumer products manufactured by Ariens Company will be free from defects in material and workmanship for a period of two (2) years after the date of purchase, and will repair any defect in material or workmanship, and repair or replace any defective part, subject to the conditions, limitations Ariens Company and exclusions set forth herein.
