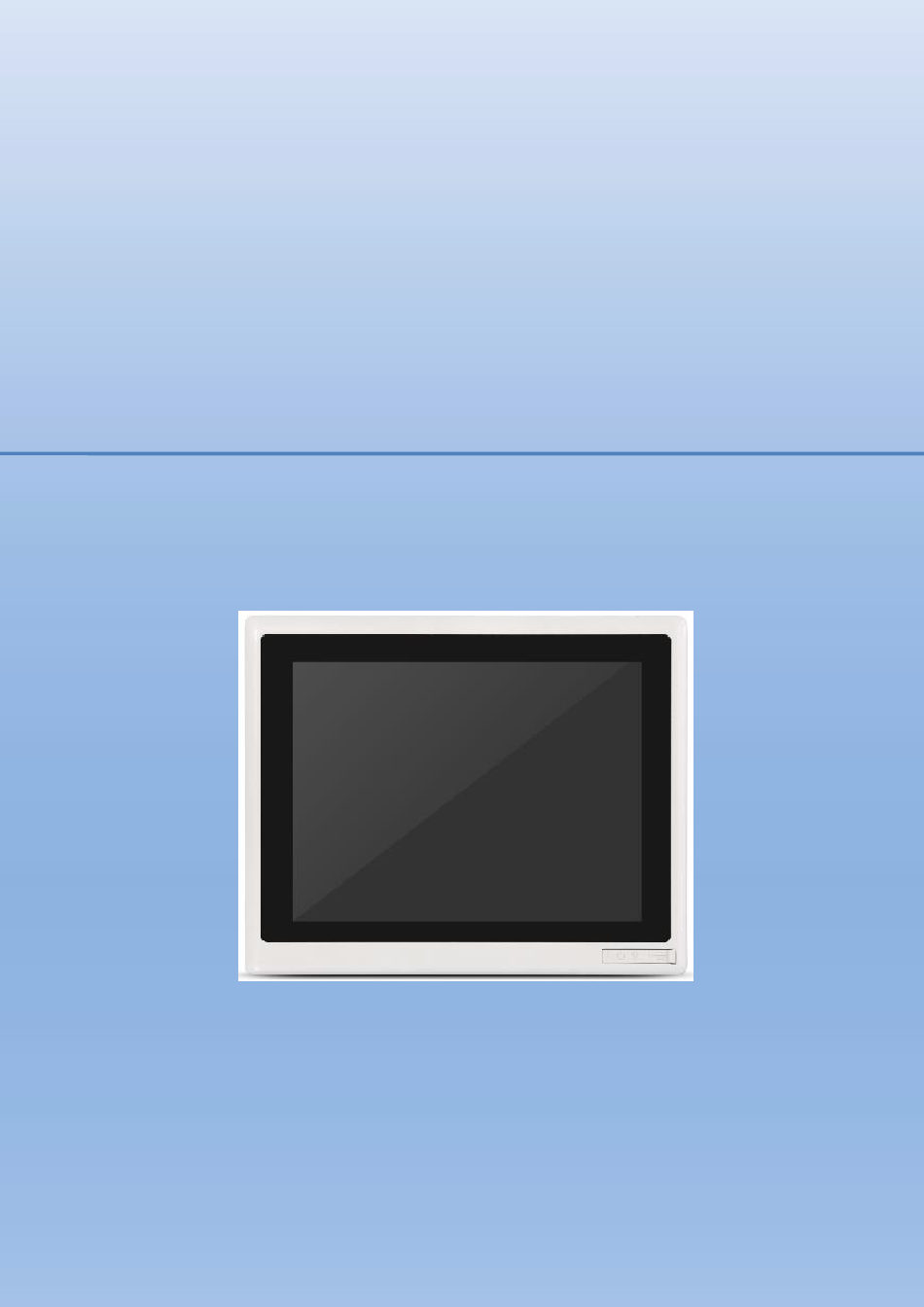

  • Page 1 User’s Manual ALAD-K1220T User’s Manual...
  • Page 2 User’s Manual Version Note Ver. Note Date Writer A1.0 First publish 20170504 Eileen Lee...
  • Page 3 Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. RTL is a trademark of Realtek Semi-Conductor Co., Ltd. All other product names or trademarks are properties of their respective owners. For more information on this and other JHC products, please visit our websites at: http://www.jhctech.com.cn...
  • Page 4 User’s Manual Product Warranty (2 years) JHC warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by JHC, or which have been subject to misuse, abuse, accident or improper installation.
  • Page 5 Technical Support and Assistance Step 1. Visit the JHC web site at www.jhctech.com.cn where you can find the latest information about the product. Step 2. Contact your distributor, sales representative, or JHC’s customer service center for technical support if you need additional assistance.

  • Page 6: Table Of Contents

    User’s Manual Contents General Information ............................1 1.1 Introduction ............................2 1.2 Features ..............................2 1.3 Specifications ............................2 1.3.1 General ............................2 1.3.2 Display and Touch ........................3 1.3.3 Ethernet ............................4 1.3.4 Audio (Optional) ........................4 1.3.5 Power Consumption........................4 1.4 Environmental Specifications .......................
  • Page 7 User’s Manual 3.7 Getting Help ............................38 Insyde BIOS Setup Utility ........................38 System Date .............................. 39 System Time ............................. 39 3.9.1 ACPI Settings ..........................40 3.9.2 CPU Configuration .......................... 41 Driver Installation ............................. 58 4.2 Installation: ............................59 SYSTEM RESOURCE ............................. 63 5.1 WDT Function ............................

  • Page 8: General Information

    User’s Manual General Information...

  • Page 9: Introduction

    2*COM ports, 1*Mini PCIe socket is PCIex1 and USB signal and 1*M.2 socket. ALAD-K1220T series support 12.1 inch 1024*768@60Hz TFT LCD, with 5-wire resistive or projected capacitive touch screen, 1*2.5 inch SATA HDD driver bay and 1*M.2 for storage, DC 9~36V power input.

  • Page 10: Display And Touch

    User’s Manual Watchdog Timer: 255-level interval timer, setup by software Serial Ports: 2* RS232/422/485, D-sub 9 male USB: 4* USB 3.0 Type A Port in rear Expansion Interface: be mSATA 1* Mini PCIe with PCIeX1\USB2.0 or SATA signal, support wifi and 3G etc. ,jumper to 1*PCI/PCIe X4(X1 signal)( Optional) 1* M.2 2242 B-Key（PCIe+USB+SATA）...

  • Page 11: Ethernet

    User’s Manual TOUCH： 5-wire resistive touch Projected capacitive touch Type Resolution Gap less Gap less Light transmittance USB/RS232 USB/RS232 Interface Power Consumption +5 V @200 mA +5 V @300 mA Windows and Linux Windows and Linux Click Lifetime 35 million times 3000 million times 1.3.3 Ethernet ®...

  • Page 12: Mechanical Specifications

    With SSD/mSATA: 1Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis Shock during operation: – With SSD/mSATA: 10G, IEC 60068-2-64, half sine, 11 ms duration EMC: CE, FCC Class A 1.5 Mechanical Specifications ALAD-K1220T Dimensions: Unit: mm Figure 1.1 Figure 1.2...

  • Page 13: Hardware Installation

    User’s Manual Hardware Installation...

  • Page 14: Introduction

    2.2 Jumpers and connectors The ALAD-K1220T Embedded Panel Computer consists of a JHC SBC (Single Board Computer) board EPI-I901 that is housed in an aluminum plate chassis. Your HDD and SDRAM, are all readily accessible by removing the aluminum cover. Any maintenance or hardware upgrades can be easily completed after opening the chassis.

  • Page 15: Setting Jumpers

    2.2.1 Setting Jumpers You can configure your ALAD-K1220T to match the needs of your application by setting the jumpers. A jumper is the simplest kind of electrical switch. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 16: Jumper Location

    User’s Manual 2.3 Jumper Location The ALAD-K1220T Embedded Panel Computer has a number of jumpers inside the chassis that allows you to configure your system to suit your application. The table below lists the functions of the various jumpers. The table below shows the function of each of the board's jumpers: Figure 2.5 EPI-I901 Jumper...

  • Page 17: Jp1/Jp2:Com3/Com4 Rs232 Power Select

    User’s Manual 2.3.1 JP1/JP2:COM3/COM4 RS232 Power Select Figure 2.10 JP1 (for COM 3) and JP2 (for COM 4) are used to configure Serial COM ports to pure RS232 or RS232 with power. The pin functions of Com 3 and COM 4 will vary according to JP1’s and JP2’s setting respectively.

  • Page 18: Jp4: Clear Coms Data

    User’s Manual Figure 2.6 When using JP3 “Power On” feature to power the system back on after a power failure occurs, the system may not power on if the power lost is resumed within 5 seconds (power flicker). 2.3.3 JP4: Clear COMS Data Figure 2.7...
  • Page 19 User’s Manual If you encounter the followings, a) CMOS data becomes corrupted. b) You forgot the supervisor or user password. you can reconfigure the system with the default values stored in the ROM BIOS. To load the default values stored in the ROM BIOS, please follow the steps below. 1.

  • Page 20: Jp7:Lcd Back Light Power Select

    User’s Manual 2.3.5 JP7:LCD Back light Power Select Figure 2.8 JP7 is used to select the power supplied with the LCD panel. Important: Before powering-on the system, make sure that the power settings of JP7 match the LCD panel’s specification. Selecting the incorrect voltage will seriously damage the LCD panel. 2.3.6 JP8:M.2 Signal Select Figure 2.11 JP8 is used to select the M.2 signal.

  • Page 21: I/O Indication

    Remark:1 DC 9-36V; 2 Remote SW; 3 HDMI; 4 USB*4; 5 LAN*2; 6 COM*2 2.4.1 Ethernet Connector (LAN) The ALAD-K1220T is equipped with two Intel I210AT chip for 10/100/1000Mbps Ethernet controllers. The Ethernet port provides a standard RJ-45 connector with LED indicators on the front side to show its...

  • Page 22: Power Input Connector (Dc-In)

    User’s Manual Figure 2.14 Ethernet Connector Table 2.1: RJ-45 Connector pin assignments 10/100/1000BaseT Signal Name TX+(10/100), BI_DA+(GHz) TX-(10/100), BI_DA-(GHz) RX+(10/100), BI_DB+(GHz) BI_DC+(GHz) BI_DC-(GHz) RX-(10/100), BI_DB-(GHz) BI_DD+(GHz) BI_DD-(GHz) 2.4.2 Power Input Connector (DC-IN) This 3-pin 3.81mm connector provides maximum of 60W power and is considered a low power solution. Connect a DC power cord to this connector.

  • Page 23: Usb Connector

    User’s Manual Figure 2.16 2-pin 3.81 Connector Table 2.3: Power SW Connector Pin Assignments Signal Name PWR_BTN 2.4.4 USB Connector The USB device allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. The EPI-I901 board is equipped with four on board USB 3.0 ports (USB 1-2/3-4), two on board USB 2.0 ports (USB 4-5) .

  • Page 24: Com1/2 Connector

    User’s Manual Figure 2.18 USB3.0 Connector Table 2.5: USB3.0 Port Pin Assignments Signal Name VBUS StdA_SSRX- StdA_SSRX+ GND_DRAIN StdA_SSTX- StdA_SSTX+ Shell Shield 2.4.5 COM1/2 Connector COM 1 and COM 2 are D-sub 9-pin connectors , they can be configure as RS232/RS422 and RS485 by BIOS setting.

  • Page 25: Com3/4 Connector

    User’s Manual 2.4.6 COM3/4 Connector COM3/4 are all 2*5 10-pin connectors, external serial port, standard RS232. The pin functions of COM port 3/4 will vary according to JP1’s and JP2’s setting. JP1 and JP2 allows you to configure the Serial COM port 3/4 to RS232.

  • Page 26: Sata(Serial Ata) Power Connector

    User’s Manual 2.4.8 SATA(Serial ATA) Power Connector 2.5mm Pitch 1*4 Pin wafer Connector, One on board 5V and 12V output connectors are reserved to provide power for SATA devices. Figure 2.22 SATA Power Connector Table 2.8: SATA Power Pin Assignments Signal Name DC 12V DC 5V...

  • Page 27: Installation

    User’s Manual 2.5 Installation 2.5.1 HDD/SSD Installation Step 1.Unscrew the 2 screws on the HDD cover, and open the HDD cover. Figure 2.24...
  • Page 28 User’s Manual Figure 2.25 Step 2.Screw the HDD/SSD on the drive bay though 4 screws . Figure 2.26 Step 3.Push the drive bay into the SATA connector, and screw 1 screw to lock drive bay .
  • Page 29 User’s Manual Figure 2.27 Figure 2.28 Step 4.Push HDD cover back to the chassis, screw 2 screws on the HDD cover.

  • Page 30: Installing Sodimm Module

    User’s Manual Figure 2.29 2.5.2 Installing SODIMM module Step 1. Unscrew the 9 screws on the back chassis, and open the back chassis .
  • Page 31 User’s Manual Figure 2.30 Figure 2.31 Step 2.Pull out 4 cable connectors from front IO card、touch panel and LCD. Figure 2.32 Step 3. Hold the module with its notch aligned with the socket of the board and insert it at a 30 degree...
  • Page 32 User’s Manual angle into the socket. Push down the module until the clips at each end of the socket lock into position. Figure 2.33 Figure 2.34 Step 4. Connect 4 cable connectors into front IO card、touch panel and LCD...
  • Page 33 User’s Manual Figure 2.35 Step 5. Close the chassis back to the front panel, and screw the 9 screws on the chassis. Figure 2.36...

  • Page 34: Installing Msata Flash Card Module

    User’s Manual 2.5.3 Installing mSATA Flash Card module Step 1. Unscrew the 9 screws on the back chassis, and open the back chassis . Figure 2.37 Figure 2.38...
  • Page 35 User’s Manual Step 2.Pull out 4 cable connectors from front IO card、touch panel and LCD. Figure 2.39 Step 3. Hold the module with its notch aligned with the socket of the board and insert it at a 30 degree angle into the socket. screw 1 screws to the holder as shown in the following picture. Figure 2.40...
  • Page 36 User’s Manual Figure 2.41 Step 4. Connect 4 cable connectors into front IO card、touch panel and LCD Figure 2.42 Step 5. Close the chassis back to the front panel, and screw the 9 screws on the chassis.

  • Page 37: Installing I/O Cover

    User’s Manual Figure 2.43 2.5.4 Installing I/O Cover Step 1. Put the panel PC on the plane desk as shown in the following picture. Figure 2.44...
  • Page 38 User’s Manual Step 2. Aligning the I/O cover at the I/O opening, note the key holes. Figure 2.45 Figure 2.46...

  • Page 39: Front Usb

    User’s Manual Step 3. Plug and push the I/O cover into the I/O opening. Figure 2.47 2.5.5 Front USB Step 1. Pull out the rubber cover from the hole Figure 2.48...
  • Page 40 User’s Manual Figure 2.49 Step 2. Plug USB device into the USB type A connector. Figure 2.50...

  • Page 41: Panel Mounting

    User’s Manual 2.5.6 Panel Mounting Step 1. Install the panel PC into the panel opening. Figure 2.51 Step 2. Pull out the 4 clamps from the holes around the two sides of the bezel. Figure 2.52...
  • Page 42 User’s Manual Figure 2.53 Step 3. Insert the screws into each clamp and fasten them. Figure 2.54 Figure 2.55...

  • Page 43: Bios Setup

    User’s Manual BIOS Setup...

  • Page 44: Overview

    User’s Manual 3.1 Overview The BIOS is a program that takes care of the basic level of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data retains even when the power is off.

  • Page 45: Legends

    User’s Manual 3.4 Legends 3.5 Scroll Bar When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields. 3.6 Sub menu When “...

  • Page 46: System Date

    User’s Manual The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. Figure 3.1 Main System Date The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December.

  • Page 47: Acpi Settings

    User’s Manual you set some features according to your preference. Important:Setting incorrect field values may cause the system to malfunction. Figure 3.2 Advanced 3.9.1 ACPI Settings This section is used to configure the system ACPI parameters. Figure 3.3 ACPI...

  • Page 48: Cpu Configuration

    User’s Manual  Wake on LAN This field use to enable or disable the LAN signal to wake up the system.  After G3 This field is to specify what state to go when power is re-applied after a power failure (G3 state). >Always On The system working state.
  • Page 49 User’s Manual 3.9.3 Video Configuration This section configures the video settings. Figure 3.5 Video Configuration  Primary Display Select which of IGD Graphics device should be Primary Display  Integrated Graphics Device Enable or disable the IGD function.  Boot display Set the display device combination.
  • Page 50 User’s Manual Figure 3.6 Boot display  LCD Panel Type Select the LCD panel type.  LCD Panel Color Depth Select the LCD panel color depth: 18 bit, 24 bit, 36 bit, and 48 bit.  Dimming Control Select Dimming Type PWM/DC mode for LCD.
  • Page 51 User’s Manual Figure 3.7 LCD panel 3.9.4 Audio Configuration This section is used to configure the audio settings. Figure 3.8 Audio Configuration  Audio Controller Control the detection of the Azalia device.
  • Page 52 User’s Manual >Disabled Azalia will be unconditionally disabled. >Enabled Azalia will be unconditionally enabled. 3.9.5 SATA Configuration This section is designed to select the SATA controller and the type of hard disk drive which are installed in your system unit. Figure 3.9 SATA Configuration ...
  • Page 53 User’s Manual > RAID Mode This option allows you to create RAID using Intel® Rapid Storage Technology or other methods on the Serial ATA devices.  Serial ATA Port 0, and 1 This field is used to enable or disable the serial ATA port. 3.9.6 USB Configuration This section is used to configure the parameters of the USB device.
  • Page 54 User’s Manual 3.9.7 PCI Express Configuration This section configures settings relevant to PCI Express root ports.  PCI Express Root Port 3 and PCI Express Port 4 link to the EIO connector.  PCI Express Root Port 5 links to the Ethernet controller I210AT on LAN1. ...
  • Page 55 User’s Manual Figure 3.12 PCI Express Root Port Figure 3.13 PCI Express Root Port  PCI Express Root Port This field is used to enable or disable the PCI Express Root Port.  PCIe Speed...
  • Page 56 User’s Manual Select the speed of the PCI Express Root Port: Gen1,Gen2 or Gen3. 3.9.8 ME Configuration This section configures settings relevant to flash ME region.  Me Fw Image Re-Flash This field is used to enable or disable the flash ME region. Please set this item as Enable when doing on board BIOS flash ROM update.
  • Page 57 User’s Manual 3.9.9 SIO NUVOTON6106D This section configures the system super I/O chip parameters. Figure 3.15 SIO NUVOTON6106D  CPU Smart Fan Control Enable or disable the CPU smart fan.  Boundary 1 to Boundary 4 Set the boundary temperatures that determine the operation of the fan with different fan speeds accordingly.
  • Page 58 User’s Manual Figure 3.16 SIO NUVOTON6106D  Serial Port 1 to Serial Port 6 Configure the settings to use the serial port. >Disable No configuration >Enable User configuration  Type Choose RS232/RS422/RS485 (Peer-to-Peer) for the serial port type. COM 5 for ==> Resistance touch panel controller COM 6 for ==>...
  • Page 59 User’s Manual Enable or disable the case open.  AC Power Loss Set the AC power loss always off/on. This item is only working when JP6 (auto power on) jumper is set as 1-2 on.  PC Health Status This field only displays the PC health status. Figure 3.17 PC Health Status...
  • Page 60 User’s Manual 3.9.10 Security Figure 3.18 Security  TPM Availability Show or hide the TPM availability and its configurations.  TPM Operation Enable or disable the TPM function. It displays the following options: • No Operation: No changes to the current state. •...
  • Page 61 User’s Manual 3.9.11 Boot Figure 3.19 Boot  Numlock Select the power-on state for numlock.  Boot Type Select the boot type. The options are Dual Boot Type, Legacy Boot Type or UEFI Boot Type.  Network Stack This option is shown only when the boot type is set to Dual or UEFI.Enable or disable UEFI network stack.
  • Page 62 User’s Manual Note: If the boot type is set to UEFI, the method for RAID volume creation will be different. Please refer to Chapter 5 - RAID for more information.  Boot Device Priority This section configures legacy boot order. This menu is shown only when the boot type is set to Legacy or Dual.
  • Page 63 User’s Manual Figure 3.21 Boot Type Order Figure 3.22 USB Boot...
  • Page 64 User’s Manual 3.9.12 Exit Figure 3.23 Exit  Exit Saving Changes Select this field and then press <Enter> to exit the system setup and save your changes.  Load Optimal Defaults Select this field and then press <Enter> to load optimal defaults. ...

  • Page 65: Driver Installation

    User’s Manual Installation Driver...

  • Page 66: Installation

    Step 9– Install IO Driver Please read instructions below for further detailed installations. 4.2 Installation: Insert the ALAD-K1220T CD-ROM into the CD-ROM drive. And install the drivers from Step 1 to Step 4 in order. Step 1 –Install Intel Chipset Software Installation Utility 1)Setup is ready to install the utility.
  • Page 67 User’s Manual 3)Go through the readme document for system requirements and installation tips then click Next. 4)Setup is now installing the driver. Click Next to continue. 5)Click “Yes, I want to restart this computer now” then click Finish. Step 3 –Install Audio Drivers 1)Setup is ready to install the driver.
  • Page 68 User’s Manual 2) The step shows the components which will be installed. Then, Click Next. 3) The step displays the installing status in the progress. 4) Click “Finish“ when the installation is complete. Step 7 –Install HW Utility Setup is ready to install the driver. 2)Click “Next”...
  • Page 69 User’s Manual 2)Read the license agreement carefully.Click “I accept the terms in the License Agreement” then click Next. 3)Read the file information then click Next. 4)Setup is ready to install the driver.Click Next.

  • Page 70: System Resource

    User’s Manual SYSTEM RESOURCE...

  • Page 71: Wdt Function

    User’s Manual 5.1 WDT Function WDT Set Example See the function: WD_SetTimerValue(ucResetTime)
