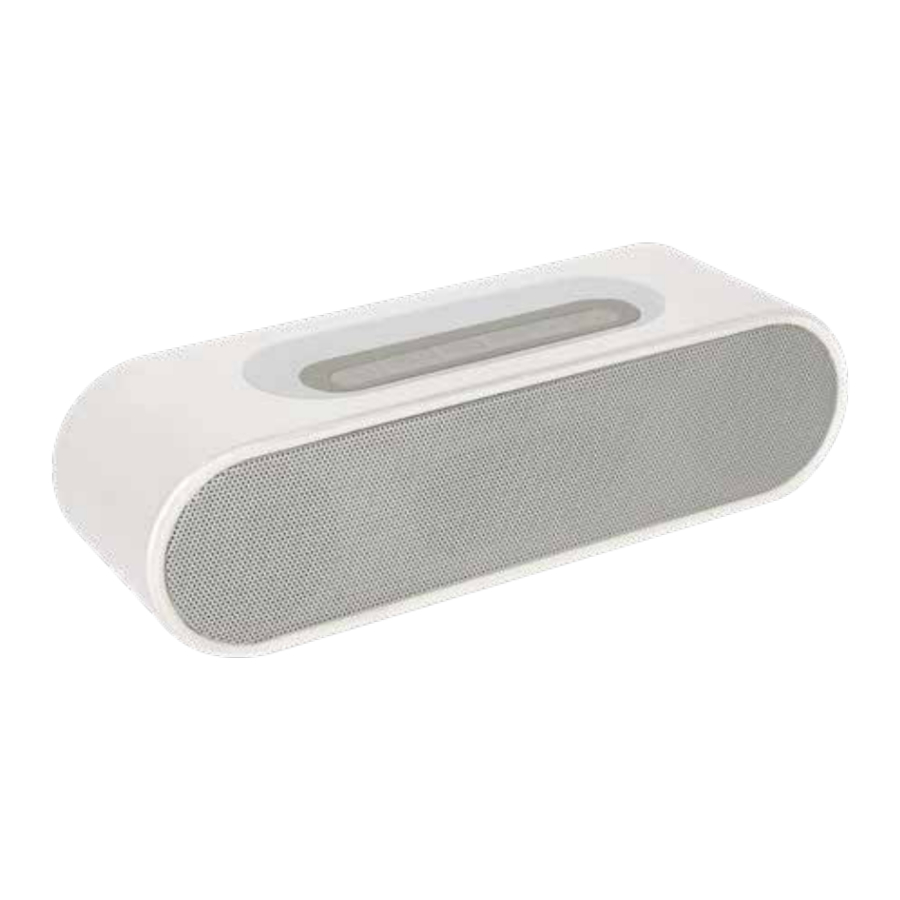

Anko 42-707-141- Bluetooth Speaker Operating Manual

Package Contents

Includes:

• Bluetooth speaker
• Charging cable (micro USB cable)
• Audio cable (3.5mm AUX cable)

Function overview

Safety instructions

1. Device may become warm while charging.
2. Do not press the buttons too hard as it could damage the product.
3. Only use dry cloth to keep product clean from dust.
4. Do not use chemicals on this product.

How to use this device

Function Operation

Pause Press button
Play Press button
Answer Call Press button
End Call Press button
Next Song Long press + button
Previous Song Long press - button
Volume Up Short press + button – when the volume is adjusted to maximum you will hear a voice indication tone
Volume Down Short press - button
Change Mode Press M button
Power ON / OFF Press and hold button

Pairing the Unit with Bluetooth devices

• Once the speaker is turned on, press the ON/OFF button. Pairing mode is indicated by the Blue LED flashing rapidly.
• In the Bluetooth menu on the media device, search for the speaker's Bluetooth name: "KM42707141". If prompted, type the password: "0000" or "1234" to successfully connect to the speaker.
• Once the speaker is successfully paired and connected, the LED will flash slowly and you can now play music through the speaker.

Phone calls

When there is an incoming call, the unit will pause the playback and ring to alert you of the call. To answer the call, press the phone button. To end a call, press the phone button again.

AUX function

Use the 3.5mm cable to connect your media device through the AUX-IN port. When the 3.5mm cable is connected you can now play music through the speaker.

TF card play

Play music from a TF Card by inserting the card into the TF card port.

Battery charging

This Bluetooth speaker is powered by a rechargeable Li-ion battery. Please use the micro USB cable to recharge the battery. Plug the micro USB end of cable into the USB port on the unit and the USB A end into a PC USB port, wall charger or other 5V charging device.

Mode button

When multiple media devices are connected via Bluetooth, AUX or TF you can cycle through them by pressing the mode button.

Specifications

Model No:
42707141

Version:
V5.0 multimedia hi-fi Bluetooth chipset

Support profiles:
A2DP, AVRCP, HFP

Working Distance:
10 Meters

Output:
2 x 5W

Music Time:
>5 Hours

Talk time:
>5 Hours

Standby time:
>100 Hours

Charging voltage:
5V d.c.

Battery capacity:
2200mAh

Charge time:
4-5 Hours

Pairing window time:
5 Minutes

Non-play automatic power save mode:
After 3 minutes the speaker will enter power save mode and then automatically switch off when the low battery alarm sounds.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by KMART AUSTRALIA is under licence.
