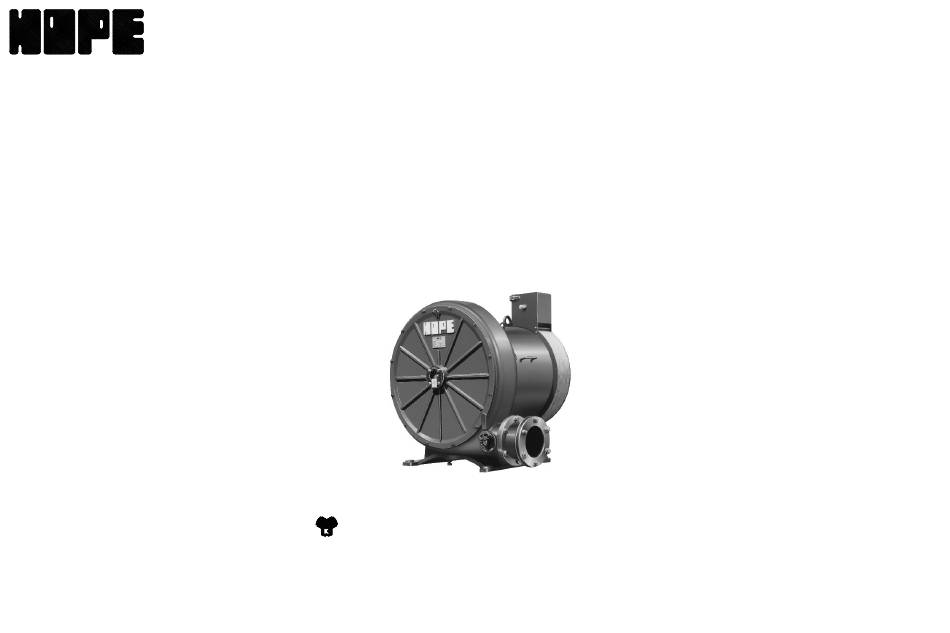

HA17051E
TYPE SSTB
SILENT BLOWER INSTRUCTION MANUAL
IE3 motor (compact low-pressure three-phase squirrel cage induction motor)
IPM motor (permanent magnet synchronous motor)
YOKOI KIKAI KOSAKUSHO CO.,LTD.
2720-1 OHORAGUCHINAKASHIDAMI MORIYAMA-KU NAGOYA 463-0002 JAPAN
TEL +81-52- 736-0773
FAX +81-52- 736-0258

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSTB and is the answer not in the manual?

Questions and answers

Related Manuals for Hope SSTB

Summary of Contents for Hope SSTB

  • Page 1 HA17051E TYPE SSTB SILENT BLOWER INSTRUCTION MANUAL IE3 motor (compact low-pressure three-phase squirrel cage induction motor) IPM motor (permanent magnet synchronous motor) YOKOI KIKAI KOSAKUSHO CO.,LTD. 2720-1 OHORAGUCHINAKASHIDAMI MORIYAMA-KU NAGOYA 463-0002 JAPAN TEL +81-52- 736-0773 FAX +81-52- 736-0258...

  • Page 2: Table Of Contents

    IE3 motor (compact low-pressure three-phase squirrel cage induction motor) IPM motor (permanent magnet synchronous motor) Table of Contents Table of Contents 1．Inspection confirmation at the time of purchase ........1 1．Inspection confirmation at the time of purchase ........2．Outline ..................... 1 2．Outline ....................

  • Page 3: 1．Inspection Confirmation At The Time Of Purchase

    Thank you very much for your purchase of SSTB type silent blower. This instruction manual is for your safety when using IE3 motor (small low-voltage three- phase cage induction motor) or IPM motor (permanent magnet synchronous motor) (hereinafter referred to as IE3 motor or IPM motor) And instructions for handling.

  • Page 4: 3．Precautions When Using

    3．Precautions when using (IE3 motor) 3．Precautions when using (IPM motor) ・Because IE3 suppresses generation loss, rotation speed generally becomes ・IPM motors can not be operated by directly connecting a commercial power faster than IE 1 (up to now motor). When IE1 (standard motor) is replaced supply (50/60 Hz).Drive with the inverter for IPM motor operation.

  • Page 5: 4．Specification

    56.8 60.0/30.0 300A 2940 3525 12SH 18.5 72.4 71.0 74.0/37.0 300A 2940 3525 SSTB-H High pressure type Air quantity Static pressure A Sound level Rated current (A) Revolution per minute (min Weight (kg) Motor /min) (kPa) (dB) Type power Connection...

  • Page 6: 5．Safety Precautions

    5．Safety precautions(IE3 motor, IPM motor) Be sure to thoroughly read this instruction manual and other attached documents before installation work, test operation adjustment, maintenance and inspection, familiarize all about equipment knowledge, safety information, and precautions before using. In this instruction manual, the rank of safety precautions is classified as "danger", "warning", "caution".

  • Page 7: 6．Please Be Sure To Read

    5．Safety precautions(IE3 motor, IPM motor) DANGER Do not drive beyond the capability of the equipment This machine is designed so that the current value does not exceed the rated current value during operation at the rated flow rate. If the discharge flow rate exceeds the rated flow rate due to, for example, no resistance at the outlet or downstream from the outlet, the overcurrent could cause failure or seizure of the motor.

  • Page 8: 7．Transportation Method

    7．Transportation method (IE3 motor, IPM motor) As for lifting, please use the eyebolt (3 places)which is assembled to the main body as shownon the right. Never use the handle of the silent cover. 8．Installation (IE3 motor, IPM motor) ・Secure a space at least 1m around the blower in consideration of disassembly cleaning and repair. ・Please avoid the place described below.

  • Page 9: 10．Wiring Connection Of The Motor

    10．Wiring connection of the Motor(IE3 motor) 10．Wiring connection of the Motor (IPM motor) Please check the specification of a motor with the name plate stuck on the external Please check the specification of a motor with the name plate stuck on the external terminal box.

  • Page 10: 11．Star Delta Starting

    11．Star delta starting(IE3 motor) 1). Notes on star delta start There are three electromagnetic contactor type and two magnetic contactor type in the star delta starting method. 2 Electromagnetic contactor type circuit is simple and economical, but since voltage is constantly applied to the windings of the motor even when the motor is stopped, safety during maintenance and inspection, dust and humidity are high Because it is necessary to pay attention to insulation degradation between the windings of each motor phase winding and winding to ground at the place, 3 electromagnetic contact type is recommended.

  • Page 11: 12．Starting Current And Starting Time

    203.0 169.1 3.60 3.80 14.1 16.0 12SH 18.5 505.4 492.5 251.6 213.2 3.31 3.34 12.5 13.5 SSTB-H High pressure type Starting current Start time Motor power Type Direct Star delta Direct Star delta (kW) 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz...

  • Page 12: 13．About Electromagnetic Contactor, Switch, Thermal Relay

    13．About electromagnetic contactor, switch, thermal relay(IE3 motor) ※Compared with conventional motors, the IE3 motor increases the starting current by 15 to 30%.The startup time also tends to become longer. 1). Main circuit voltage 200 to 220 V direct startup (by Fuji Electric) 2).

  • Page 13: 14．Before Getting Into Operation

    14．Before getting into operation(IE3 motor) ＜Check of direction of rotation＞ 1）Rotate the impeller slowly by turning ON/OFF the started switch instantaneously. 2）Looking through the rotation instruction cover, check whether the rotation confirmation mark (yellow) on the spindle shows the same direction as the direction of the arrow.

  • Page 14: 16．Roll Filter

    16．Roll filter(IE3 motor, IPM motor) ＜Detailed view of roll filter ＞ Please check the filter periodically, and before it starts decreased pressure by the clog of dust etc., Rolling up a roll filter. The roll filter is supposed to be replaced by rolling up once every week or so, but this replacement frequency may be adjusted according to the usage and the environment.

  • Page 15: 17．Disassembly Method

    17．Disassembly method(IE3 motor, IPM motor) 18．Precautions in assembling(IE3 motor, IPM motor) <Blower body inside side> 1）Never scratch or bruise the shafts and meshing parts. 1）Pass a wire or the like through the eye bolts② attached to the cover⑫, 2）Apply high quality machine oil to the shaft, etc., after cleaning. hoist the blower body①, and fix the blower body①...
  • Page 16 <Roll filter type> <Wire mesh type> Blower body Rod bolt Blower body Silent cover Eye bolt Silent pad Eye bolt Rod bolt Base Filter support Base Silent pad Motor support Cover support Motor support Filter support Motor Roll filter Motor Cover support Positioning collar Punching metal...
