LVS MYERS LED-BP-COLD-9W Instruction Manual

Emergency lighting and power equipment
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

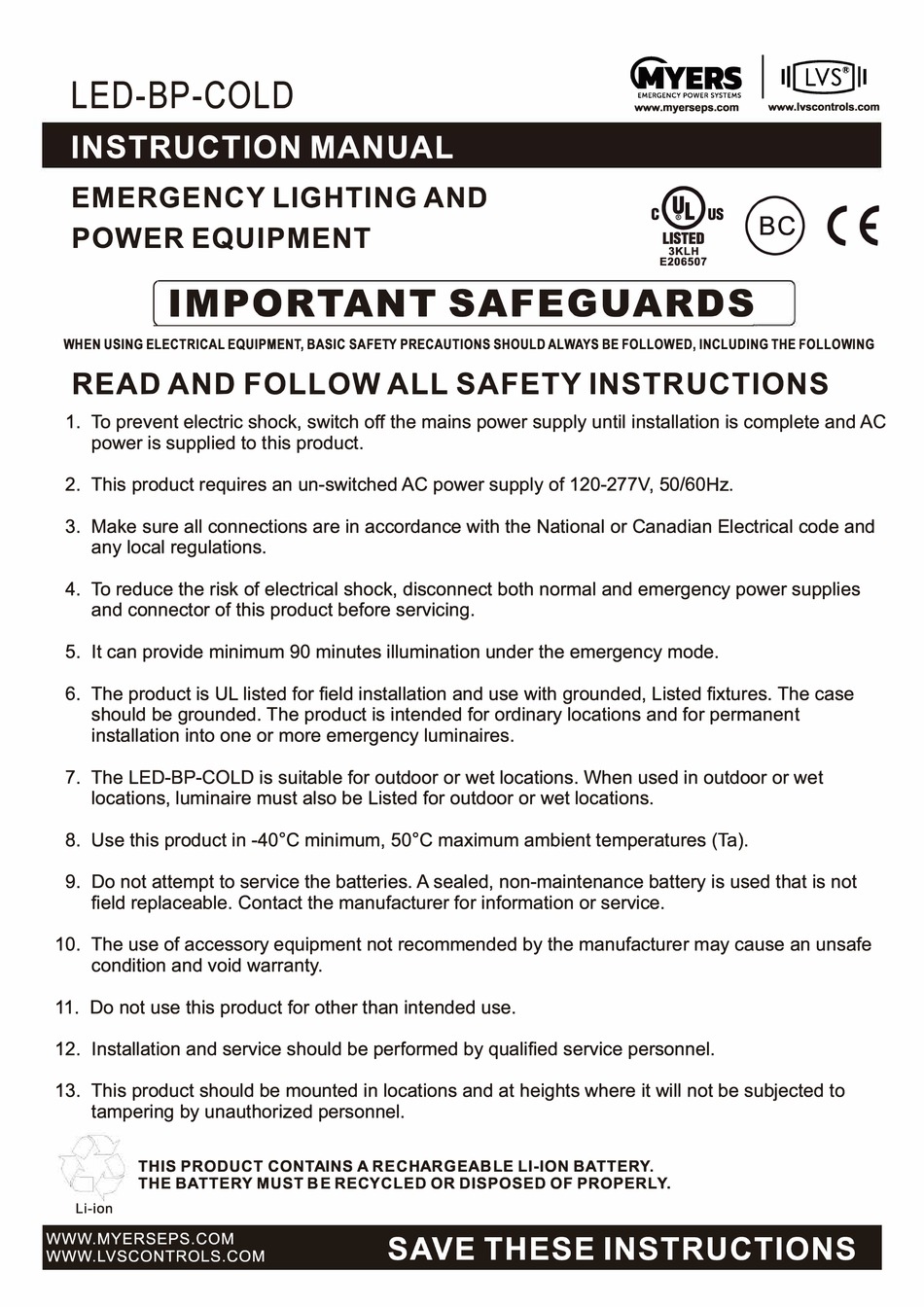

LED-BP-COLD
INSTRUCTION MANUAL
EMERGENCY LIGHTING AND
POWER EQUIPMENT
[ IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To prevent electric shock, switch off the mains power supply until installation is complete and AC
power is supplied to this product.
2. This product requires an un-switched AC power supply of 120-277V, 50/60Hz.
3. Make sure all connections are in accordance with the National or Canadian Electrical code and
any local regulations.
4. To reduce the risk of electrical shock, disconnect both normal and emergency power supplies
and connector of this product before servicing.
5. It can provide minimum 90 minutes illumination under the emergency mode.
6. The product is UL listed for field installation and use with grounded, Listed fixtures. The case
should be grounded. The product is intended for ordinary locations and for permanent
installation into one or more emergency luminaires.
7. The LED-BP-COLD is suitable for outdoor or wet locations. When used in outdoor or wet
locations, luminaire must also be Listed for outdoor or wet locations.
8. Use this product in -40
9. Do not attempt to service the batteries. A sealed, non-maintenance battery is used that is not
field replaceable. Contact the manufacturer for information or service.
10. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition and void warranty.
11. Do not use this product for other than intended use.
12. Installation and service should be performed by qualified service personnel.
13. This product should be mounted in locations and at heights where it will not be subjected to
tampering by unauthorized personnel.
THIS PRODUCT CONTAINS A RECHARGEABLE LI-ION BATTERY.
THE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.
Li-ion
°
°
C minimum, 50
C maximum ambient temperatures (Ta).
www.lvscontrols.com
www.myerseps.com
§c
c@us
LISTED
3KLH
E206507
(E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYERS LED-BP-COLD-9W and is the answer not in the manual?

Questions and answers

Related Manuals for LVS MYERS LED-BP-COLD-9W

Summary of Contents for LVS MYERS LED-BP-COLD-9W

  • Page 1 LED-BP-COLD www.lvscontrols.com www.myerseps.com INSTRUCTION MANUAL §c EMERGENCY LIGHTING AND c@us POWER EQUIPMENT LISTED 3KLH E206507 [ IMPORTANT SAFEGUARDS WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING READ AND FOLLOW ALL SAFETY INSTRUCTIONS 1. To prevent electric shock, switch off the mains power supply until installation is complete and AC power is supplied to this product.

  • Page 2: Installation

    INSTALLATION £ CAUTION: MAKE CERTAIN THE AC POWER IS OFF UNTIL THE INSTALLATION IS COMPLETE. 1. SPECIFICATION OF LED-BP-COLD SERIES MODEL See the LED-BP-COLD MODEL SPECIFICATION below for the model selected. LED-BP-COLD MODEL SPECIFICATION MODEL VOLTAGE OUTPUT EMERGENCY OUTPUT (CONSTANT) LED-BP-COLD-9W 10-300 9 WATTS...

  • Page 3: Led Driver

    WIRING 1. The LED-BP-COLD requires an unswitched AC power supply of 120-277 volt, 50/60Hz. 2. The LED-BP-COLD and AC driver must be on the same branch circuit. 3. Refer the wiring diagrams below for wiring. Consult the factory for other wiring diagram. FOR DC LED LOAD ■...
  • Page 4 DIMENSION Wiring configurations of LED-BP-COLD series are as below: LED-BP-COLD Single 3/8" flexible conduit Built-in battery LED-BP-COLD 8 _________ L _______ _, 1000 [39. 37] L-22 [-0.87] 600 [23. 62] 21 [0. 83] <Xl Dimension unit: mm [inch] M (Mounting) Item No.

  • Page 5: Operation/ Testing/ Maintenance

    OPERATION/ TESTING/ MAINTENANCE OPERATION When AC power is applied, the LED test switch is illuminated, indicating that the batteries are being charged. When AC power fails, the LED-BP-COLD automatically switches to emergency power, operating the lighting load at rated emergency power. During power failure, the LED test switch will be off. When the AC power is restored, the emergency LED-BP-COLD switches the system back to normal mode of operation and resumes battery charging.
