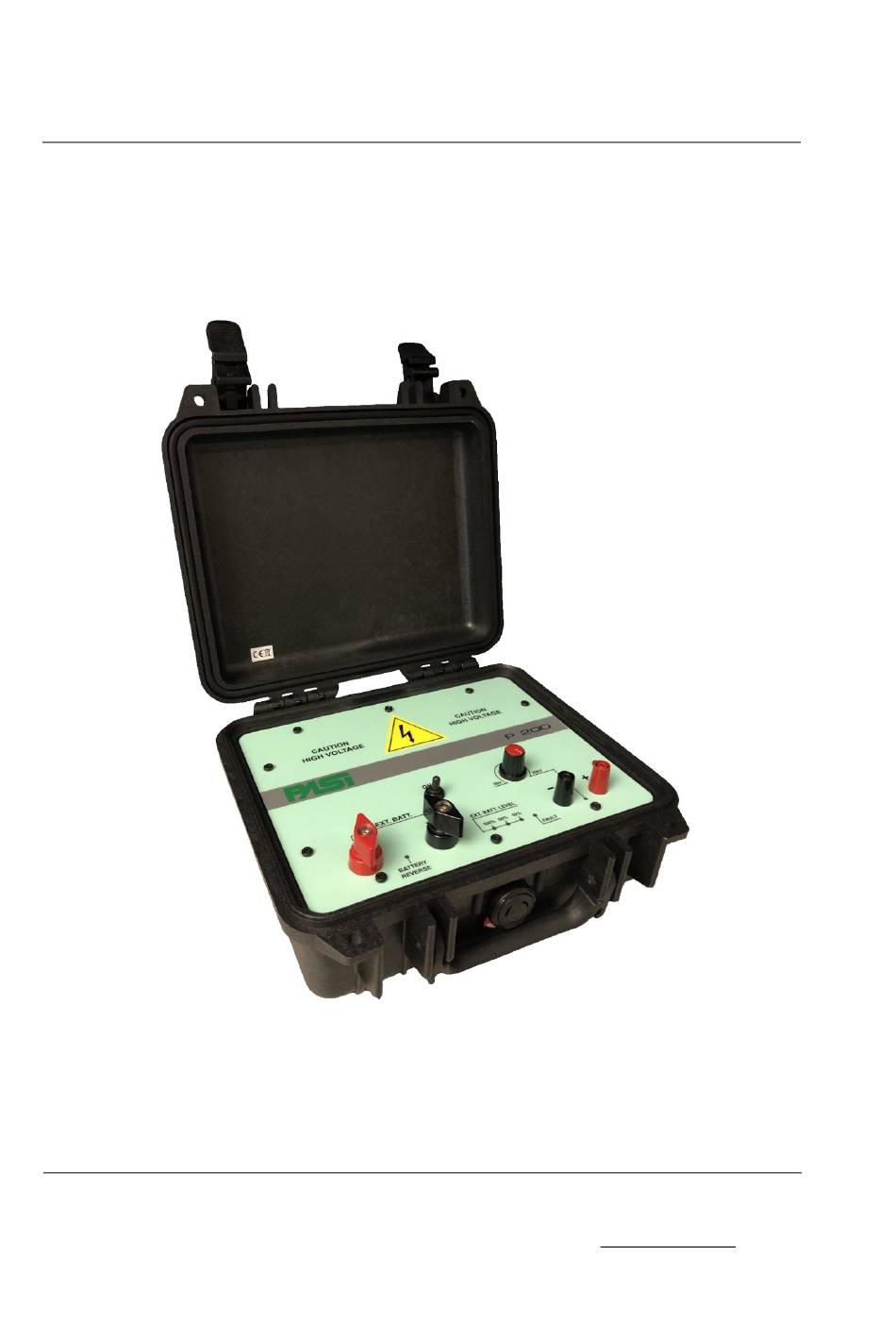

- Page 1 PASI Instruction Manual P-200 ENERGIZER P.A.S.I srl – via Galliari 5/E – 10125 TORINO – Italy Tel. +39 011 650.70.33 – Fax +39 011 658.646 - E-mail sales@pasisrl.it www.pasisrl.it...
-
Page 2: Index
Index P-200 ENERGIZER... -
Page 3: Table Of Contents
Index Index ..........................4 Important Notice ....................... 2 Introduction ....................... 4 Contents ......................... 4 How to Use ........................ 5 Equipment ........................5 Control Panel ......................... 5 P200 Technical Specifications .................. 7 Serialization ....................... 8 Suggestions ........................9... -
Page 5: Important Notice
1. Important Notice All right to this manual are owned solely by P.A.S.I. srl. All rights reserved. The copying of this manual (without the written permission from the owner) by printing, copying, recording or by any other means, or the full or partial translation of the manual to any other language, including all programming languages, using any electrical, mechanical, magnetic, optical, manual or other methods or device is forbidden. - Page 6 The perfect and safe functioning of the device can be guaranteed only if the transport, storage, treatment and handling of the device is appropriate; To avoid damage, use only original accessories or those approved by PASI srl; The box is waterproof only if closed. When storing the device, please ensure that water cannot enter the device in any condition.
-
Page 7: Introduction
2. Introduction The P-200 energizer is a device produced and assembled by P.A.S.I. srl, leading company in Italy in the production of instruments for geology and geophysics. This guide lists the technical specifications and how to use the device. Please follow these guidelines carefully. -
Page 8: How To Use
Battery level indicator and error indicator Output bushes/sockets E 1: CONTROL PANEL IGUR Setting the ON / OFF switch (1) to ON allows the energizer to be put into operation mode, while positioning it to OFF switches the energizer off. P-200 ENERGIZER... - Page 9 The output voltage is adjusted using the knob (2): turn it to go from a minimum of 20V to a maximum of 200V (the position of the index is proportional to the output voltage). The operator must connect a charged battery to the two input sockets (3) using the cables supplied.
-
Page 10: P200 Technical Specifications
Input / output isolation: on the 2kV rms electronic board for 1 minute Connection of several modules in output (serialization): in series, always with adjustment independent Connection of several input modules: in parallel taking care of uniform and equal distribution of 12 V (use only the supplied cable) P-200 ENERGIZER... -
Page 11: Serialization
5. Serialization In order to increase the available voltage, it is possible to connect several energizers in series up to a maximum of 1000V-1A. The possible configurations are shown below. • 2 x P200 = min 40V – max 400V 1000 mA (1A) •... -
Page 12: Suggestions
• If you are serializing, it is a good idea to adjust the voltage so that it is the same voltage on each P200; • For the connections use only cables in good condition or even better the original ones supplied with the appliance; • the voltages produced by the energizer are potentially lethal! P-200 ENERGIZER...
