Summary of Contents for HYDRACOOLING L080 Series

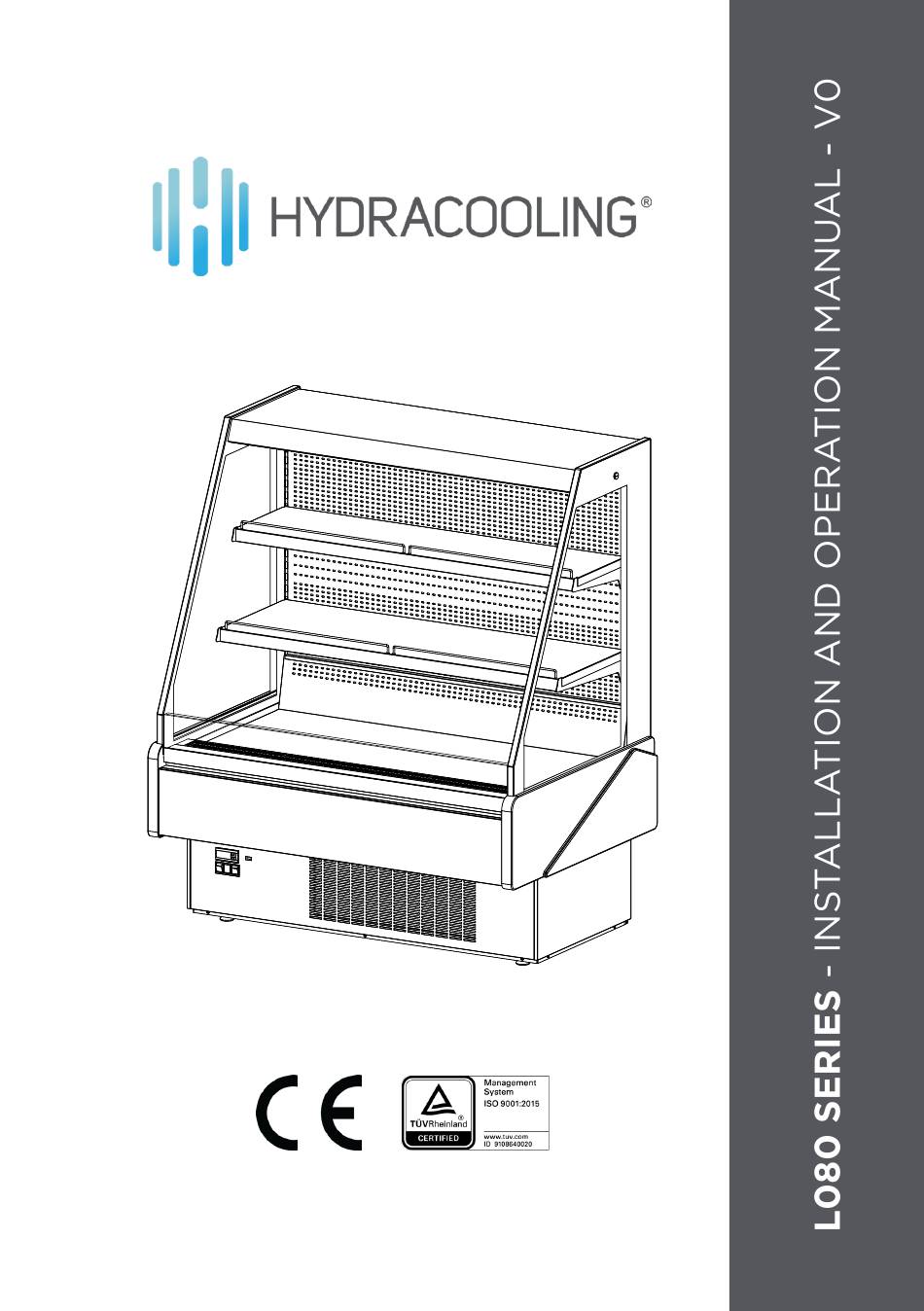

  • Page 1 EN - Translation from the original manual...
  • Page 2 HYDRACOOLING LDA Parque Industrial de Guimarães 1ª Fase, Pavilhão G15 4805-661 Guimarães, Portugal Telephone: (351) 253 470 340 Email: mail@hydracooling.pt Website: www.hydracooling.pt...

  • Page 3: Symbols

    Symbols For your own protection you must use gloves and safety shoes. Equipment performance can be compromised. Damage may include persons. Flammable.

  • Page 4: General Warnings

    If the environment exceed class 3 conditions, a deminuiting performance should be expected. Always check the marking plate. At the end of production HYDRACOOLING products are carefully inspected. No damaged units are sent out. The appliance must be perfectly leveled.
  • Page 5 All complaints must mention model and serial number. To fully disconnect the appliance, power cable must be pulled out. This manual can be found at www.hydracooling.pt. General warnings Refrigeration system charged with flammable refrigerant. Make sure that personnal are aware that the appliance con- tains a flammable refrigerant.

  • Page 6: Table Of Contents

    Symbols General warnings 1. Guarantee, standards and regulations 1.1. Guarantee 1.2. EU declaration 2. Technical data 2.1. Model description 3. Installation 3.1. Unpacking 3.2. Packaging contents 3.3. Damage verification 3.4. Location 3.5. Joining 3.6. Electrical connections 3.7. Remote systems 4. Operation 4.1.
  • Page 7 This page has been left blank intentionally.

  • Page 8: Guarantee, Standards And Regulations

    1. Guarantee, standards and regulations 1.1. Guarantee Guarantee doesn’t cover defects originated during unpacking. Guarantee doesn’t cover malfunction due to poor installation or incorrect operation of the appliance. Guarantee doesn’t cover acts of negligence. Guarantee doesn’t cover inproper electrical connections. Guarantee doesn’t cover models with defaced marking plate.

  • Page 9: Eu Declaration

    +351 253 470 349 Declares that the DoC is issued under our responsibility for the following product: Product/model L080 Series Type Vertical open and closed commercial refrigeration appliance The object of the declaration described above is in accordance with relevant...

  • Page 10: Technical Data

    2.1. Model description The models L080SS/L080AT/W080PA/W080PE part of L080 series are refrigerated display cabinets, IVC2/IVC4 tipology. The L080 series ventilated cooling system provides balance and maintenance of temperature for the operating range of 2°C and 4°C, ideal for any type of packaged food items and beverages. Designed for holding and maintaining temperature only, this appliance will ideally operate under Class 3 (25°C/60%RH) condi-...
  • Page 11 L080-SS...
  • Page 12 L080-AT...
  • Page 13 L080-PA...
  • Page 14 L080-PE...
  • Page 15 L080SS Model Spec Voltage (V)/Frequency (Hz) 230/50 230/50 230/50 Dimensions (LxHxD)(mm) Service dimens (LxHxD)(mm) TDA (m Net Volume (l) Refrigerated shelf area (m Load limit (kg/m Operating temperature (°C) Cooling capacity (W)(-10°C) Refrigerant R290 R290 R290 Amount (g) P (W) 2393 2393 2393...
  • Page 16 L080PA Model Spec Voltage (V)/Frequency (Hz) 230/50 230/50 230/50 Dimensions (LxHxD)(mm) Service dimens (LxHxD)(mm) TDA (m Net Volume (l) Refrigerated shelf area (m Load limit (kg/m Operating temperature (°C) Cooling capacity (W)(-10°C) Refrigerant R290 R290 R290 Amount (g) P (W) 2393 2393 2393...
  • Page 17 Marking plate...
  • Page 18 FGas plate...

  • Page 19: Installation

    3. Installation 3.1. Unpacking...

  • Page 20: Packaging Contents

    3.2. Packaging contents The package received with your L080 series model includes the items arranged in the table below. Item Modelo Installation and Operating Manual L080 SS/AT/PE EU Declaration L080 SS/AT/PE Electrical diagram L080 SS/AT/PE Night cover tool setting L080 SS/AT...

  • Page 21: Location

    3.4. Location Use a pallet truck to handle the appliance. Do not drag it! All operations necessary for the installation of the appliance must be performed by a qualified technician. This appliance is intended for indoor use only. This appliance must not be exposed to direct or indirect sunlight. Make sure that the temperature and humidity conditions do not exceed the 25°C and 60% relative humidity.

  • Page 22: Joining

    3.5. Joining Shelves assembly During any installation always use protective equipment. Operations to be performed are dangerous.
  • Page 23 Joining During any installation always use protective equipment. Operations to be performed are dangerous.
  • Page 24 DIN933 M6x65 DIN933 M6x20 DIN9021 M6 ANL00601002 A100 04 DIN934 M6...

  • Page 31: Electrical Connections

    The power grid must not have voltage fluctuations greater than 6% (±6%). To unplug the appliance completely, unplug it from the wall outlet. Electrical diagram of the L080 series model must be consulted in Annex A. 3.7. Remote systems To connect remote appliances wiring and refrigeration piping, operations must be car- ried out.
  • Page 32 Label ATENÇÃO EQUIPAMENTO SOB PRESSÃO DE AZOTO ATTENTION EQUIPEMENT Label 1 SOUS PRESSION D'AZOTE CAUTION EQUIPMENT UNDER NITROGEN PRESSURE During any installation always use protective equipment. Operations to be performed are dangerous. Use proper copper wiring. All electrical connections must be done from the electrical board.

  • Page 33: Operation

    4. Operation 4.1. Safety marks Label 2 Label 3...

  • Page 34: Safety Marks For Appliances With Flammable Refrigerant

    4.1.1. Safety marks for appliances with flammable refrigerant Label 4 Label 7 Label 6 Label 5 Label 4 Label 4...
  • Page 35 Label Label Label Label Warning! Do not damage the refrigerant circuit Label Label • Assegurar condições de segurança em torno do aparelho • Assure safety conditions around the appliance • Assurer des conditions de sécurité autour de l'appareil • Afastar pessoas •...

  • Page 36: Control Panel And Features

    4.2. Control panel and features Air intake Air discharge Night-cover...
  • Page 37 Led Lighting Electrical shutter...
  • Page 38 Electronic controller Light switch Power Condensing unit signal switch Control panel...

  • Page 39: Loading

    4.3. Loading Before loading the appliance leave it running for two hours. Loading must be carried out by a qualified and authorized technician. The appliance is intended for the preservation of packaged products only. The W080 series appliance is designed for temperature maintenance only. The goods must be at the appropriate temperature for display.

  • Page 40: Temperature Regulation

    4.4. Temperature regulation The temperature regulation is carried out at the factory in a class 3 environment (25°C/60%RH), so this is the ideal operating condition. The temperature displayed does not match the actual temperature in the product. The parameterization of the appliance must be adjusted due to the product to be placed in your appliance and store environment.
  • Page 41 Carel IR33 TECHNICAL SPECIFICATIONS Model Voltage Power Power supply IRxxxxExxxx 230 V~, 50/60 Hz 3 VA, 25 mA~max. IRxxxxAxxxx 115V~, 50/60 Hz 3 VA, 50 mA~max. IRxxxxHxxxx 115 to 230 V~, 50/60 Hz 6 VA, 50 mA~max. IRxxxxLxxxx 12 to 24V~, 50/60 Hz, 12 to 30 Vdc 3 VA, 300 mA~/mAdc max.
  • Page 42 Relay outputs depending on the model EN 60730-1 UL 873 250 V~ 250 V~ model relay operating operating cycles cycles IRxxxx(E,A) R2 (*) 5(1)A 100000 5 A resistive 1FLA 300000 (P,Q,S,U,V,X,Y,Z)xxx 6 LRA C 300 IRxxxx(E,A) R3 (*) 5(1)A 100000 5 A resistive 1FLA 300000 (N,R,C,B,A,M,L,T)xxx...
  • Page 43 Signals on the display Signals on the display The blinking status indicates a request for activatuin that cannot be implemented until the end of the corresponding delay times. Icon Icon Function Function blink blink Startup Startup COMPRESS. COMPRESS. compressor ON comp.
  • Page 44 Main parameters Main parameters Symbol Symbol Code Code Parameter Parameter Models Models Type Type Def. Def. Probe display response MSYF Select ºC or ºF MSYF flag 0: ºC 1: ºF Configuration of probe 2 (S2) 0: Probe absent 1: Product probe (display only) 2: Defrost probe 3: Condenser probe 4: Antifreeze probe...

  • Page 45: Cleaning And Maintenance

    5. Cleaning and maintenance 5.1. Exterior cleaning During cleaning operations always use protective equipment. All operations must be carried out with the appliance switched off. Do not use cleaning equipment with jets under pressure.

  • Page 46: Interior Cleaning

    5.2. Interior cleaning During cleaning operations always use protective equipment. All operations must be carried out with the appliance switched off. Do not use cleaning equipment with jets under pressure.

  • Page 47: Lights Replacement

    5.3. Lights replacement During cleaning operations always use protective equipment. All operations must be carried out with the appliance switched off. All operations must be carried out by a qualified and authorized technician.

  • Page 48: Panels And Protection Grille Removal

    5.4. Panels and grille removal During cleaning operations always use protective equipment. All operations must be carried out with the appliance switched off. All operations must be carried out by a qualified and authorized technician.

  • Page 49: Condenser Cleaning

    5.5. Condenser cleaning During cleaning operations always use protective equipment. All operations must be carried out with the appliance fully disconnected. All operations must be carried out by a qualified and authorized technician. Condenser cleaning should be performed monthly.

  • Page 50: Evaporator Cleaning

    5.6. Evaporator cleaning During cleaning operations always use protective equipment. All operations must be carried out with the appliance fully disconnected. All operations must be carried out by a qualified and authorized technician. Evaporator cleaning should be performed monthly.

  • Page 52: Sewage

    5.7. Sewage During cleaning operations always use protective equipment. All operations must be carried out with the appliance switched off. All operations must be carried out by a qualified and authorized technician.

  • Page 53: Night-Cover Setting

    5.9. Night-cover setting For your own protection you must use gloves and safety shoes. All operations must be carried out by a qualified and authorized technician.

  • Page 54: Electrical Shutter Motor

    5.10. Electrical shutter motor All operations must be carried out by a qualified and authorized technician. More info at www.somfy.com In case of powerdown with shutter down, open it mannually.

  • Page 55: Shelf Position

    5.11. Shelf position For your own protection you must use gloves and safety shoes. All operations must be carried out by a qualified and authorized technician.

  • Page 56: Evap Pan Cleanning

    5.13. Evap pan cleaning During cleaning operations always use protective equipment. All operations must be carried out with the appliance fully disconnected. All operations must be carried out by a qualified and authorized technician. Pan might be hot, and result in injury. Use liquids vacuum, mild detergent and soft brush for dirt removal.

  • Page 57: Troubleshooting

    6. Troubleshooting All operations must be carried out by a qualified and authorized technician. Doors not closing: Check for leveled floor; Check for obstruction; Remove doors and check the bearings. Lights not working: - Check light switch position; - Check light connections. Warm case temperature: - Check for air return grille obstruction;...
  • Page 58 Equipment runs constantly: - Condenser dirty; - Condenser fan malfunction; - Temperature and relative humidity too high. Starting relay burns out: - Low voltage; - High voltage; - Compressor short cycles; - Incorrect running capacitor; - Incorrect relay. Head pressure too high: - Unit overcharged;...

  • Page 59: Service

    7. Service This operation must be performed by a qualified technician. Serial number Service by Type of action Date and model...

  • Page 60: End Of Life

    8. End of life HYDRACOOLING products are designed and manufactured in ac- cordance with Directive 2012/19/EU on electrical and electronic waste (WEEE). Concerning preservation, protection and improve- ment of environmental quality, the products HYDRACOOLING must be selectively collected and not confused with household waste.

  • Page 61: Notes

    9. Notes...

  • Page 62: Annexes

    Annexes Annexes A Electrical Diagram L080-SS/AT/PA/PE-100/130/150...
