Operating Manual
Float-Controlled Condensate Trap, PN 40 / Class 300
1
Safety instructions
1.1
Proper use
Any improper use, intervention in the design and deviation from the design data automatically lead to termination of the
warranty. The fl oat-controlled condensate trap is designed for the discharge of condensate from steam, compressed air and
pressure gas systems. Any other usage is not permitted. The manufacturer is not liable for damage resulting from any other
usage. The user or operator bears the risk in this case. This also applies analogously to incorrect assembly, start-up, use and
maintenance.
1.2
Warnings and symbols
■ Personal risk due to escaping operating medium because of pressure, temperature and weight. Failure to comply with
these warnings results in the risk of accidents.
■ Follow the instructions in this operating manual.
■ The operator must ensure that this operating manual and, if necessary, other relevant documents are available on site.
■ Only trained or instructed personnel may be assigned to handling this equipment.
■ Any mode of operation that may impair safety must be avoided.
2
General description and usage
2.1
Design of the condensate trap
Housing cover
1
2
Housing gasket
Housing
3
4
Control screw
5
Gasket
Screw plug
6
7
Gasket
RIFOX - Hans Richter GmbH Spezialarmaturen
Bertha-von-Suttner-Str. 9
Model: 1216
Model: 1216-N
Model: 1217
Model: 1217-N

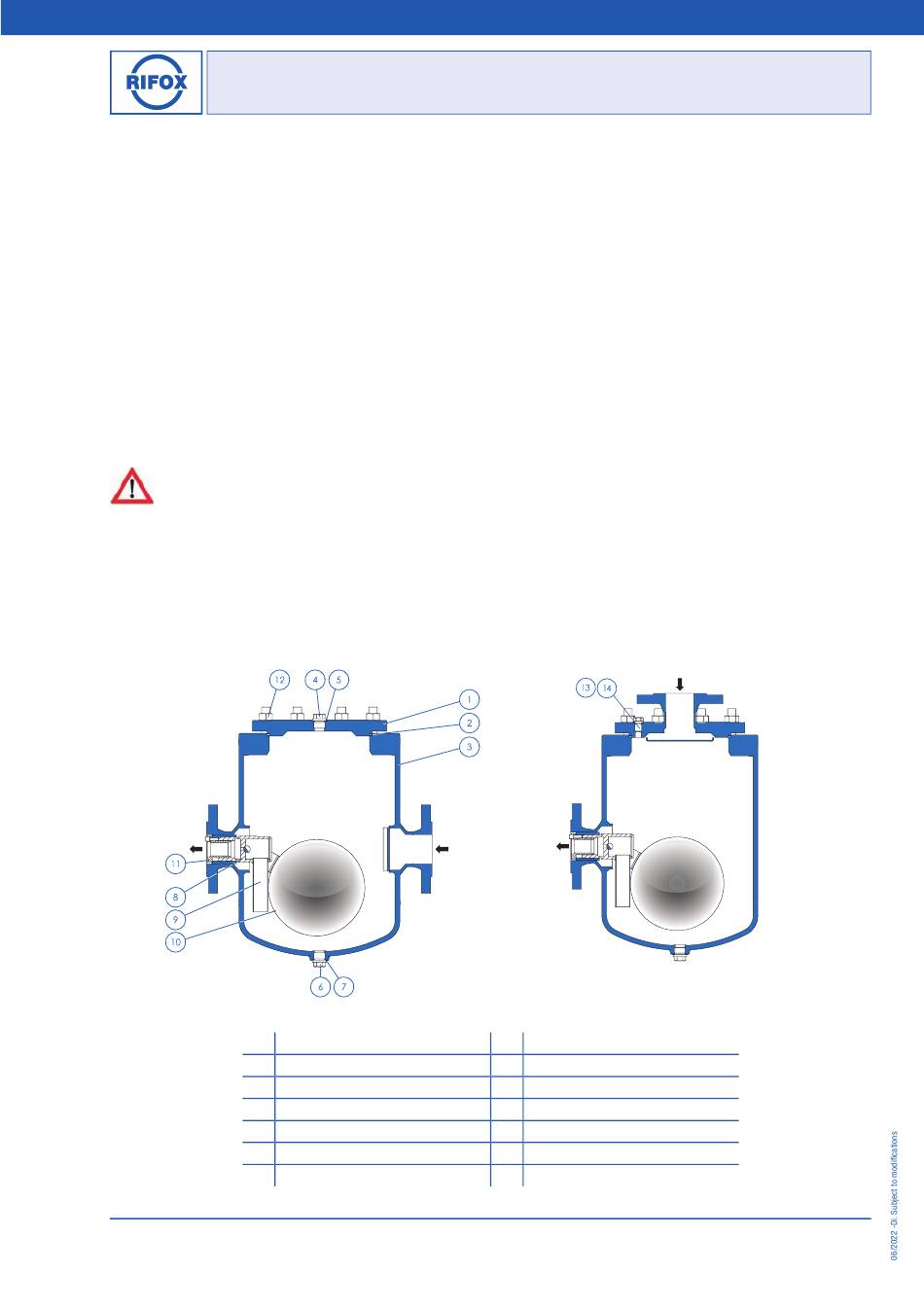

Picture 1: Model WO-1216
Model WO-1216-N
Fon: +49 (0) 421 499 75 - 0
D-28207 Bremen Fax: +49 (0) 421 499 75 - 40
Picture 2: Model EF-1217
Model EF-1217-N
Float control assembly
8
9
Supporting body assembly
Float
10
11
Holding screw for fl oat control assembly
12
Housing screws
Control screw
13
14
Gasket
Internet: www.rifox.de
Page 1 of 6
Email: contact@rifox.de
Advertisement
Table of Contents
Summary of Contents for Rifox 1216
- Page 1 Screw plug Control screw Gasket Gasket Page 1 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40 Email: contact@rifox.de...
- Page 2 ANSI 16.5: max. operating pressure (bar g) max. operating temperature (°C) -29/38 * only with screw material A4-70/ 1,4571/ 1.4104 For Model WO-1216-N and EF-1217-N acc. to DIN EN 1092-1: 1.4571: max. operating pressure (bar g) max. operating temperature (°C) -60/100 1.4541:...
- Page 3 ■ In the case of steam applications, automatic venting must be provided (vent jet). Gastight ander-level float control (only for gas applications) ■ For gas applications, a gastight ander-level float control is nearly exclusively used. Consult with Rifox, if necessary. Assembly The condensate trap has to be screwed into a pipeline between flanges.
- Page 4 ■ Check the rotary valve (v) for wear along the sealing edge. If wear is detected, the support body (b) together with the rotary valve (v) must be replaced. The thorough leakage test must be carried out by RIFOX. ■ During assembly ensure that the notch in the rotary valve (v) points to the punch mark on the support body (b) and the cotter pin (p) is inserted and secured again carefully.
- Page 5 280 ( no Gasket) Housing screw Control screw Page 5 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str. 9 D-28207 Bremen Fax: +49 (0) 421 499 75 - 40...
- Page 6 A detailed declaration of conformity assessment according to PED is available as separate document. Please request if necessary, if not attached. Page 6 of 6 RIFOX - Hans Richter GmbH Spezialarmaturen Fon: +49 (0) 421 499 75 - 0 Internet: www.rifox.de Bertha-von-Suttner-Str.
