Summary of Contents for Jmaz Lighting VISION FRESNEL 50CW

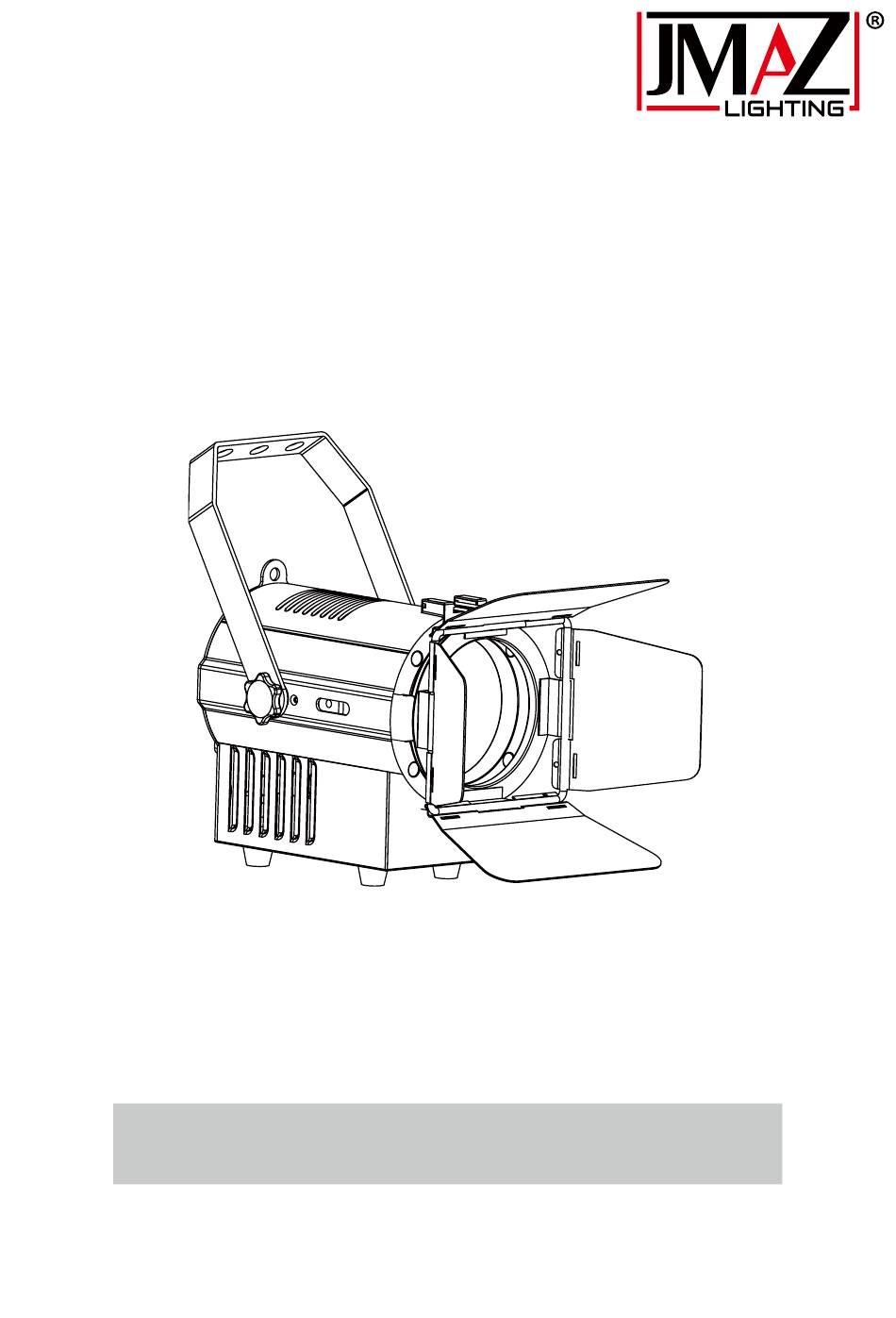

- Page 1 VISION FRESNEL 50CW USER MANUAL ● Be sure to read the USER MANUAL carefully before using this product ● Be sure to keep the USER MANUAL properly for future needs ● Use this product correctly when you can fully understand the user manual...
-
Page 2: Table Of Contents
Table of contents Caution! ........................3 Introduction ......................3 Safety instructions ....................3 Overview......................... 4 Installation ......................4 Read ‘Safety information’ before installing the fixture................Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ......................... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen VISION FRESNEL 50CW. You will see you acquired a powerful and versa- tile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation. -
Page 4: Overview
VISION FRESNEL 50CW Product Datasheet or before cleaning it. Keep away children and amateurs from the device! There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers. Overview Installation Read ‘Safety information’... -
Page 5: Fastening The Fixture To A Flat Surface
VISION FRESNEL 50CW Product Datasheet Fastening the fixture to a flat surface The fixture can be fastened to a hard, fixed, flat surface that is oriented at any angle. Ensure that the sur- face and all fasteners used can support at least 10 times the weight of all fixtures and equipment to be installed on it. -
Page 6: Power Connection
Earth(Ground) Operation The VISION FRESNEL 50CW can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. -
Page 7: Addressing
In the case of the VISION FRESNEL 50CW, which is 1/2/3/5 channels fixture. If you set, for example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control. -
Page 8: Zoom
VISION FRESNEL 50CW Product Datasheet Zoom This function allows you to adjust the beam width of the fixture. Step 1: Loosen the zoom buttons on the side of the device. Step 2: Adjust the zoom by sliding the back lenshousing forward or backward. -
Page 9: Dmx Protocol
VISION FRESNEL 50CW Product Datasheet DMX Protocol 1 Channel Mode Function Function Control Dimmer 000-255: 0-100% dimmer 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: Strobe with speed increasing 3 Channels Mode Function Function Control Dimmer... -
Page 10: Troubleshooting
VISION FRESNEL 50CW Product Datasheet To replace a fuse: 1. Disconnect the fixture from power and allow it to cool for at least 10 minutes. 2. Unscrew the cap of the fuseholder and remove the fuse. Replace with a fuse of the same size and rating only. - Page 11 VISION FRESNEL 50CW Product Datasheet jmazlighting.com Ver 1.0...
