AquaJoe AJ-SPXN - 2-in-1 Foam Cannon + Sprayer Manual

Know Your Device

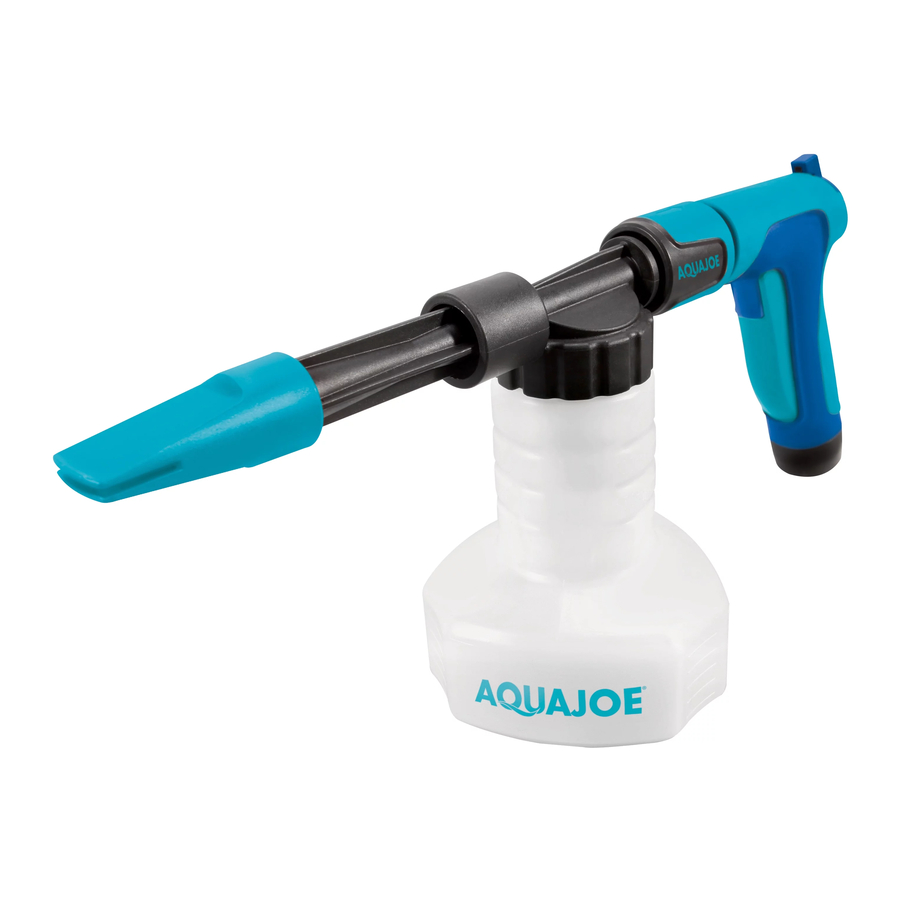

Read the owner's manual and safety rules carefully before using your car wash sprayer + foam cannon. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

1. Adjustable spray nozzle
2. Foam cannon
3. Detergent bottle
4. Garden hose connection
5. Trigger
6. Trigger lock
7. Quick-Connect collar
8. Trigger gun
9. Water flow throttle

Technical Data

* Standard concentrated detergent to water

To reduce the risk of injury, the user must read and understand this operator's manual before using this product. Failure to follow all warnings and precautions may result in personal injury, or property damage.

General Safety

1. Keep clear of the nozzle. Keep bystanders and children a safe distance away from the work area. Never direct discharge stream at people, pets, or electrical devices.
2. Do not abuse the water hose. Keep hose away from sharp objects. Damaged or entangled hoses increase the risk of personal injury. Examine hoses regularly and replace if damaged. Do not attempt to mend a damaged hose.
3. Store properly. After using, store the sprayer and foam cannon in a dry area. Avoid direct sunlight.

Connection

1. To connect the nozzle to the trigger gun, snap it onto the Quick-Connect collar until it clicks into place (Fig. 1).

2. Thread the garden hose (male end) into the garden hose connection at the end of the trigger gun (Fig. 2). Attach the other end of garden hose to water supply.


Operation

Starting and Stopping

1. With the water supply turned on and the nozzle pointed to the car, squeeze the trigger. To keep the water flowing without squeezing, engage the trigger lock (Fig. 3).

2. To stop, disengage the trigger lock and release the trigger.

Adjusting Water Flow and Spray Angle

1. During operation, use the water flow throttle to adjust the water flow (Fig. 4).

   NOTE: The water flow rate can be adjusted from as low as 2.8 GPM to as high as 3.3 GPM. Generally, with a higher water flow rate there will be more water released from the trigger gun. If the foam cannon is used, the detergent in the bottle will be used up sooner with a higher water flow setting.
2. When using the spray nozzle tip, the spray can be adjusted from 0° pencil spray to 65° fan spray as needed by turning the nozzle tip (Fig. 5).


Working with the Unit

For additional cleaning power, the unit comes equipped with a foam cannon spray bottle.

1. Remove the foam cannon cap with detergent suction tube from the detergent bottle. Fill the detergent bottle with proper detergent mixed with water as instructed on the detergent label/manual (Fig. 6).

2. With the trigger released and the water supply shut off, disconnect the spray nozzle by pulling back the Quick-Connect collar (Fig. 7).

   NOTE: Do not make change to nozzles when the sprayer is on.
3. Snap the foam cannon onto the Quick-Connect collar until it clicks into place (Fig. 8).

4. Turn on the water supply, and squeeze the trigger. The detergent in the bottle will be sprayed on the car.

General Car Washing Process

1. Using the adjustable nozzle on the sprayer, rinse the car to remove loose debris and grime.
2. Connect the foam cannon and foam the car from top to bottom.
3. Using a wash mitt for car soaked with detergent water, wipe the whole car. After each panel, rinse the wash mitt in clean water before working on another panel.
4. After the whole car is wiped, reattach the spray nozzle and rinse the car from top to bottom.

Cleaning and Maintenance

1. Remove the detergent bottle from the foam cannon and rinse the bottle with water to remove any detergent residue.
2. Fill the detergent bottle with water, then reinstall. Spray the full bottle of water through the foam cannon to clean any detergent residue from inside the foam cannon.
3. Remove the foam cannon from the trigger gun. Rinse the outside of the foam cannon and sprayer completely to remove any detergent residue. Allow all parts to dry completely before storage.

Service and Support

If your Aqua Joe AJ-SPXN Car Wash Sprayer + Foam Cannon requires service or maintenance, please call Snow Joe + Sun Joe customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model and Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the registration card. Copy these numbers into the space provided below.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download AquaJoe AJ-SPXN - 2-in-1 Foam Cannon + Sprayer Manual
