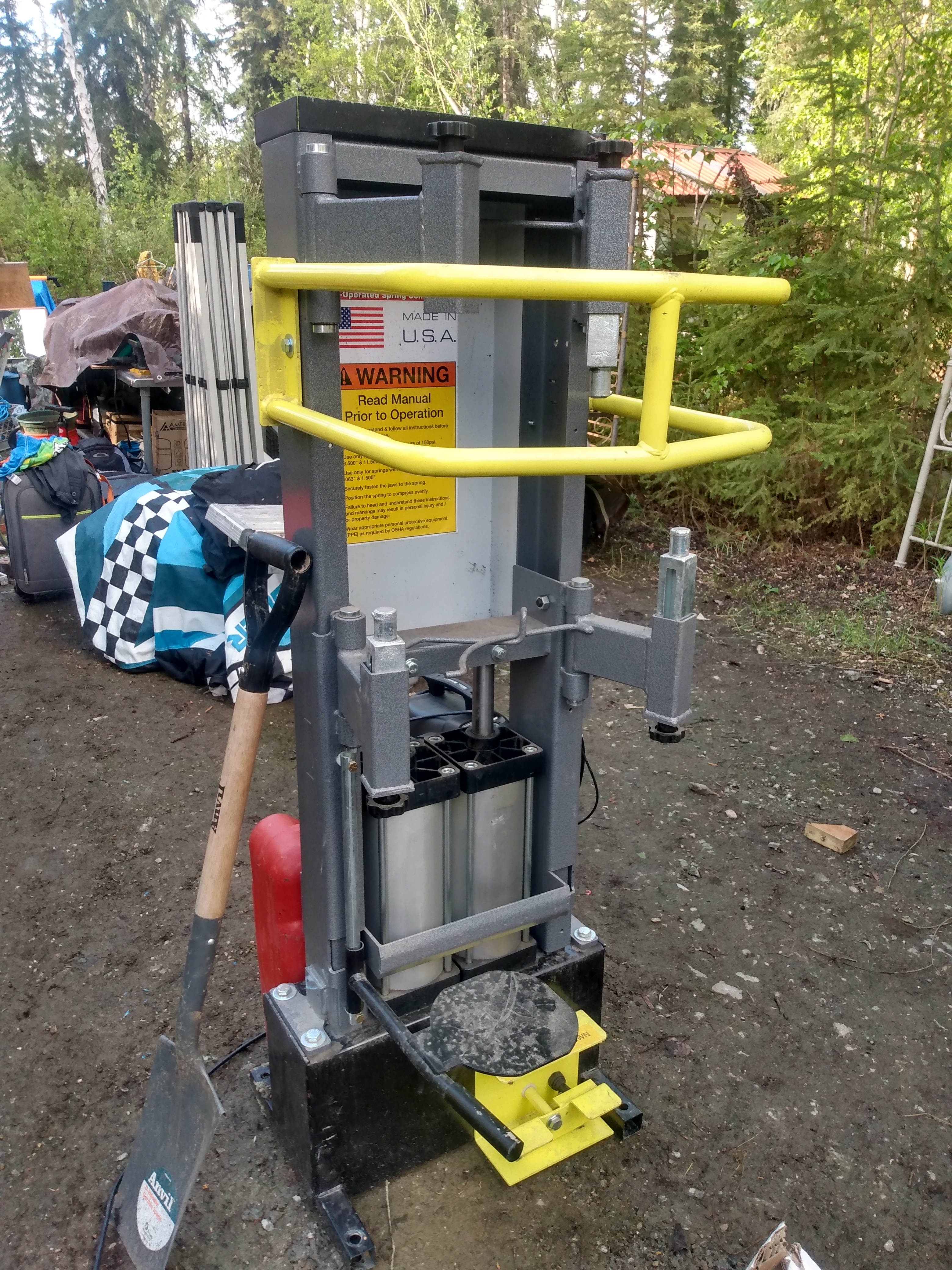

- Page 1 SC-4000 OPERATING INSTRUCTIONS This product complies to the ASME standard for Portable Automotive Service Equipment Quality Stainless Products 11515 Adie Road, Maryland Heights, MO 63043 www.QSPONLINE.com...
-
Page 2: Installation Instructions
SC-4000 : Operating Instructions INSTALLATION INSTRUCTIONS 1. Position the strut compressor in an adequately sized & well-lit area. 2. Level the unit & anchor to the floor according to local building codes using the provided holes. 3. Connect strut compressor to shop air with a maximum pressure of 150psi. -
Page 3: Safety Instructions
The SC-4000 features a safety valve that equalize air pressure & avoid an abrupt thrust. prevents operation if the safety cage is not Be watchful of pinch points on SC-4000 & strut lowered. assembly; keep extremities out of these areas... - Page 4 SC-4000 : Operating Instructions OPERATING INSTRUCTIONS Before operating your strut compressor, it is necessary to fully read and understand this instruction packet, & the safety instructions. It is also recommended to dry run the strut compressor before compressing a spring to become familiar with its operation and to help equalize air pressure in the system.
- Page 5 OPERATING INSTRUCTIONS (continued…) ***If using a Diamond Plate kit, skip to page 9*** The strut compressor ships with 2 single claw hooks & 2 double claw hooks that can be used in any position. When using all 4 hooks, the single claw hooks should be positioned according to the diagram below: !! WARNING !! INCORRECT claw positioning may result in equipment breakage, property damage, and / or injury.
-
Page 6: Troubleshooting
SC-4000 : Operating Instructions Correct hook engagement on spring coil. Incorrect engagement. !! CAUTION !! DO NOT position any body part directly above or below spring assembly to be compressed! Wear gloves and eye protection while operating unit! TROUBLESHOOTING SYMPTOM... - Page 7 REPLACEMENT PART DIAGRAM & PART NUMBER GUIDE PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION 8000-7 TWO FINGER CLAMP F-1/4 X 1/4NPT L 1/4 TUBE X 1/4 NPT ELBOW 8000-13 SINGLE FINGER CLAMP T-.156X16 K-NYL TUBE 5/32 OD NYLON TUBE – BLK DB-8000-070 ADJUSTING KNOB T-.250 PU BLACK TUBE...
- Page 8 SC-4000 : Operating Instructions PNEUMATIC SCHEMATIC STRUT ASSEMBLY LIMITATIONS The following parameters outline the most common spring dimensions that the strut compressor will accept. CYLINDER STROKE (spring compression)………………………………………………….……9 7/8” FINGER STROKE (clamp adjustment with knob)………………………………………….……..2 5/8” MAXIMUM DISTANCE BETWEEN UPPER & LOWER CLAMPS……………………….……12 1/2"...
- Page 9 INSTALLATION & USE OF DIAMOND PLATE KIT The optional diamond plate kit (PN: DP-4000) is used on heavy duty springs, or where the assembly is not able to be properly installed into the unit using the upper and lower claw hooks. WHILE HOLDING THE DIAMOND PLATE (ITEM #1) IN PLACE, ALIGN OPENING IN ITEM #2 WITH BOSS ON THE SHAFT OF THE VERTICAL...
- Page 10 SC-4000 : Operating Instructions INSTALLATION & USE OF DIAMOND PLATE KIT (continued…) The optional diamond plate kit (PN: DP-4000) is used on heavy duty springs, or where the assembly is not able to be properly installed into the unit using the upper and lower claw hooks.
-
Page 11: Warranty Information
WARRANTY INFORMATION Your SC-4000 Strut Compressor has been thoroughly tested and is guaranteed for a period of 18 months from the date of delivery. Under the terms of this guarantee, all components which are proven to be defective within the warranty period will be repaired or replaced free of charge. Our technical service assistance is the sole authority in determining whether or not defects come under the coverage of the guarantee. - Page 12 SC-4000 : Operating Instructions 11515 Adie Road Maryland Heights, MO 63043 888-473-5378 HTTP://WWW.QSPONLINE.COM Quality Stainless Products...
