Focal lengths using 40936 SDLv2 set to
lowest magnification
HR 66 - 900mm
HR 80 - 1200mm
ES 80 - 1000mm
ES 100 - 1350mm
GS 52 - 600mm
GS 665 - 800mm
MM3 50 - 600mm MM3 60 - 750mm
Focal lengths using 40935 SDL set to
HR 66 36x, HR 80 48x, ES 80 40x,
ES 100 54x, GS 52 24x, GS 665 32x,
MM3 50 24x, MM3 60 30x
to avoid distortions apparent at lower
magnification settings
HR 66 - 1800mm
HR 80 - 2400mm
ES 80 - 2000mm
ES 100 - 2700mm
GS 52 - 1200mm
GS 665 - 1600mm
MM3 50 - 1200mm MM3 60 - 1500mm
Focal lengths using SDL/SDLv2 and
41115 SLR EP Adapter (Magnification
factor 1.37x)
Zoom set to lowest magnification
HR 66 - 1230mm
HR 80 - 1640mm
ES 80 - 1370mm
ES 100 - 1850mm
GS 52 - 820mm
GS 665 - 1100mm
MM3 50 - 820mm
MM3 60 - 1030mm
For more information please contact:
Opticron, Unit 21, Titan Court,
Laporte Way, Luton, Beds LU4 8EF UK
Telephone: +44 (0)1582 726522
Email: sales@opticron.co.uk
41115 SLR • EP ADAPTER
41114

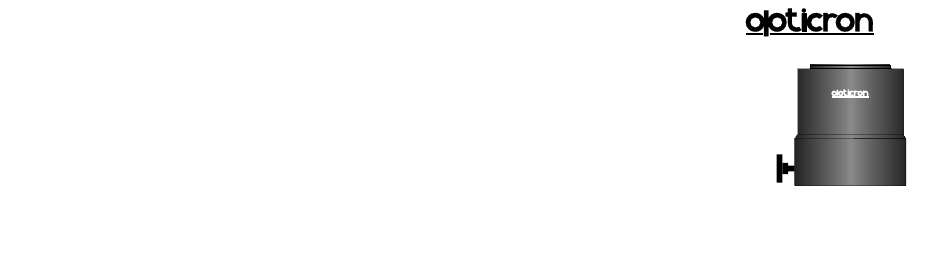

PHOTO ADAPTER SDL
41114
Photoadapter Push Fit SDL
User Guide
1114
Advertisement
Table of Contents
Related Manuals for Opticron 41114
Summary of Contents for Opticron 41114
- Page 1 For more information please contact: HR 66 - 1800mm HR 80 - 2400mm Opticron, Unit 21, Titan Court, ES 80 - 2000mm ES 100 - 2700mm Laporte Way, Luton, Beds LU4 8EF UK 41114...
- Page 2 Camera may need to be operated in manual mode with shutter locks optional 41115 SLR EP adapter. and push down until the internal The 41114 Photoadapter Push Fit SDL disengaged where necessary. Recommended for use with 40935 wall contacts with the end of the The high magnification to aperture ratios connects HR, ES, GS &...
