Summary of Contents for Super Vac V18-EX

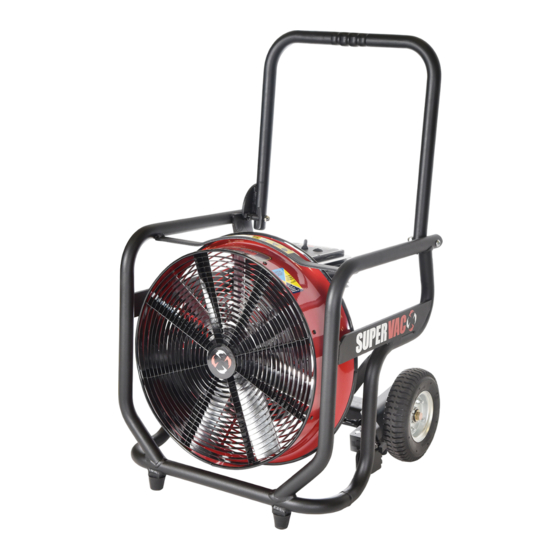

- Page 1 READ THIS F IRST VENTILATOR USER GUIDE MODEL V18-EX...
-
Page 3: Table Of Contents
POSITIVE PRESSURE VENTILATOR USER GUIDE This manual covers the description, cautions, operation, and maintenance of the Super Vac V18-EX. Read this manual before operating the ventilator. Save this guide for future reference. CONTENTS 1. BREAKAGE OR DAMAGE DURING SHIPMENT......................2. GENERAL DESCRIPTION AND SPECIFICATIONS....................... -
Page 4: Breakage Or Damage During Shipment
These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these damaged goods, your claim may not be paid. V18-EX PPV User Guide Revised 11-2022... -
Page 5: General Description And Specifications
Specifications are subject to change without notification. Refer to model decal affixed to ventilator to determine actual specifications. This ventilator is designed for high powered air movement. Super Vac’s propeller produces a greater intake of air and eliminates turbulence at the tips. Each blade is dynamically balanced for high efficiency and long life. -
Page 6: Before Operating Ventilator
Place ventilator in desired location. Use caution not to direct toxic fumes into confined spaces with the ventilator. Please refer to the Super Vac Training Manual for Smoke Ventilation for comprehensive instruction on effective ventilation practices. Insert power cord plug into 115V AC power receptacle to begin ventilation. -
Page 7: Maintenance And Repair
Minimum Wire Gauge Maximum Cable Length 2000 150 ft 4000 250 ft 6000 350 ft * Multiple units powered by one extension cord ** Minimum running wattage for multiple units. Startup amerage draw is much higher. V18-EX PPV User Guide Revised 11-2022... -
Page 8: Warranty
4. Any service other than our Authorized Service voids this warranty. 5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties of MERCHANTABILITY or FITNESS for a particular purpose. V18-EX PPV User Guide Revised 11-2022... -
Page 9: Contact Information
POSITIVE PRESSURE VENTILATOR 9. Contact Information For parts or service information, contact: Super Vacuum Manufacturing Company, Inc. 3842 Redman Dr. Fort Collins, CO 80524 Phone: 800-525-5224 970-297-7100 Fax: 970-297-7099 Email : info@supervac.com Internet: www.supervac.com V18-EX PPV User Guide Revised 11-2022... -
Page 10: Parts List
SWITCH, MOTOT, ON/OFF, E2,EXP PPV STD HARDWARE-111 SCREW,BHSH,3/8-16x3-1/2,SS STD HARDWARE W24 WASHER,FLAT,USS, 5/16”, SS 034-10981 NUT,NYLOCK, 10-24 UNC,SS 017-14999 BUSHING,1-1/4 OD,1 INCH,718, V-18 STD HARDWARE-HHCS-11 SCREW,HH,1/4-20x2,SS 018-10396 SHROUD, 18” W/GUARD-PAINTED STD HARDWARE-HHCS-234 SCREW,HH,5/16-24x1-1/4,SS 012-00018 GUARD,FRONT,FAN,718 V18-EX PPV User Guide Revised 11-2022... -
Page 11: Exploded View
POSITIVE PRESSURE VENTILATOR 11. Exploded View V18-EX PPV User Guide Revised 11-2022...
