Summary of Contents for Super Vac V20-GB

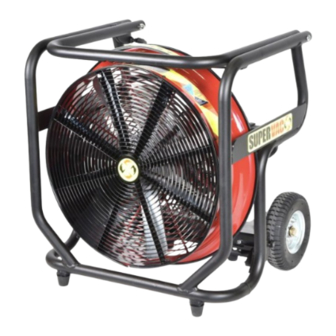

- Page 1 READ THIS F IRST VENTILATOR USER GUIDE MODEL V20-GB...
-
Page 3: Table Of Contents
POSITIVE PRESSURE VENTILATOR USER GUIDE This manual covers the description, cautions, operation, and maintenance of the Super Vac V20-GB. Read this manual before operating the ventilator. Save this guide for future reference. CONTENTS 1. BREAKAGE OR DAMAGE DURING SHIPMENT......................2. GENERAL DESCRIPTION AND SPECIFICATIONS....................... -
Page 4: Breakage Or Damage During Shipment
These damaged goods, of course, will belong to them, and they will inform you what to do with them. If you dispose of these damaged goods, your claim may not be paid. V20-GB PPV User Guide Revised 11-2022... -
Page 5: General Description And Specifications
AMCA PPV Standard 240-95, for use in extreme conditions. This ventilator is designed for high powered air movement. Super Vac’s propeller produces a greater intake of air and eliminates turbulence at the tips. Each blade is dynamically balanced for high efficiency and long life. -
Page 6: Before Operating Ventilator
Refer to the BRIGGS & STRATTON ENGINE Owner’s Manual for additional information showing locations of engine control features and positions. Use caution not to direct toxic fumes into confined spaces with the ventilator. Please refer to the Super Vac Training Manual for Smoke Ventilation for comprehensive instruction on effective ventilation practices. -
Page 7: Starting The Engine
Return starter grip gently to the recoiled position. Stopping the Engine 1. Move throttle lever to the SLOW position. 2. Turn engine switch to the OFF position. 3. Turn the fuel valve lever to the OFF position. V20-GB PPV User Guide Revised 11-2022... -
Page 8: Maintenance And Repair
Every 100 Hours Every Year Check Level Engine Oil Change Check Air Filter Clean Replace Clean Gap Spark Plug Replace Fuel Tank Clean Sediment Cup Fuel Line Check See parts list for replacement part numbers. V20-GB PPV User Guide Revised 11-2022... -
Page 9: Troubleshooting
POSITIVE PRESSURE VENTILATOR 7. Troubleshooting Common causes of engine overheating: • Insufficient unobstructed distance on exhaust side of ventilator. Please refer to the Super Vac Training Manual for Smoke Ventilation for recommended ventilator placement. • Incorrect octane fuel - too low octane... -
Page 10: Warranty
4. Any service other than our Authorized Service voids this warranty. 5. This warranty is in lieu of and is intended to exclude all other warranties, express or implied, oral or written, including any warranties of MERCHANTABILITY or FITNESS for a particular purpose. V20-GB PPV User Guide Revised 11-2022... -
Page 11: Contact Information
POSITIVE PRESSURE VENTILATOR 9. Contact Information For parts or service information, contact: Super Vacuum Manufacturing Company, Inc. 3842 Redman Dr. Fort Collins, CO 80524 Phone: 800-525-5224 970-297-7100 Fax: 970-297-7099 Email : info@supervac.com Internet: www.supervac.com V20-GB PPV User Guide Revised 11-2022... -
Page 12: Parts List
SPRING, COMPRESSION, TILT LEVER 017-14999 BUSHING,1-1/4 OD,1 INCH,718, V-18 STD HARDWARE-111 SCREW,BHSH,3/8-16x3-1/2,SS 008-10174 DISC,SHROUD SPACER,718-720, V-18 034-10981 NUT,NYLOCK, 10-24 UNC,SS 018-10336 SHROUD, 20” W/GUARD-PAINTED STD HARDWARE-HHCS-11 SCREW,HH,1/4-20x2,SS 012-10281 GUARD,FRONT,FAN,V-20 STD HARDWARE-HHCS-234 SCREW,HH,5/16-24x1-1/4,SS STD HARDWARE--57 SCREW,PHP,10-24 UNCx0.5 V20-GB PPV User Guide Revised 11-2022... -
Page 13: Exploded View
POSITIVE PRESSURE VENTILATOR 11. Exploded View V20-GB PPV User Guide Revised 11-2022...
