Summary of Contents for KETELESE K800
- Page 1 www.keteles.us E-BIKE USER MANUAL ATTENTION Please read this manual carefully before using the lankeleisi elec- tric bicycle. If you do not understand this information, or if you do not cover the issues covered in this manual, please contact the dealer.
- Page 2 KETELES K800 User Manual...
- Page 5 The Carton of the E-bike. Open the Carton Take the bike and accessories out Remove the packing EPE pearl cotton...
- Page 6 Turn the stem forward. Do not turn the whole fork. The fork brace should be facing forward. Remove the 4 bolts...
- Page 7 Fit the stem and handlebar together Tighten the 4 bolts that hold the handlebar...
- Page 8 Tighten the bolts on the other side Handlebar installation completed The Seat Post Clamp...
- Page 9 Open the lever and turn the nut to loose seat post Insert the seat post into the seat tube. clamp Lock the clamp lever tightly Saddle installation completed...
- Page 10 Turn the bike upside down The fork spacer and brake caliper spacer Remove the fork spacer. ( it is not a part of the Put the front wheel on the fork. bike )
- Page 11 The axle of the motor goes into the grooves of the fork.
- Page 12 Put the washers in the right places. Tighten the nuts on both sides...
- Page 13 Connect the inline connectors of front motor cable Front wheel installation completed...
- Page 14 The pedal with letter L should be fixed on the left Turn spanner counter-clockwise to fix the pedal L The pedal with letter R should be fixed on the right Turn the spanner clockwise to fix the pedal R...
- Page 15 Fix Headlight and fender to the fork brace Fix rear fender and rear rack to the frame Tighten the two upper bolts on both sides...
- Page 16 Tighten the two lower bolts on both sides Fenders and Rear Rack installation completed Ready to install the battery...

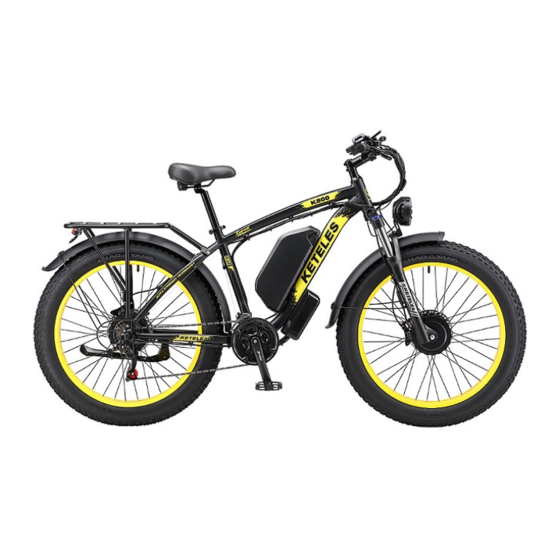

- Page 17 Push the battery downward and lock it Assembly job completed Side view of the completed e-bike The charging port and the battery ON-OFF switch...
- Page 18 Turn on the battery first and then press this button The Red switch can turn on or turn off front for 3 seconds to turn on the display motor The multifunctional color LCD display Press button can change speed grade .
- Page 19 Question 1: What does the display error code mean? What is the reason for it? Answer: Except for communication errors which are actively reported by the display, all other error codes on the display are reported to the display by the controller , and the display shows them. 1>...
- Page 20 YL-01 , YL-02 error code Error Code Failure part Error Code Failure part E001 Controller failure E004 Throttle failure E002 Communication failure E005 Brake lever failure E003 Hall sensor failure E006 Motor phase loss YL-05, KDS, YL-J error code Error Code Failure part Error Code Failure part...
- Page 23 KETELES BENFUTO TRADING CO., LTD French Office Add:50 BD STALINGRAD 06300 NICE FR Whats APP 1: +86 13632624062 Whats APP 2: +44 07355779889 W W W . K E T E L E S . U S...
