AG Neovo V-10 User Manual

Hide thumbs Also See for V-10:
Table of Contents

Advertisement

Quick Links

Download this manual
AG Neovo
Digital Photo Frame
V-10
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AG Neovo V-10

Summary of Contents for AG Neovo V-10

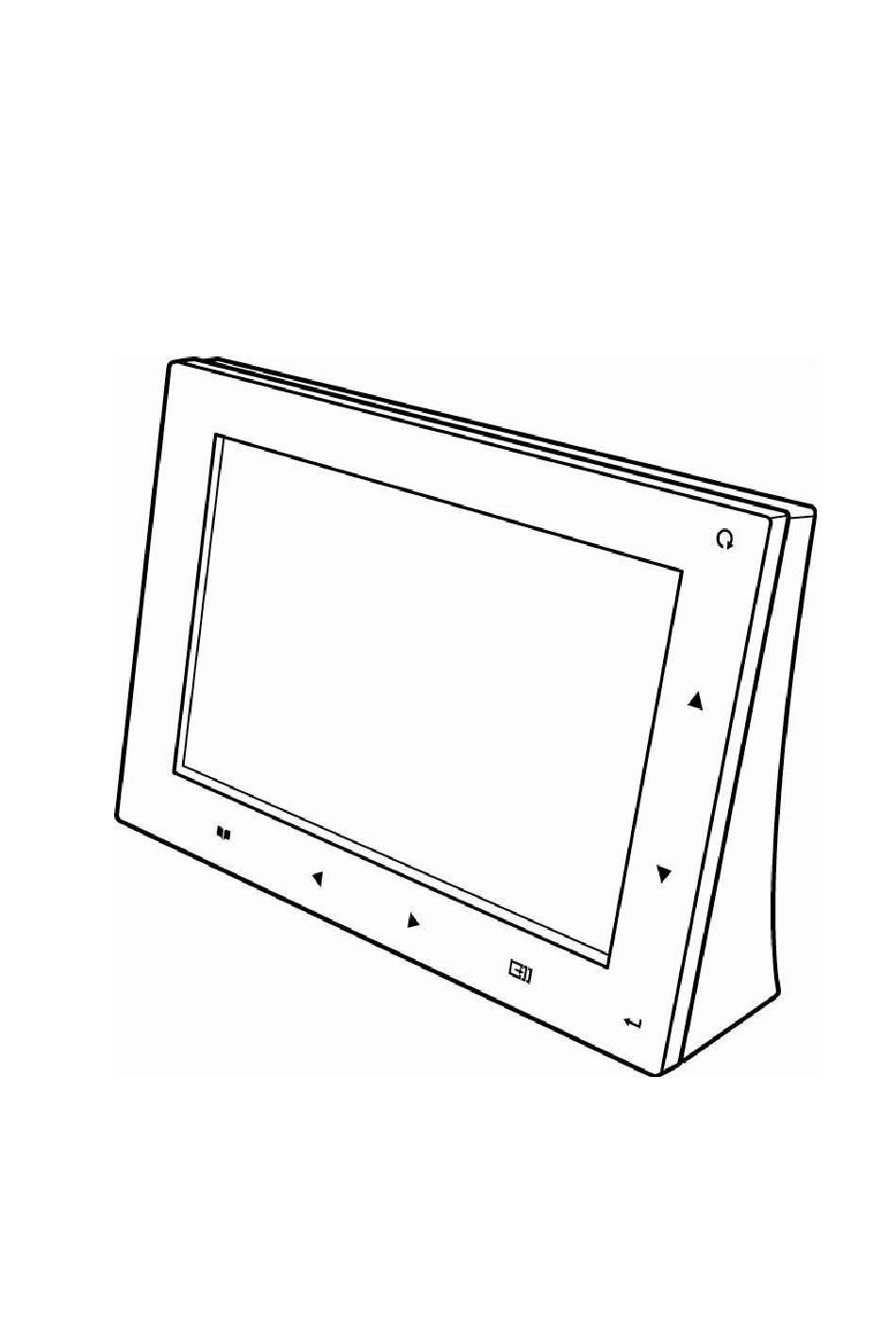

  • Page 1 AG Neovo Digital Photo Frame V-10 User Manual...

  • Page 2: Table Of Contents

    Chapter 3 Getting Started ..............4 3.1. Connecting the Power................4 3.1.1. Using the Rechargeable Battery............ 4 3.1.2. Turning On/Off the V-10 ..............5 3.2. Connecting to a Computer ..............6 3.2.1. Transferring Files................6 3.3. Inserting Memory Cards ................ 7 3.3.1.
  • Page 3 4.3.2. Brightness..................16 4.3.3. Language..................16 4.3.4. Date and Time ................18 4.3.5. Auto ON/OFF................19 4.3.6. Status................... 20 4.4. Slideshow Setting................. 21 4.4.1. Setting the Order ................. 21 4.4.2. Setting the Interval............... 23 4.4.3. Setting the Display Effect ............24 4.5.

  • Page 4: Chapter 1 Preface

    Thank you for purchasing our V-10. This manual provides you with instructions on how to use your V-10. Please read through this manual before using the V-10. Every effort has been made to ensure the contents on this manual are accurate and up to date.

  • Page 5: Safety Information

    Do not disassemble the V-10. There are no user-serviceable parts inside. Opening this product will void the warranty. • Do not use the V-10 near water and avoid spilling any liquids on it. • Keep the V-10 away from direct sunlight or heat source, as this may cause damage.

  • Page 6: Chapter 2 Introduction

    V-10 Quick Guide Power Adapter (Contains V-10 User Manual and other information) USB Cable...

  • Page 7: Features

    2.2.1. Front View Number Icon Function Description Press to rotate the currently displayed Rotate image. Press to move to the upper photo or option. Press to move to the lower picture or Down option. Press to confirm a selection while Enter browsing different menus and photos.

  • Page 8: Top View

    Top View Number Name Description Use to power on / off the V-10. Power button When the V-10 is turned off, the Power button becomes the Reset button. Three-in-One SD / MMC / MS card slot. card slot Two-in-One CF / MD card slot.

  • Page 9: Chapter 3 Getting Started

    2 months.. Charge the battery for at least 6 hours for a full charge when the V-10 is in use. Charge the battery for at least 3 hours for a full charge when the V-10 is not in use.

  • Page 10: Turning On/Off The V-10

    3.1.2. Turning On/Off the V-10 To turn on V-10, follow the steps below: 1. Slightly raise the top cover and slide it open. 2. Press the power button to boot the V-10. While booting up the V-10, the product information is displayed on the LCD screen.

  • Page 11: Connecting To A Computer

    1. Insert the memory card into the appropriate memory slot as described in Inserting Memory Cards on page 7. 2. Connect the V-10 to the computer as described in Connecting to a Computer on page 6. 3. Turn the V-10 on.

  • Page 12: Inserting Memory Cards

    Do not insert or remove any memory card when the V-10 is connected to the computer. This may damage the card. Do not insert a deformed memory card into the V-10 or the card slot may be damaged. Make sure the memory cards are inserted correctly.

  • Page 13: Compatible Memory Cards

    3.3.1. Compatible Memory Cards There are two card slots on the V-10, which support five different card types. Insert the memory cards into the appropriate slot as described below. Make sure the memory cards are inserted correctly without forcing them inside.

  • Page 14: Chapter 4 Using The V-10

    4.1.1. Selecting the Storage Interface After entering the Browse Photo menu as described above, there are three different storage media to select: 1. My Favorite : The built-in Flash Memory of V-10 2. SD/MMC/MS : Three-in-One card slot 3. CF/MD : Two-in-One card slot The memory source in use is highlighted in orange.

  • Page 15: Notifications On Card Selecting

    4.1.2. Notifications on Card Selecting The most recently inserted card will take priority. a. If no memory card is inserted, My Favorite folder will be highlighted orange after entering Browse Photo option. b. Followed above, if either a SD/MMC/MS card is inserted, the SD/MMC/MS option will be highlighted orange immediately.

  • Page 16: Browse Photo

    4.1.3. Browse Photo Select your memory source and press , photos stored on the selected card are shown as thumbnails, with six thumbnails in per page. Number Name Description Indicates the current menu. Displays for about 5 Current Menu seconds. Memory Source Indicates which storage type you are using now.
  • Page 17 Previous 4.1.3.2. Slide Show The slide show starts automatically when the V-10 is turned on. The V-10 detects the memory source and starts the slide show automatically. Press to go to the Main Manu. While browsing photos in Thumbnail mode or Browse mode, press start the slide show automatically.
  • Page 18 4.1.3.3. Browse a Photo If you wish to view a select thumbnail in Browse mode, press to display the photo. Also, press ▲/▼/◄/► buttons to move to the previous or the next photo. Down Enter Previous Next 4.1.3.4. Rotate a Photo While browsing a photo, you can press button to rotate a photo.

  • Page 19: Calendar And Clock

    Use this function to use the V-10 as a digital desktop calendar and clock. To enter Calendar & Clock menu: 1. Turn on the V-10 and press to enter the Main Menu. 2. Press ▲ or ▼ to select Calendar & Clock option, and press display the calendar and clock.

  • Page 20: Setup Menu

    2. Press ▲ or ▼ to select Setup Menu and press to enter. 4.3.1. Screen Size Use this function to adjust the aspect ratio of the V-10. To change the Screen Size 1. Enter Setup Menu as described above and press ▲...

  • Page 21: Brightness

    3. Press ◄ or ► to adjust the level of brightness. 4. Press to confirm and exit the setting. 4.3.3. Language Use this function to select a language for all menus while setting the V-10. The default setting for language is English. To change the Language setting:...
  • Page 22 1. Enter Setup Menu as described on page 15 and press ▲ or ▼ to select Language . The current setting is highlighted in black. 2. Press ► to enter the submenu options and press ▲ or ▼ to select the desired language.

  • Page 23: Date And Time

    4.3.4. Date and Time Use this function to set the date and time on the V-10. To adjust the Date & Time setting: 1. Enter Setup Menu as described on page 15 and press ▲ or ▼ to select Date & Time 2.

  • Page 24: Auto On/Off

    4.3.5. Auto ON/OFF Use this function to automatically power on / off the V-10 at a specified time. To set Auto On/Off 1. Enter Setup Menu as described on page 15 and press ▲ or ▼ to select Auto ON/OFF 2.

  • Page 25: Status

    If both Auto ON and Auto OFF are disabled, do the steps above twice to enable both functions. 4.3.6. Status Select this item to show the battery status and available free memory. To check the V-10 Status 1. Enter Setup Menu as described on page 15 and press ▲ or ▼ to select Status 2.

  • Page 26: Slideshow Setting

    To enter Slideshow Setting menu: 1. Turn on the V-10 and press to enter Main Menu. 2. Press ▲ or ▼ to select Slideshow Setting , and press to enter.
  • Page 27 2. Press ► to enter the submenu and press ▲ or ▼ to select from Sequential or Random. The new selection is highlighted in orange. 3. Press to confirm and exit slideshow settings. The current setting is highlighted in black.

  • Page 28: Setting The Interval

    4.4.2. Setting the Interval Use this function to set the slide show time interval. To set the Interval 1. Enter the Slideshow Setting menu as described on page 21 and press ▲ or ▼ select Interval . The current setting is highlighted in black.

  • Page 29: Setting The Display Effect

    3. Press to confirm and exit the setting. The current setting is highlighted in black. 4.4.3. Setting the Display Effect Use this function to set the slide show effect. To set the Show Effect 1. Enter the Slideshow Setting menu as described on page 21 and press ▲...
  • Page 30 2. Press ► to enter the submenu and select from Off, Fade, Shutter, Cross Comb, Mask, Brick, Dissolve, Bar or Random. The new selection is highlighted in orange. 3. Press to confirm and exit the setting. The current setting is highlighted in black.

  • Page 31: File Management

    To enter the File Management menu: 1. Turn on the V-10 and press to enter the Main Menu. 2. Press ▲ or ▼ to select File Management, and press to enter.
  • Page 32 3. Press to show the submenu. 4. Press▲ or ▼ to select from Browse or Delete. Select Browse and press to start browsing photos. 5. Select Delete and press ► to enter submenu. Press ▲ or ▼ to select from Yes or No. 6.

  • Page 33: Managing Files In Memory Cards

    4.5.2. Managing Files in memory cards 1. Enter File Management as described on page 26 and press display thumbnails of the selected memory source. 2. Press ▲/▼/◄/► to select a photo from the thumbnail. 3. Press to show the submenu. 4.
  • Page 34 5. Select Add to My Favorite and press ► to enter the submenu. Press ▲ or ▼ to select from Yes or No. Select Yes and the select file will be added to My Favorite. Select No to exit the submenu. 6.

  • Page 35: Chapter 5 Help

    Please note the following tips when using the AG Neovo V-10 and make sure that you follow all the operating instructions in this manual. • The memory cards and built-in memory use the same data bus when the V-10 is connected to the computer. To prevent risk of damage to...

  • Page 36: Chapter 6 Appendix

    Item Description Panel Size 7” TFT LCD Screen Resolution 800 x 480 pixels Pixel Pitch 0.1905 x 0.1905 mm JPEG Support Image Format Up to 8K x 8K pixels Windows 2000 XP or later Plug & Play Capability Mac OX X or later Internal Memory Size 128 MB Memory Card Slot...

  • Page 37: Regulatory Information

    6.2.1. FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 38: Weee

    6.2.3. WEEE Information for users applicable in European Union countries The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources.
