Summary of Contents for PLC PLC220-12M

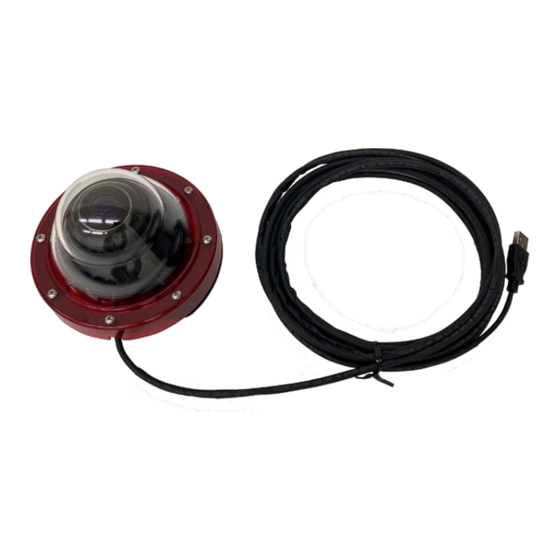

- Page 1 PLC Viewer - Instruction Manual Instruction Manual Rev. 1.1 2023/4/20 Rooftop type 360° Panorama Camera PLC220-12M A application software for high-resolution fisheye images, dewarping shooting, and playback PLCViewer...
-
Page 2: Table Of Contents
PLC Viewer - Instruction Manual Contents GENERAL ......................3 CONSTITUTION ....................3 INSTALL AND UNINSTALL ..................3 START AND EXIT ....................3 NAMES AND FUNCTIONS OF OPERATION PANEL ............. 5 5.1. [CAMERA] SCREEN ..................5 5.1.1. Display Live View ..................7 5.1.2. -
Page 3: General
PLC Viewer - Instruction Manual General PLC Viewer is a Windows software that allows you to view the live video through the PLC220- 12M rooftop type 360-degree panorama camera. It can shoot the omnidirection images, dewarp the fisheye image, record the live view, save still images, and playback recorded videos/still images with dewarping. - Page 4 PLC Viewer - Instruction Manual (2) Exit PLCViewer There are the following methods to exit the PLCViewer. When you exit the PLCViewer, all playback and recording operations that are being performed at that time will also be terminated. Method 1: Click [X] in the upper right to exit the PLCViewer. The setting information at this time is not newly saved.
-
Page 5: Names And Functions Of Operation Panel
PLC Viewer - Instruction Manual Names and functions of Operation Panel [Camera] screen 5.1. When you start PLCViewer, the following operation panel will be displayed. With the camera tab clicked, the following screen for shooting live video will be displayed. - Page 6 PLC Viewer - Instruction Manual Label Name Function Live Shoot button Click the button to display live video. The button changes to ⑨ [Stop] while shooting. Clicking [Stop] stops shooting and the button returns to [Live]. Fisheye／ Display mode Fisheye: a fisheye 360° view is displayed.
-
Page 7: Display Live View
① Click ▼ on the right of the device selection area and select the camera to shoot from the pull- down menu. Select "PLC220-12M" as the 360-degree camera for the car. ② Click the ▼ on the right of the resolution setting area and select the resolution from the pull-down menu. - Page 8 PLC Viewer - Instruction Manual (2) Dewarping of Live View The displayed live image can be panned, tilted, zoomed, rolled, expanded, sub-screen displayed, image reversed, preset, etc. by operating each of ⑩⑪⑫⑮⑯ buttons while “shooting” or “pausing”. ※ Panning, tilting, zooming, and rolling can be performed with a mouse on the video screen for better operability.
- Page 9 PLC Viewer - Instruction Manual (３) Sub-screen Click [□Small] (⑮) to enter ☑, and the fisheye image will be displayed as a sub-screen on the upper left of the screen. If you click the button again, the sub- screen disappears, the check is removed, and the box returns to □.
-
Page 10: Recording Live Videos And Saving Still Images
PLC Viewer - Instruction Manual (５) Preset You can register up to 9 patterns of image display information (dewarp mode, pan/tilt/zoom/roll values, sub-screen display, image flip status) as preset values. The memorized image display information can be reproduced at the push of a button. - Page 11 PLC Viewer - Instruction Manual To end the recording, click [AVI record]（⑤）again (the check is removed) or click [Stop] （⑨）to stop the video display. ④ ⑨ ⑤ The recorded video will be saved as an AVI file as a fisheye image, which is the raw video ...
- Page 12 PLC Viewer - Instruction Manual For still images to be saved, the image displayed in the image display area is saved as a BMP file. The file name is "Year/Month/Day_Hour/Minute/ Second_Millisecond.BMP" ※ If the dewarped image is displayed, the image to be saved is also the dewarped image.
-
Page 13: Movie] Playback Screen
PLC Viewer - Instruction Manual [Movie] playback screen 5.2. Clicking the [Movie] tab（③）displays the screen for playing the recorded video. ③ ㉗ ㉖ ㉓ ㉔ ㉕ ㉙ ㉘ ㉚ ⑩ ⑲ ⑫ ⑪ ⑯ ⑮ ⑱ The names and functions of each part are shown in the table below. -
Page 14: Playback Of Recorded Video
PLC Viewer - Instruction Manual □Repeat Repeat button If you click the button, a ☑ check will be entered and the repeat ㉘ playback mode will be entered. If you click again, the □ check will be removed and the playback will not be repeated. - Page 15 PLC Viewer - Instruction Manual (2) Dewarping of Live View The displayed live image can be panned, tilted, zoomed, rolled, expanded, sub-screen displayed, image reversed, preset, etc. by operating each of ⑩⑪⑫⑮⑯ buttons while “shooting” or “pausing”. ※ Panning, tilting, zooming, and rolling can be performed with a mouse on the video screen for better operability.
-
Page 16: Save In A Still Image From The Recorded Video
PLC Viewer - Instruction Manual 5.2.2. Save in a still image from the recorded video If [BMP] (⑱) is clicked while playing back or pausing a recorded video, one displayed image will be saved as a still image. For still images to be saved, the image displayed in the image display area is saved as a ... -
Page 17: Picture] Playback Screen
PLC Viewer - Instruction Manual [Picture] playback screen 5.3. Click the [Picture] tab（④）to display the screen for playing back the recorded still image. ④ ㉛ ㉜ ⑩ ⑲ ⑫ ⑪ ⑯ ⑮ ⑱ The names and functions of each part are shown in the table below. -
Page 18: Version
PLC Viewer - Instruction Manual (2) Dewarping of Live View The playing back image can be panned, tilted, zoomed, rolled, expanded, sub-screen displayed, image reversed, preset, etc. by operating each of ⑩⑪⑫⑮⑯ buttons while “shooting” or “pausing”. As the operation is the same, please refer to 5.2.1.
