Taylor Hobson Surtronic Duo Manual

Error codes
The following error codes may appear on the
display during the course of using the Duo
Instrument. Before returning an instrument,
ensure that the batteries are not low.
E=1.
Infra Red communication error - Repeat
operation .
E=2. Measurement attempted when not
calibrated. Calibrate the TU
E=3.
Traverse Unit - Oscillator fault - If fault is
persistent, return to a Taylor Hobson Service
Centre.
E=4. Traverse Unit - Motor Positioning fault - If
fault is persistent, return to a Taylor Hobson
Service Centre.
E=5.
Traverse Unit - NVRAM Error - If fault is
persistent, return to a Taylor Hobson Service
Centre. NVRAM
E=6.
Traverse Unit - Profile Over-range.
Re-attempt measurement.
E=7.
Traverse Unit - Parameter Over-range.
Re-attempt measurement.
E=8.
Traverse Unit - Motor Speed Setup error.
Re-attempt Setup procedur
E=9.
Traverse Unit - Gain Setup error.
Re-attempt Setup procedure.
E=10.
Control Unit - Oscillator fault - If fault is
persistent, return to a Taylor Hobson Service
Centre.
E=11.
Traverse Unit - Calibration information
download error. Try again.
E=12.
Traverse Unit - Not set up. Run the
Setup procedure.
E=13.
<Reserved>
E=14.
: Traverse Unit - Electronic Measure-
ment error - If fault is persistent, return to a
Taylor Hobson Service Centre.
Declaration of Conformity
Manufacturer's Name: Taylor Hobson Limited
Manufacturer's Address: 2 New Star Road, Leicester, England, LE4 9JQ
It is declared that the product: Surtronic Duo
Marketing CHINA:TEL:86 (010) 82951585 82946733 FAX:86 010 58859230
Conforms to all applicable requirements of BS EN 50081-1:1992, BS EN 50082-1:1998 and
BS EN 61010:2001.
The above product complies with the requirements of the EMC Directive 89/336/EEC as amended.
The above product complies with the requirements of the EMC Directive 73/23/EEC as amended.
Specification
Traverse length.
5mm (0.2in)
Measurement length.
4mm (0.16in)
Traverse speed.
2mm/s (0.08in/s)
Gauge range.
200μm (8000μin)
Gauge resolution.
0.05μm (2μin)
Display resolution:Ra.
0.01μm (0.4μin)
Display resolution: Rz, Rt*, Rp*, Rv*.
0.1μm (1μin)
Cut off.
0.8mm (0.03in) +/- 15%
Uncertainty.
0.1μm (4μin) or 5% of
result, to 95% confidence level
Results range:Ra.
40μm (1600μin),
see ISO 4288-1996
Results range: Rz, Rt*, Rp*, Rv*.
199.9μm (8000μin), see ISO 4288-1996
Stylus. Diamond, radius 5μm nominal , 90
angle, skid radius: 10mm nominal.
Filter type:
2CR, (200:1)
Sample spacing:
1um
Stylus Force. 10mN (1gf) max at mid range
Batteries.
Control Unit: One x 3V Lithium
2450. Traverse Unit: Three x 3V Lithium 2450
μm or μin
Units.
o
Operating conditions.
10 to 35 C,
80%RH non-condensing
Size.
125mm x 80mm x 38mm
(4.92in x 3.15in x 1.5in)
Weight.
200g (7oz)
*5 parameter model only.
112-2916 (2 parameter model) and 112-3115 (5 parameter model)

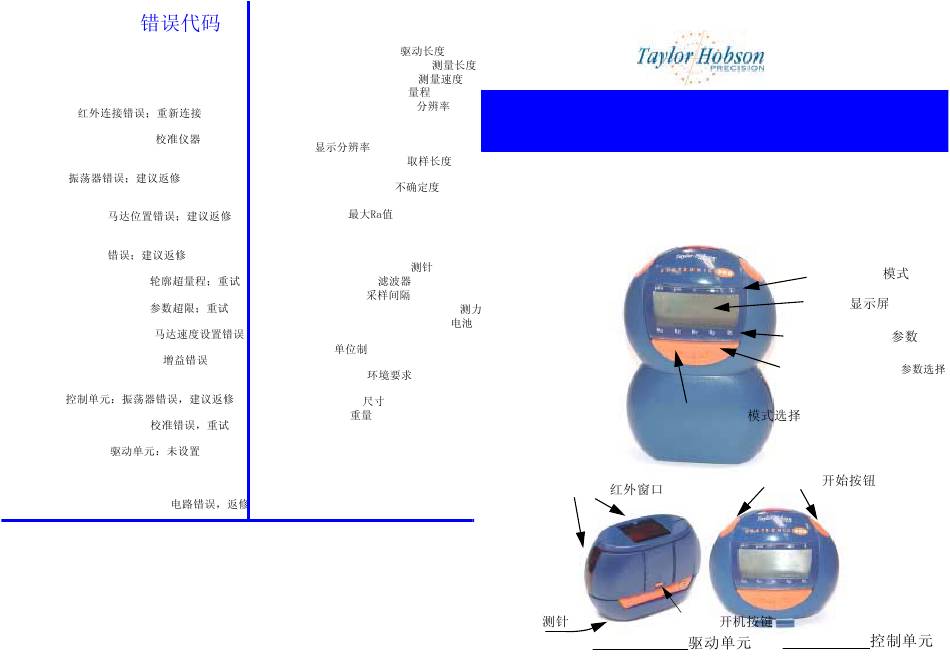

Operator's Leaflet K505-54
o
tip
IrDA windows
Stylus
Traverse Unit
Surtronic Duo
Issue 1.1 January 2002
Leicester, England
www.taylor-hobson.com
Display
Parameter status
Parameter Selector
Mode selector
Start buttons
On button
Control Unit
Mode status
