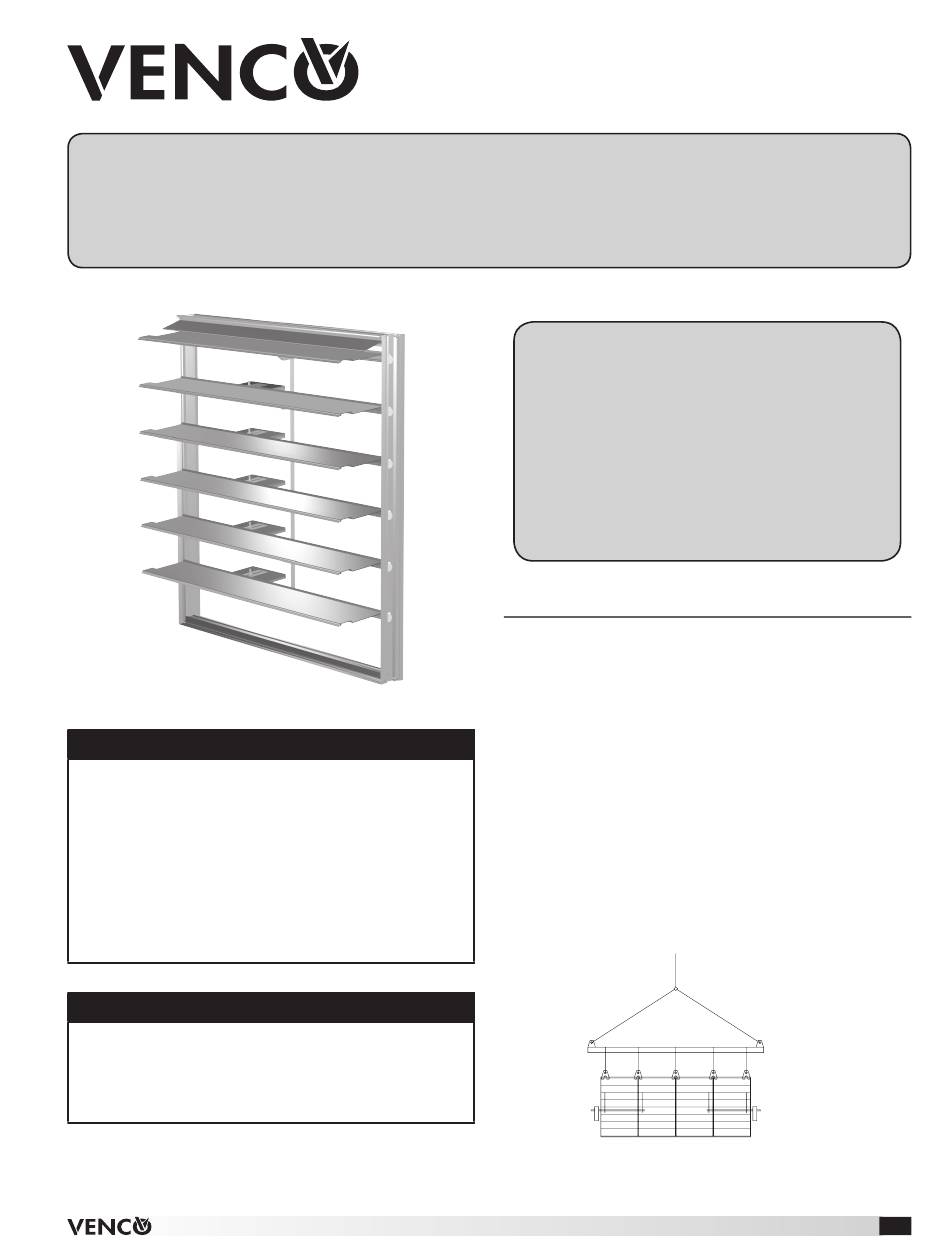

VENCO ES Series Installation, Operation And Maintenance Manual

Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.
Receiving and Handling
Upon receiving dampers, check for both obvious
and hidden damage. If damage is found, record all
necessary information on the bill of lading and file
a claim with the final carrier. Check to be sure that
all parts of the shipment, including accessories, are
accounted for.
Dampers must be kept dry and clean. Indoor storage
and protection from dirt, dust and the weather is
highly recommended. Do not store at temperatures in
excess of 100°F (38°C).
Safety Warning
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death. Read the installation, operating, and
maintenance instructions thoroughly before installing
or servicing this equipment.
This manual is the property of the owner and is required
for future maintenance. Please leave it with the owner
when the jobs is complete.
Table of Contents

General Information ...................................... 2

Pre-Installation Guidelines .........................1-2

Counterbalance Adjustment ......................2-3
• EM/ES/GM-30, 31, 32 ........................... 2
• EM/ES-10, 11, 12 .................................. 3
• EM/ES-40, 41, 42 ...............................3-4
Multiple Section Assembly ........................... 4
Pre-Installation Guidelines
The basic intent of a proper installation is to secure the
backdraft damper into the opening in such a manner
as to prevent distortion and disruption of damper
operation. The following items will aid in completing the
damper installation in a timely and effective manner.
1) Check the schedules for proper damper locations
within the building. Visually inspect the damper for
damage.
2) Lift or handle damper using sleeve or frame. Do
not lift damper using blades, linkage, actuators,
or jackshafting. When handling multiple sections
assemblies, use sufficient support to evenly lift at
each section mullion (see drawing). Do not drag, step
on, apply excessive bending, twisting, or racking.
3) Do not install screws in damper frame that will
Multi section dampers
interfere with unexposed blade linkage and prevent
damper blades from opening and/or closing.
Document 483513
ES, EM, & GM Series
Spreader Bar
Attachments
ES EM GM Series 1
